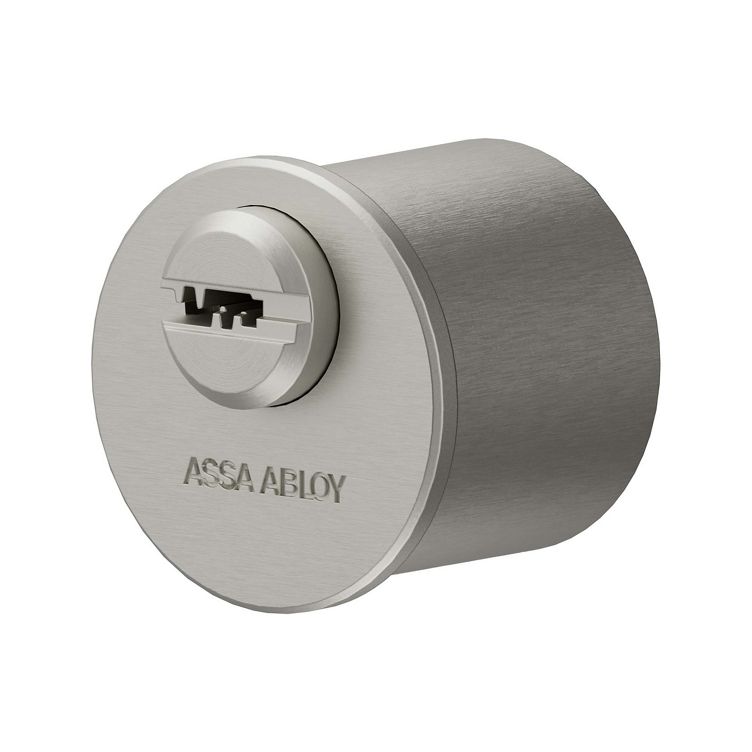

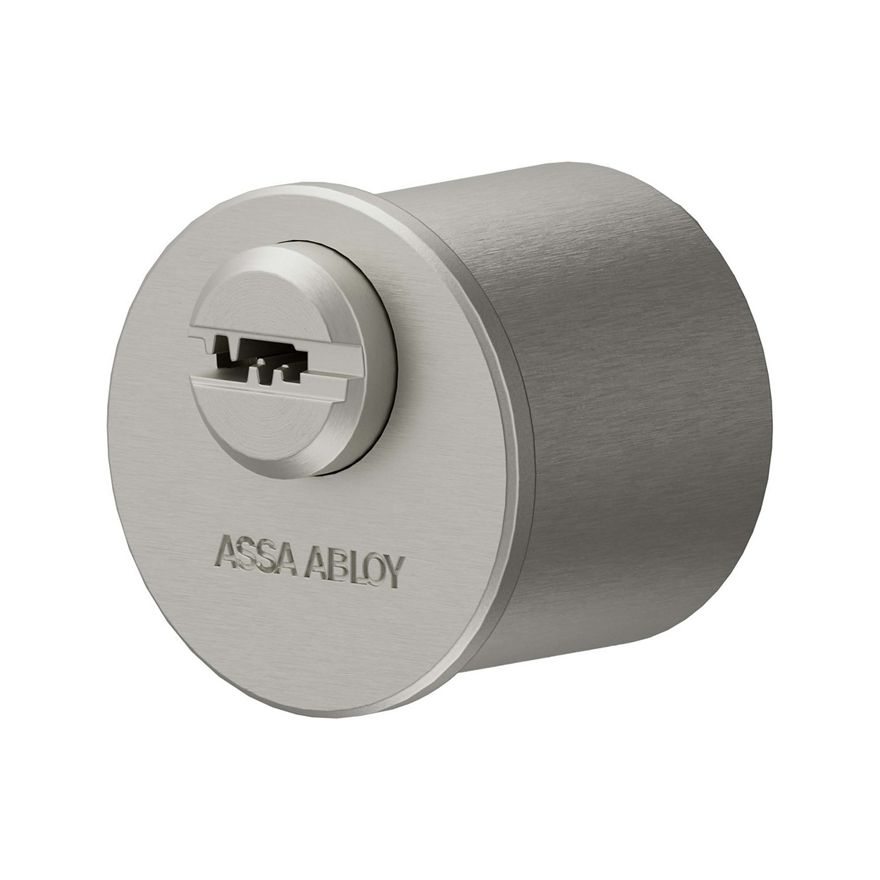

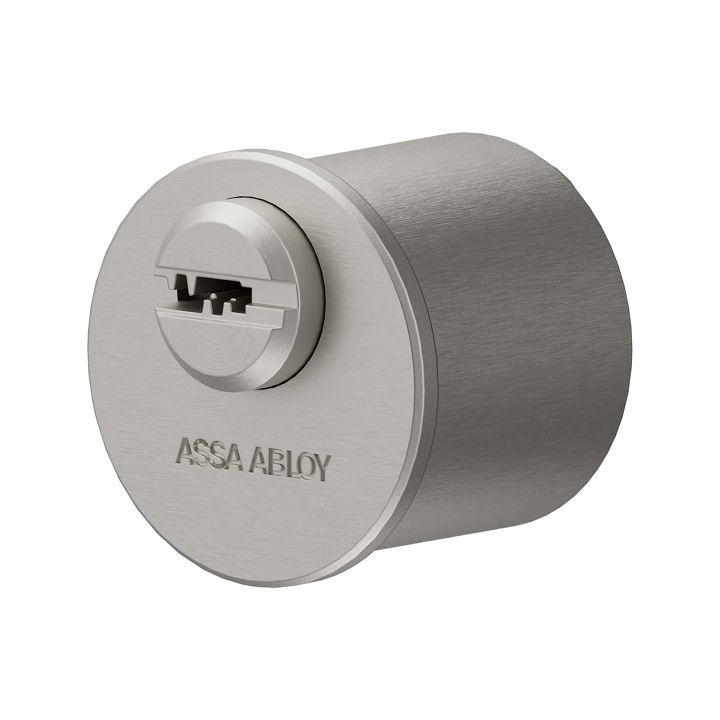

CY100 rim cylinder

  • Residential

Secure entrances while at the same time, enabling anyone inside to make an easy exit.

The CY100 rim cylinder can be used with night latches or other locking devices which are operated from a tailbar.


Applications:

  • External doors
  • Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

  • Mechanical-Cylinders_Technical-Catalogue(PDF, 12 MB)

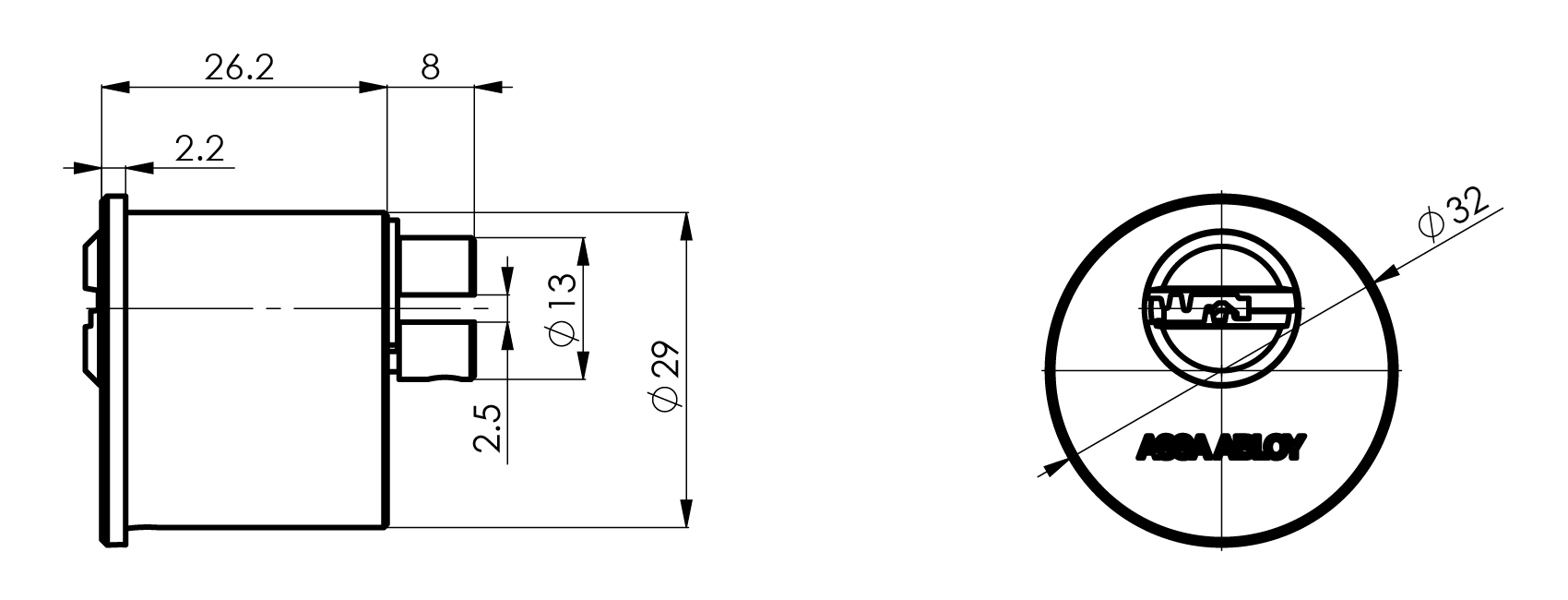

  • Technical Drawings
  • Rim_Cam(JPG, 103 KB)
FeatureDetail
Attack resistanceAnti-pick | Anti-drill ‒ 5 minutes' drilling resistance | Anti-pull ‒ 15 kN pulling resistance | Anti-bump (only for KA and KD) | Anti-snap (optional)
Number of keysMKS and KA: according to order | KD: 3
Max. number of effective key differs101,000
Max. number of MKS profiles4
Number of pins6
Raw materialBrass
FinishSatin nickel
Tailbar length53 mm
Weight175 g
