DC700G-CO-FT
Security door closer with Cam-Motion® technology, integrated latch bolt, escape door strike and mechanical door coordinator – for double leaf doors, size 3-6
The DC700 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. The rapidly decreasing opening force of Cam-Motion technology ensures doors open with less effort. The latch bolt is integrated into the extended mounting plate. The escape door strike and mechanical door coordinator are integrated into the extended guide rail.
- Certified in compliance with EN 1154/1158, size 3-6
- Suitable for fire and smoke protection doors
- For double leaf doors with hinge distance from 1480 mm up to 2500 mm
- Barrier-free according CEN/TR 15894
- Escape door strike tested according to EltVTR

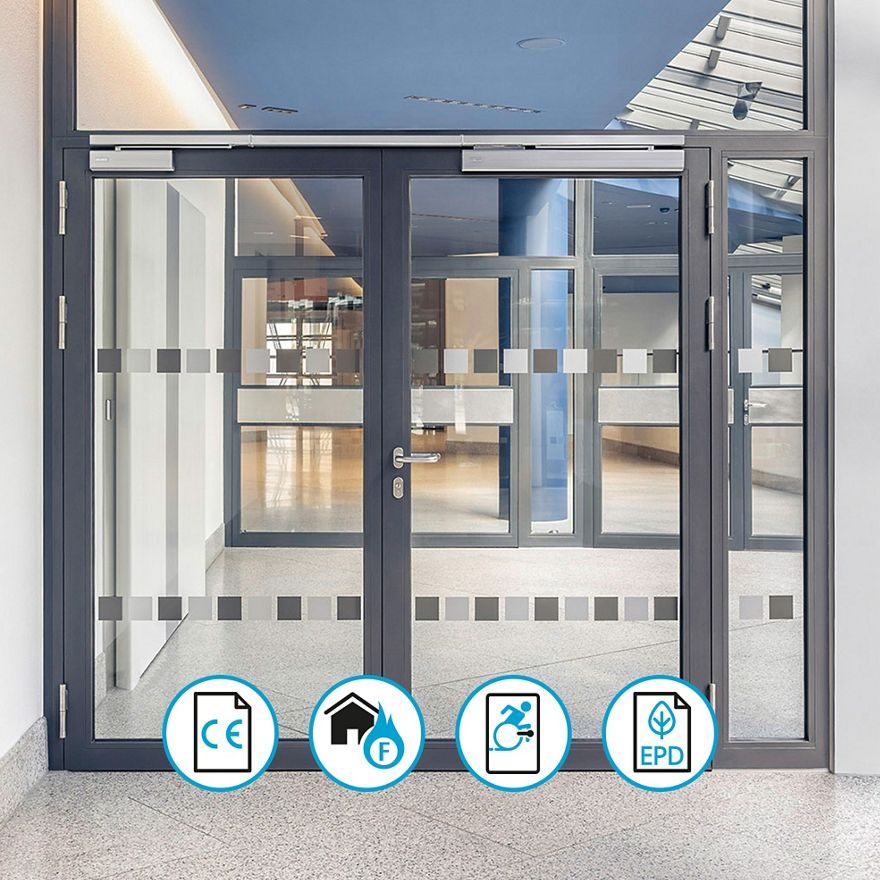

DC700G-CO-FT, door leaf mounting on hinge side
Height-adjustable spindle
Offers flexibility, compensates installation mistakes and enables later adjustment without cost or time delays
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Backcheck as standard
Prevents the door from slamming, reducing the risk of damage to the door, frame, or surrounding area
