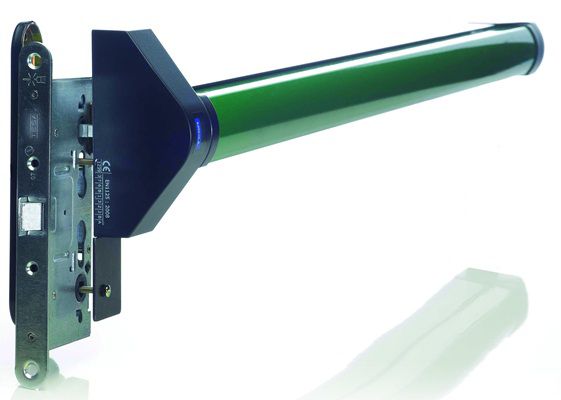

PED700
Panic exit device with central locking point - Mortise
Characteristics
- Push bar type
- Certified with locks with panic function
- (72 and 92 mm axis)
- For Fire and Smoke applications
- High durability 200,000 cycles
- For one or double leaf door up to 200 kg
- For all types of the door
- For doors up to 1200 mm width in standard
- For doors up to 1400 mm width in option
- Zinc alloy cover 38 mm width
- Aluminium touch bar 1046 mm long
- Bar to be cut
- 73 mm projection
- Micro switch version in option
Accessories
- Outside trims (e.g. Sena series)
- Cylinder (MKS possible)
- Various strikers
- Certified locks series: 1739, 1769, 1901,
- 1921, 9670, N4500
- Various spindles
Finishes
Covers:
- Black RAL 9005
- Silver RAL 9006
- S/Steel effect
Bars:
- Red RAL 3000
- Silver RAL 9006
- S/Steel effect
