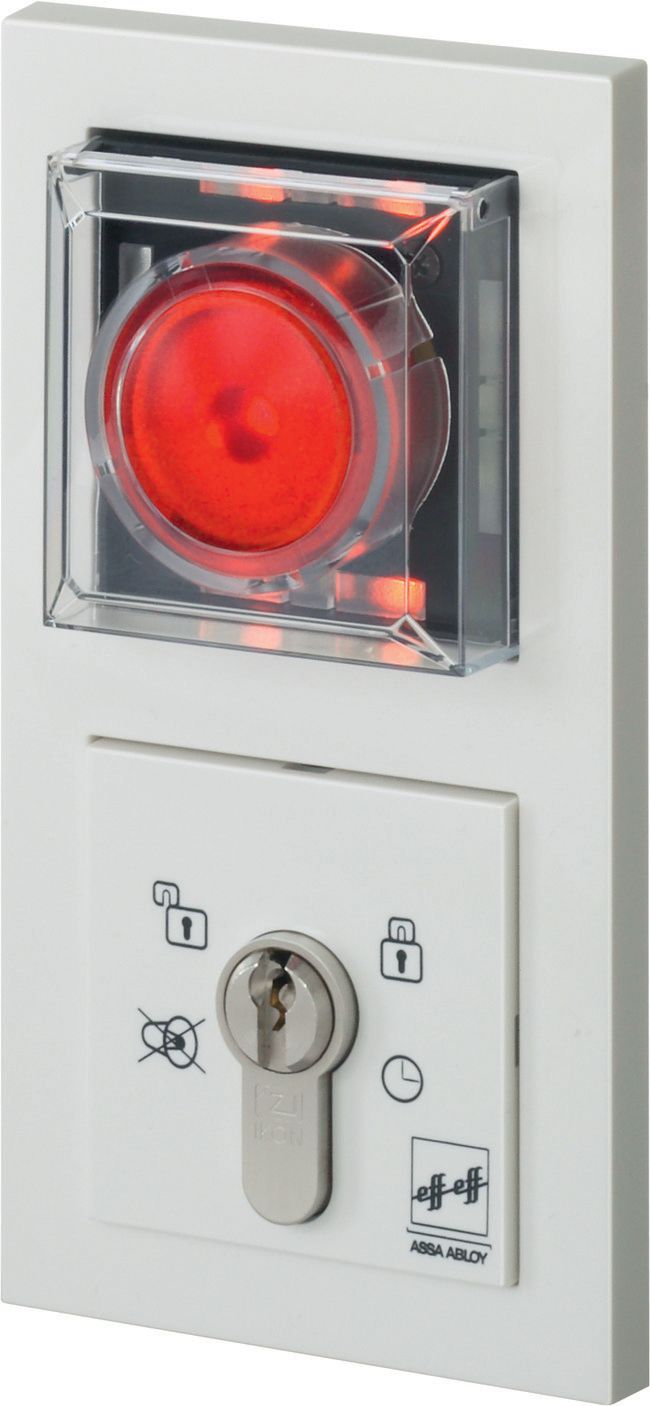

Flush-Mounted Control Terminal Model 1384-11

To control electric locking systems in doors along escape routes; certified.

Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
Emergency button sign (arrow pointing downwards)
Multi-tone signal and tampering contact
Adjustable time period for max. continuous release, temporary unlocking, pre-alarm, alarm interval, guidance signal
Monitoring of time door is open in the case of temporary unlocking
With an input featuring adjustable parameters for:
Control of locking and unlocking, temporary unlocking, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units, or
Temporary release using an access control system, or
Emergency release via fire alarm system, or
Priority locking via burglar alarm system
With a relay output featuring adjustable parameters for:
Door locked/unlocked, or
Collective alarm, or
Activation of electric strike/motorized lock/door automatics
Connections:
SYSCON-4: power supply
SYSCON-5: operating unit
Plug-in screw terminals
