Escape door strike 332.238 ProFix 2 (RRAKRR)
Monitoring contact (RR), Diode (05), Fail-unlocked, Anchor contact (AK/RR)
Product description
The compact construction form of the effeff 332.238 escape door strike allows rapid, uncomplicated mounting in a wide variety of profiles and door frames
Overview of Advantages
- Radius latch
- Compact symmetrical design
- Min. 2000 N, max. 3000 N holding power according to prEN13633 and prEN 13637
- Unlocking under preload with 100% holding power
- Monitoring contact is potential-free and armature contact is non-isolated *
- Suitable for DL/DR and horizontal installation

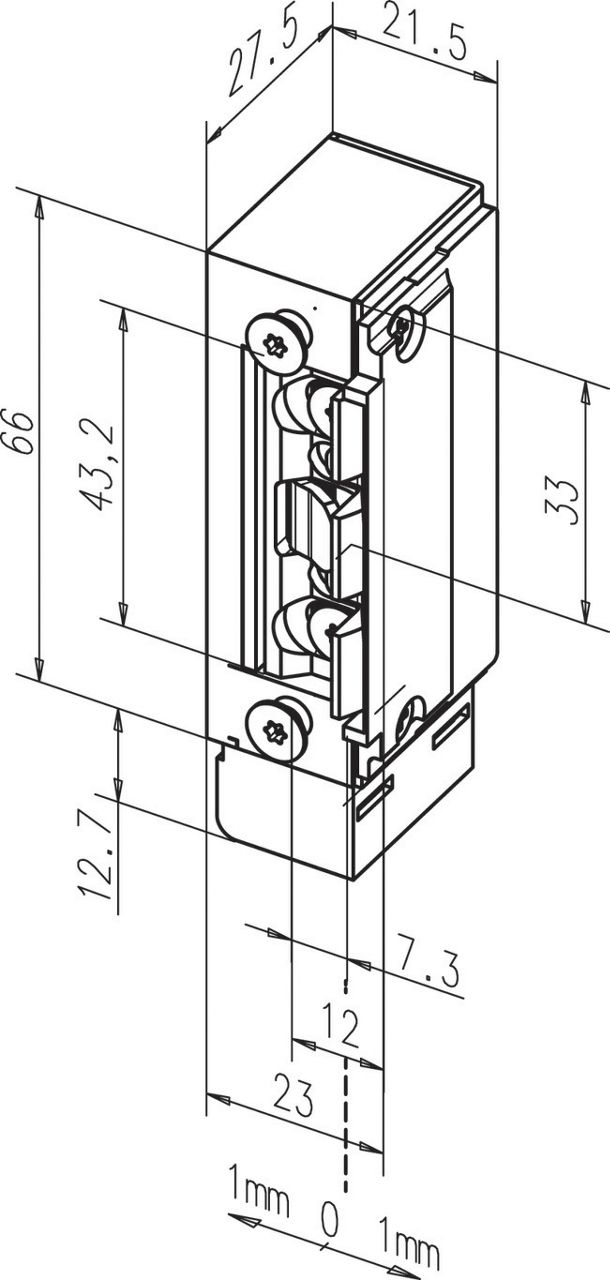

- Compact fitting dimensions
- Adjustable FaFix® latch: 2 mm adjustment range with 0.5 mm increments
- Compatible with ProFix® 2 striking plates
- Monitoring contact integrated in housing
- Monitoring flap moves together with the FaFix® screw-on attachment, i.e. the switching point always remains the same
Note
- Can only be used as a supplementary locking device on fire doors
- * Coupling Relay 7480 is required for parallel operation.
