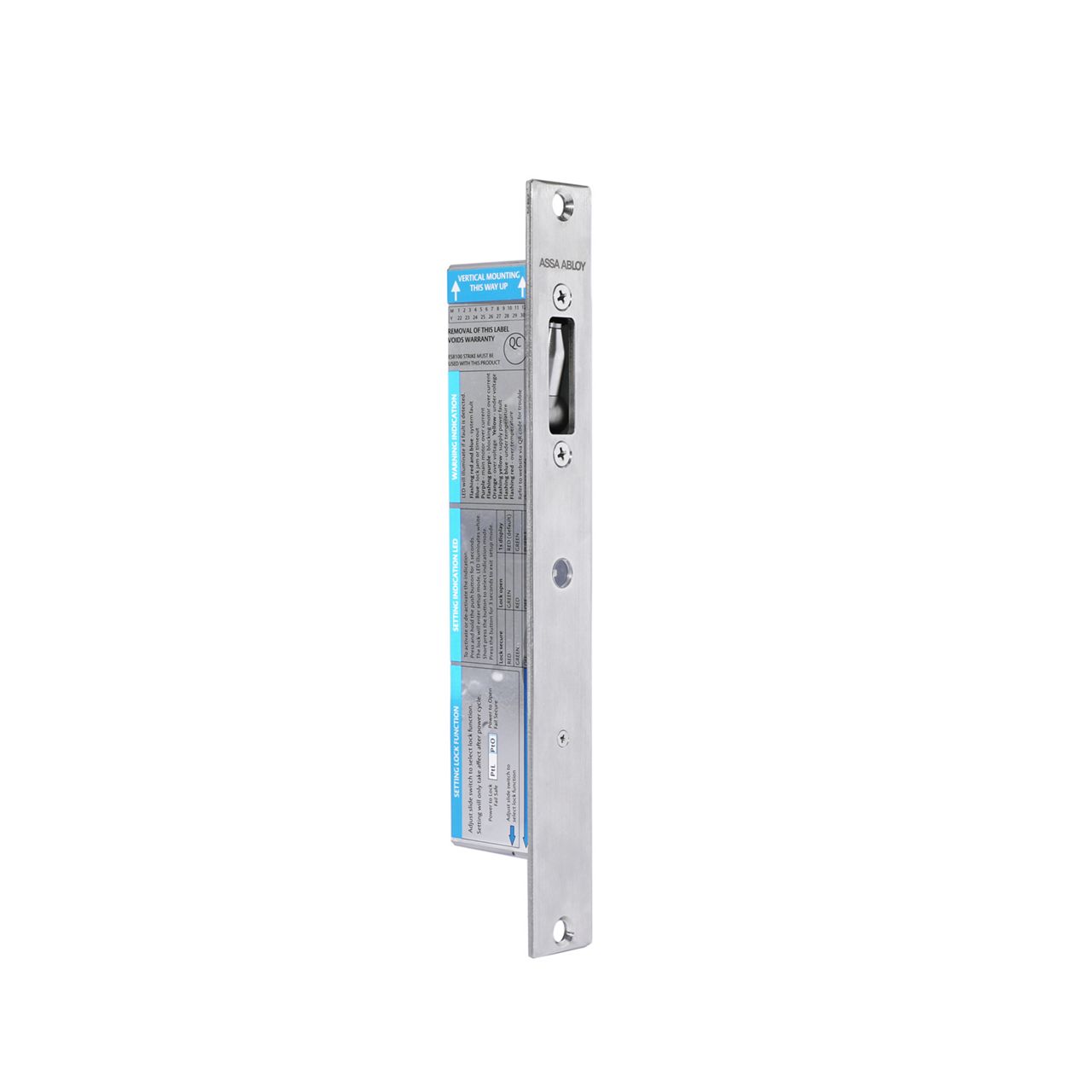

ES8100 V-Lock
The unique and popular Lockwood/Trimec ES8000 V-Lock has been completely redesigned and engineered to produce the new ASSA ABLOY ES8100 V-Lock.
Designed and assembled in Australia, with patents pending in various countries, the ES8100 incorporates many improvements over its Lockwood/Trimec predecessor, the ES8000, including a higher preload rating of 100kg, Door Position Monitoring, integrated LED lock status and diagnostics visual indication, increased door misalignment correction from 7mm to 12mm, an IP53 rating for external door applications and simple, one-step, PTO/PTL onsite configuration.

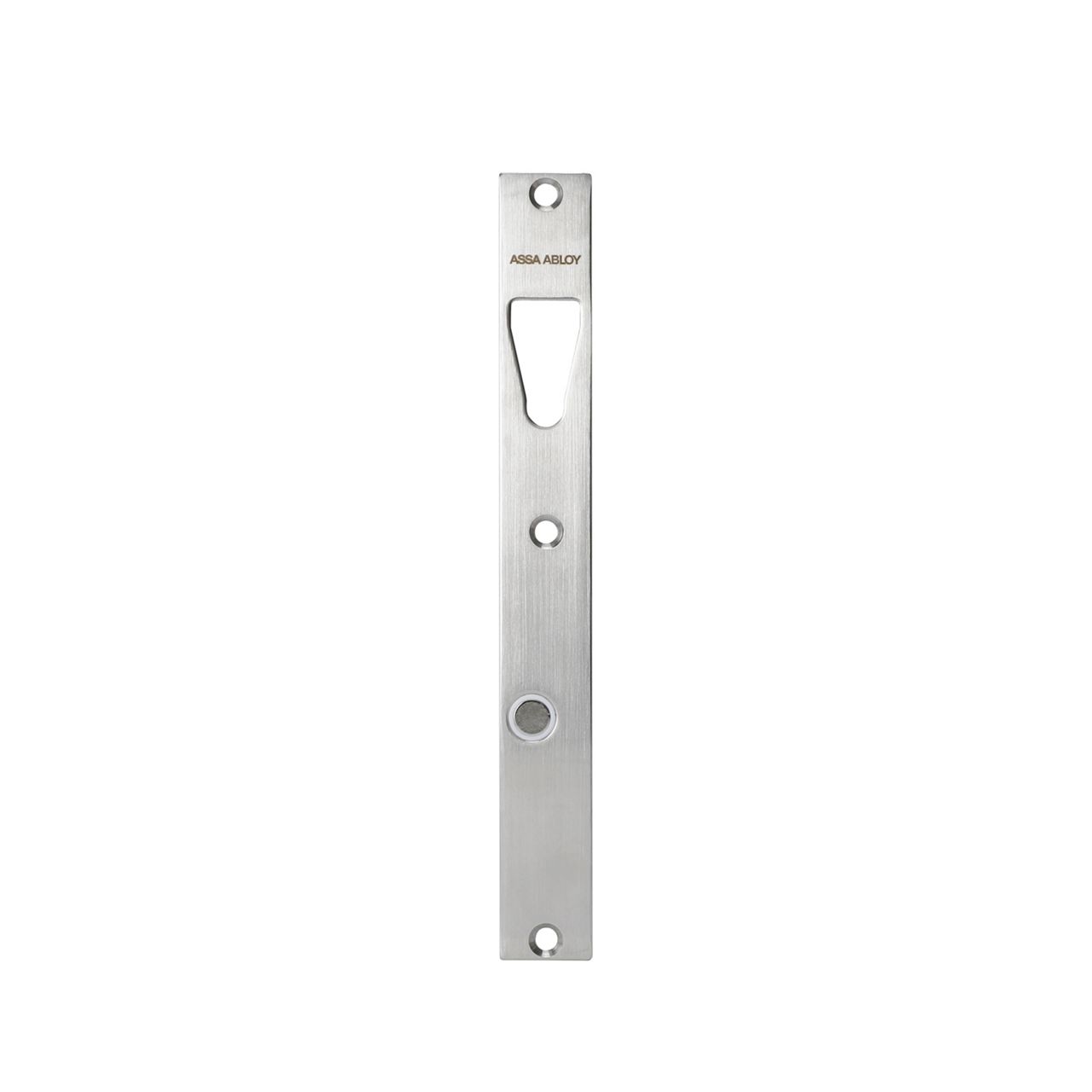

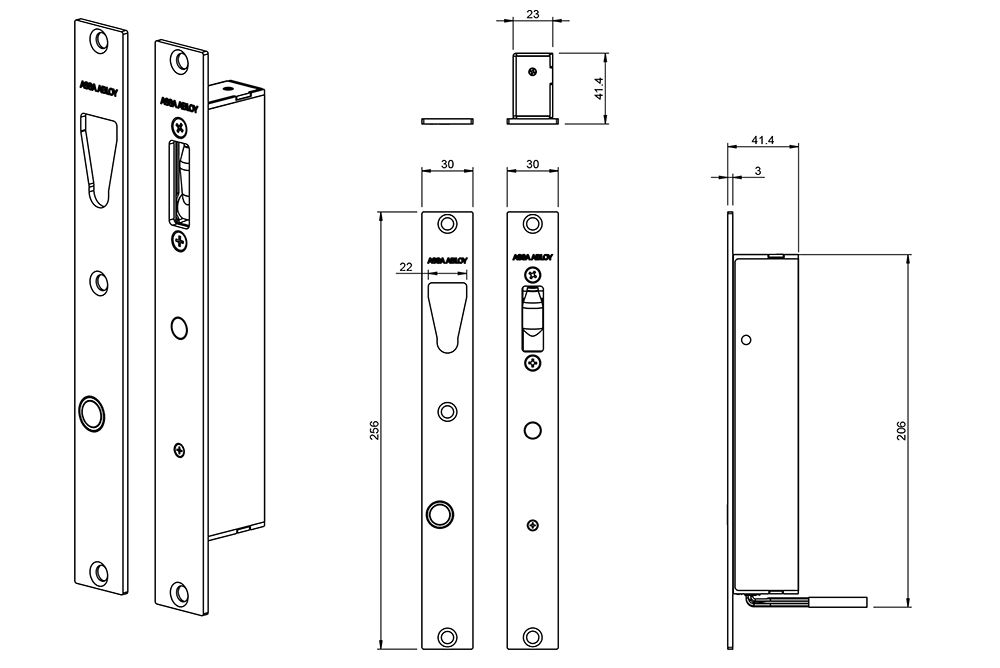

Although completely redesigned internally, the new ES8100 V-Lock body and faceplate retains the original footprint and is a direct retrofit to the original ES8000 model. The ES8100 strike plate utilises the same fixing locations but is 3mm wider to increase misalignment distance.
The ES8100, also known as the V-lock, contains a high torque motorised bolt which moves into a V shaped Strike Plate, pulling the door into alignment, when locked. The ES8100 may be mounted either vertically or horizontally but cannot be mounted in the floor.

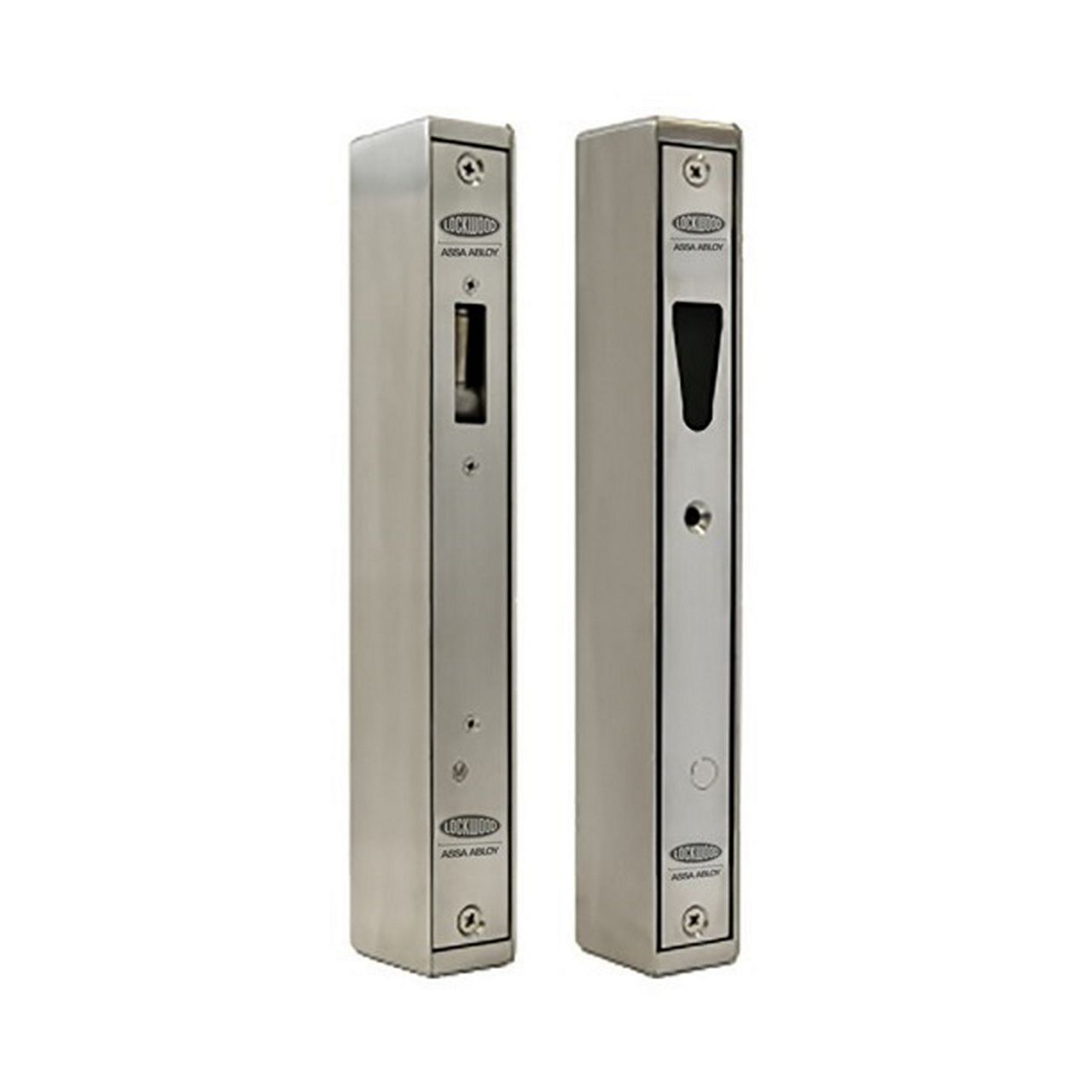

The ES8100 V-Lock can be mortice mounted and concealed from view or surface mounted, with the inclusion of an optional kit. A slim design with classic satin stainless steel faceplate, makes the ES8100 a product with great aesthetic appearance and easy installation.
Key Features:
- Unlocks under a Pre-Load of up to 100kg in 3-wire mode, 15kg in 2-wire mode
- Locks under a Pre-Load of 20kg (12W) and 35kg (24W)
- 1000kg Holding Force
- IP53 rated for external door applications
- Door Position and Lock Status Monitoring
- On-Board visual Lock Status indication and diagnostics LED
- Easy, one-step, Fail Safe (PTL) and Fail Secure (PTO) field selection
- Optional Surface / Glass mount Kit
- May be mounted vertically or horizontally (must not be mounted in the floor)
- Allows for door misalignment of up to 12mm total (+/-6mm)
- Operating voltage: 11.4 - 26VDC
- Durability tested to 500,000 cycles (120N unlocking, 50N locking)
Applications:
- Single and Double Swing hinge Doors
- Doors subject to Side Load (Pre-Load)
- Misaligned doors
- Glass doors
- Suitable for use with Access Control, Intercom, Keypad and Card Reader Systems and doors requiring door position monitoring
