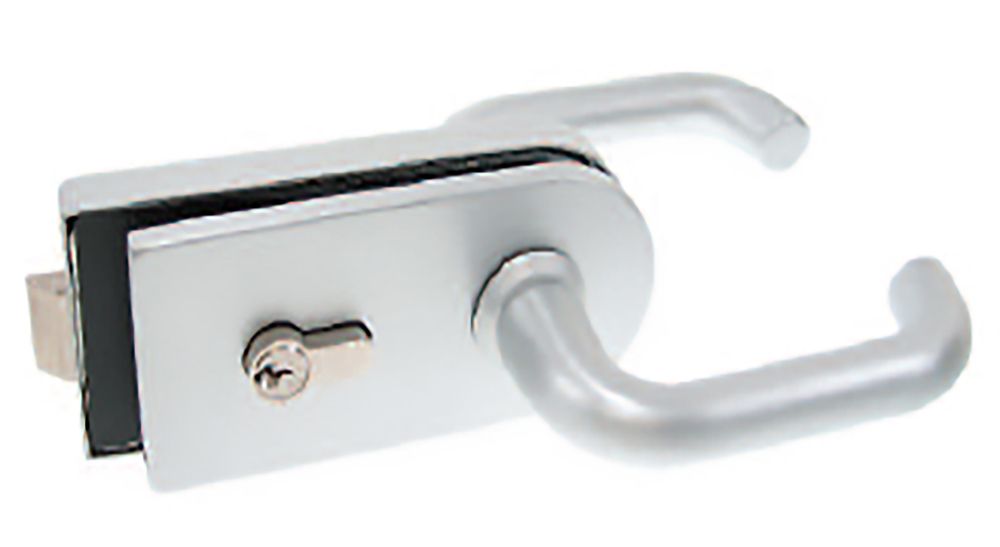

V525 Lumira Lockset

Horizontal Lockset

Description:

• Lock with euro profile cylinder and handles
• Offset mechanism to allow compression of rebate strip
• Resistance to heavy use
• Offset mechanism

Technical details:

• For 8 -10mm and 12mm thick toughened glass
• To fit notch 6300EX
• Reversible
• Locked by key with forward motion of latch bolt
• Retractable latch bolt by key
• Supplied with flat keep
