Receivers and receiver cards

BIXR2 - Two-channel plug-in receiver, 433.92 MHz

Two-channel 12-24 V DC receiver for plugging into a control panel or a card-holding base. Supplied with the removable BIXMR2 memory module for storing up to 200 remote controls.

Compatible with the BIXMR memory module for storing up to 1,000 remote controls.

2 relay contacts 1A / 30V (1NO, 1NO/NC)

1 configurable relay: Step by Step, Impulse, 300 s Timer with toggle, 3 s, 30 s, 90 s and 180 s Timer

Compatible with the Ditec Dip Switch, Fixed code, Rolling code, AES 128-bit Encrypted and PROTECTED mode protocols

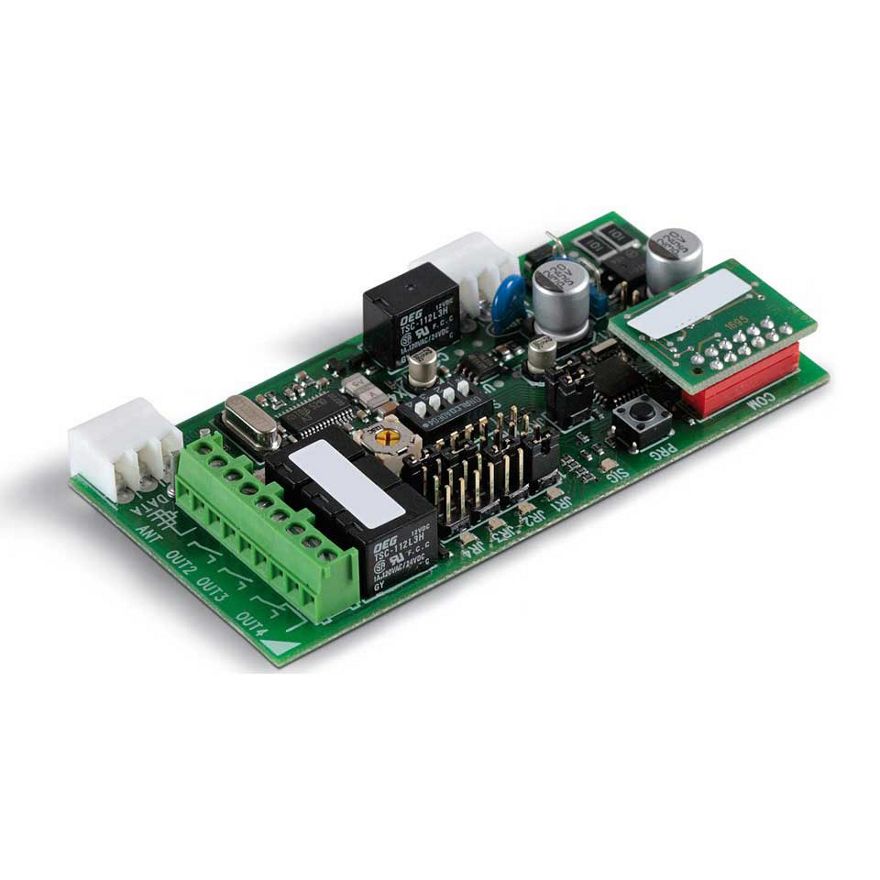

BIXLR42 - Self-learning PCB receiver, 433 MHz

Four-channel receiver, 12-24 V=, can store up to 1000 codes; output operation can be configured by means of dip-switches (3 stepped/pulsed outputs + 1 timed/pulsed output).
Supplied complete with push-in type BIX MR memory module.
