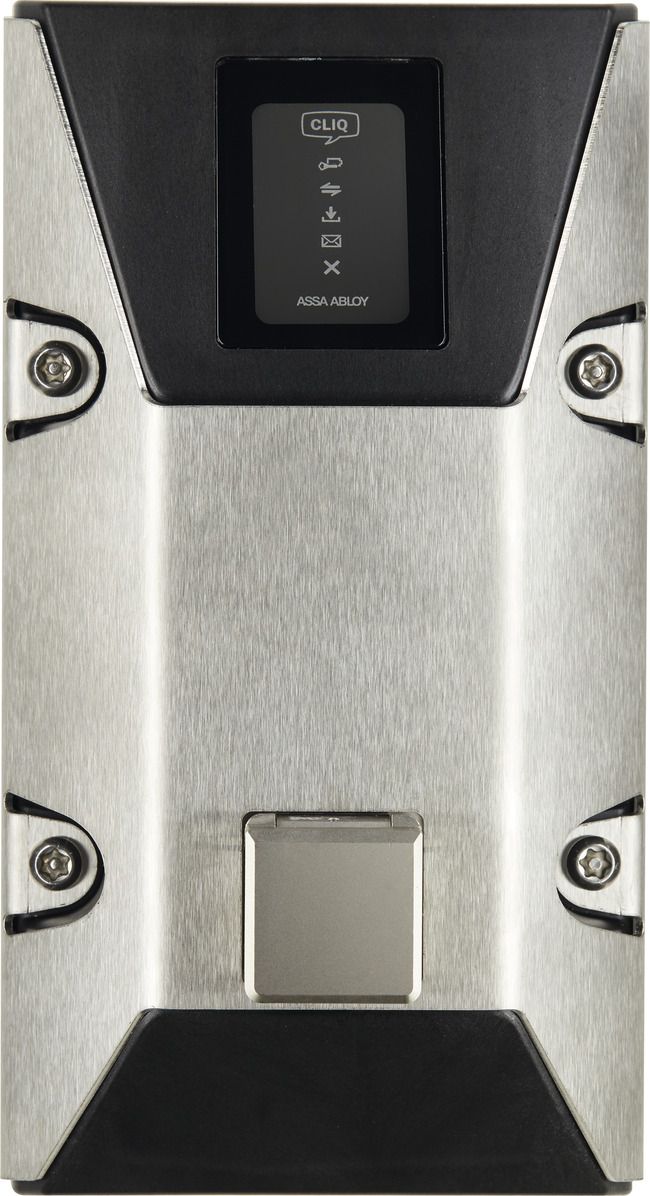

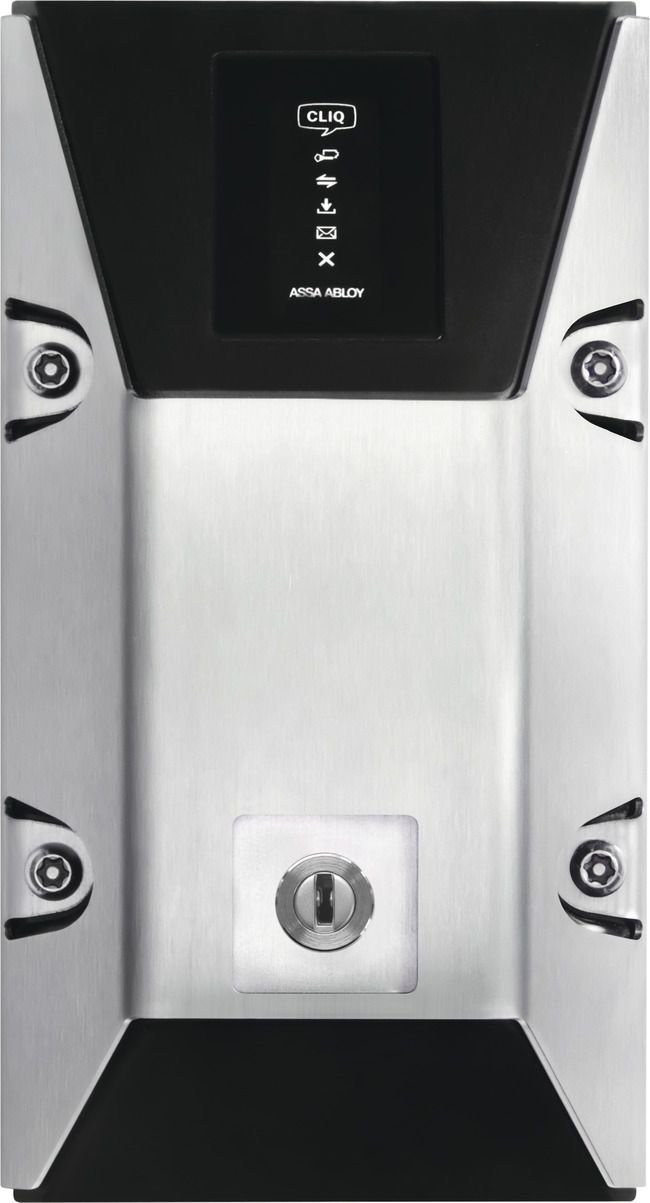

    Vandalism proof wall programming device eCLIQ-Remote NR03

    Fixed-site station for programming eCLIQ user keys

    Overview of advantages

    • Supports PoE (Power over Ethernet)
    • Connection and data exchange via network cable

    Product description

    • Connected by standard network cable
    • Suitable for outdoor usage and vandalism hazard areas
    • Permits changes to times and authorisations (depending on key type) as well the read-out of event logs
    • Optionally with floating contact for third-party devices (V=FO1) only with V=E3 keys
    • Core exchange module for easy changing of the core by external influence
    • Acoustic and optical signals for operating status and activity progress
    • Brightness of the LED display changeable
    • Supports PoE (Power over Ethernet)
    • 12...24 V external power supply
    • Splash-proof (SUR=0) IP45
    • Optionally available with dust and rain cover (SUR=1) IP65
    • Vandalism-resistant IK9
    • Organisation number selectable and visible at the front

    Scope of delivery

    • 1 vandalism proof wall programming device
    Vandalism proof wall programming device eCLIQ-Remote NR03
    Vandalism proof wall programming device eCLIQ-Remote NR03

    1 of 4


    Order number
    Product

    XS13/XS17 CLIQ Web Manager

    NE34 Corechanging module

    NZ05 Power supply for wall programming device (flush-mounted)

    VZ01 Power supply

    Order number
    Product

    N109,V=E1 Key eCLIQ

    N109,V=E2 Key eCLIQ

    N109,V=E3 Key eCLIQ

    VZ08 Mini USB adapter
    Article number
    NR03

    Dust and rain protection

    SUR= Area of application Info
    1 For Remote vandal-proof wall programming device (.R03) IP65 per PD



    Version

    V= Description Info
    FO1 Wall programming device with floating contact per device
    • Downloads for Product
    • Product sheet(PDF, 581 KB)
    • Certificates and attests
    • EU Declaration of Conformity CLIQ Outdoor Wall programming device .R03(PDF, 179 KB)
    • Downloads for Product Range
    • CLIQ Local Manager and CLIQ Web Manager(PDF, 1 MB)
    • Electronic locking system eCLIQ(PDF, 3 MB)
    • CLIQ Connect Flyer(PDF, 4 MB)
    • eCLIQ key Professional and Connect(PDF, 2 MB)
