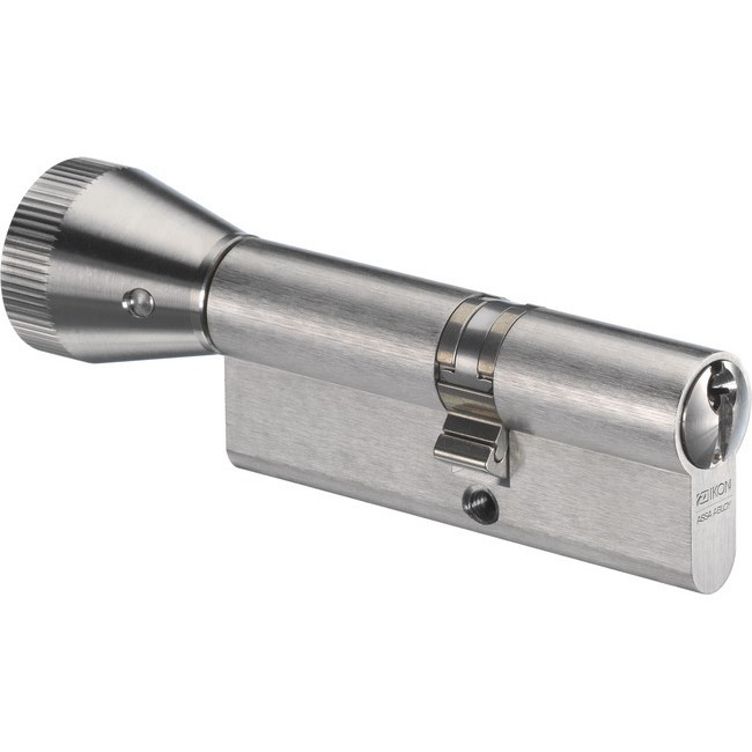

Profile-knob cylinder +CLIQ .534,KNF=2+CLIQ

Small tapered knob with 28 mm diameter - without key

Product description

• For IKON locking systems in the systems TK5, SK5, SK6, TK6, SK7
• Brass cylinder housing components
• Standard finish, satin nickel-plated (OF=MV)
• Standard knob colour satin nickel-plated (KNF=2MV)
• Basic cylinder length for systems TK5/SK5/SK6 61 mm (C) - A/B (L=30/30), for systems TK6/SK7 71 mm (C) - A/B (L=35/35) - other installation lengths available
• Standard cam position (SST=30°)
• Cam made of break and corrosion-resistant nickel silver profile
• Core pins made of special wear-resistant bronze
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G EX IB IIB T4 Gb
• Optionally available with anti-killing spree function: With this function the knob is disengaged as the key is entering the cylinder on the other side (VAR=1901509+3+ENTKUPPL.)

Scope of delivery

• 1 profile-knob cylinder
• 1 cylinder fixing screw M5 x 85 mm

Ordering Information

• The knob is always on the inside of the cylinder (B)
