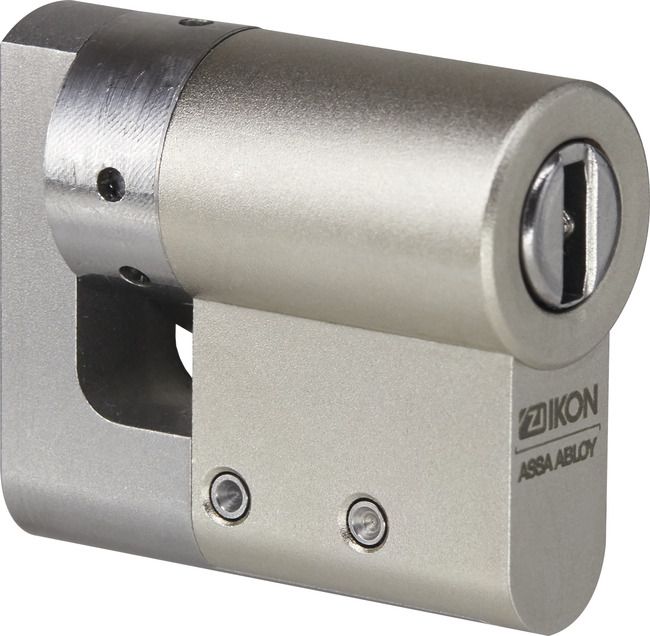

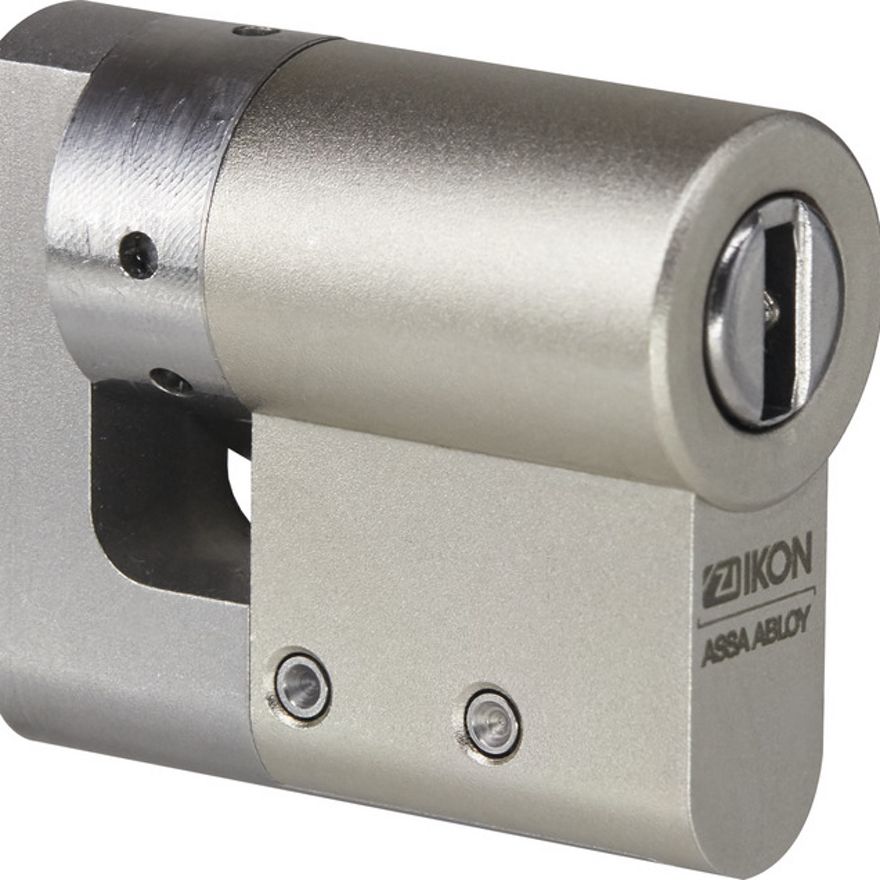

Profile-half cylinder CLIQ® Go N532,VAR=R90A008,SERVICE=CLIQGo

Without key

Product description

Available as rotary secured or electronical version (V=)
Brass / steel cylinder housing components
Version with optimum extraction protection (15,000 N / 1.5 t)
Particularly suitable for use in vending machines
Standard finish, satin nickel-plated (OF=MV)

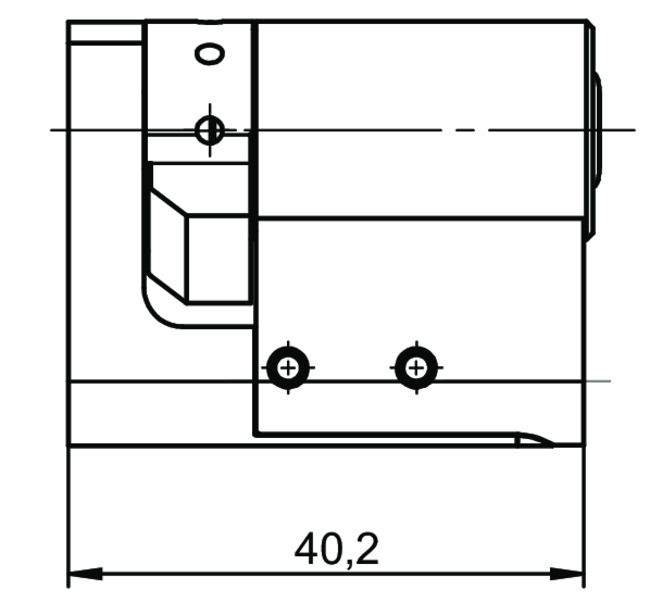

Basic cylinder length 31mm (L=30/-)
Standard cam position (SST=6x45°)
Cam off high strength and high-alloyed steel
Optionally available with anti drilling protection class 2 (AB=2)
Maintenance-free for up to 200,000 cycles
Dust and rain cover for one side available under (SUR=1)

Scope of delivery

1 profile half-cylinder

Profile-half cylinder CLIQ® Go N532,VAR=R90A008,SERVICE=CLIQGo

Article number	V= (Version)	OF= (Surface)	L= (Length)
N532,VAR=R90A009,SERVICE=CLIQGo	D (Rotary secured version)	MV (Matt, nickel-plated)	30
	E (Electronic version)	MV (Matt, nickel-plated)	30

Special identification marking

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per side

Drilling protection

AB=	Area of application	Info
2	For profile knob, half and special cylinders	per cylinder

OF=	Area of application	Info
MV	For profile and locking lever cylinders	per cylinder
MC	For profile and locking lever cylinders	per cylinder
MP	For profile and locking lever cylinders	per cylinder
MG	For profile and locking lever cylinders	per cylinder

Dust and rain protection

SUR=	Area of application	Description	Info
0		Deviating from the standard cap	per cylinder
3	For profile knob and double cylinder, double cylinder one side blind and half cylinder		per cylinder

V=
D
E
