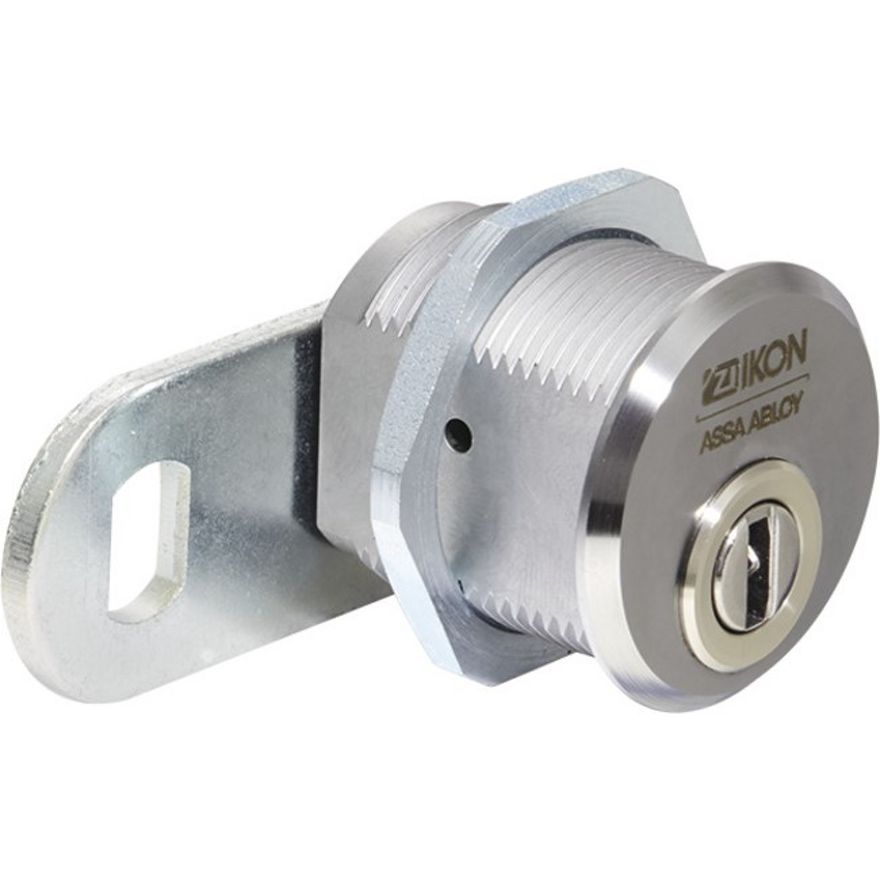

Locking lever cylinder CLIQ® Go N320,AUS=1,SERVICE=CLIQGo

30 mm Diameter , laterally flattened to 22 mm - without key

Product description

• Available as rotary secured or electronical version (V=)
• Brass cylinder housing components
• Standard finish, matt chrome-plated (OF=MC)

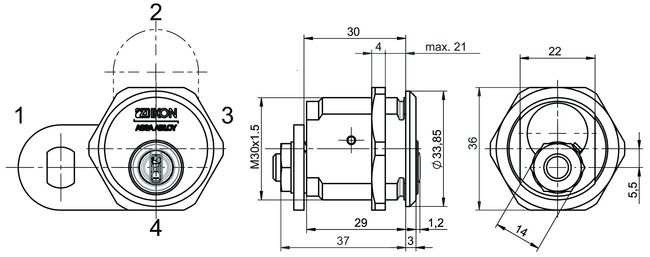

• Dimension in mm A, L, B: 38, 29, 21
• Fixing with M30x1.5 housing nut
• Standard locking lever (SLHB=1645009)
• Locking path and locking lever path 90º left or right
• Key withdrawal when locking lever is closed
• Maintenance-free for up to 200,000 cycles
• Splash-proof IP54

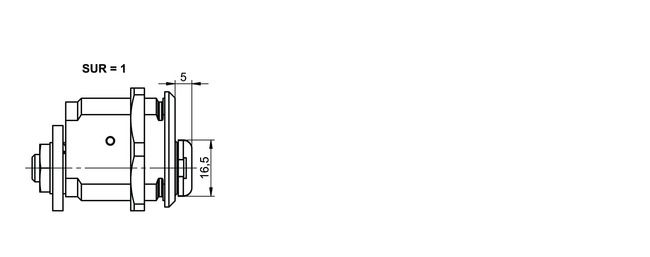

• Dust and rain cover available (SUR=1) IP55

Scope of delivery

• 1 locking lever cylinder
• 1 housing nut M30 x 1.5 x 4
• 1 core nut, M8 x 0,75 x 3

Ordering Information

• Please include the desired locking path (SST=) in your order
