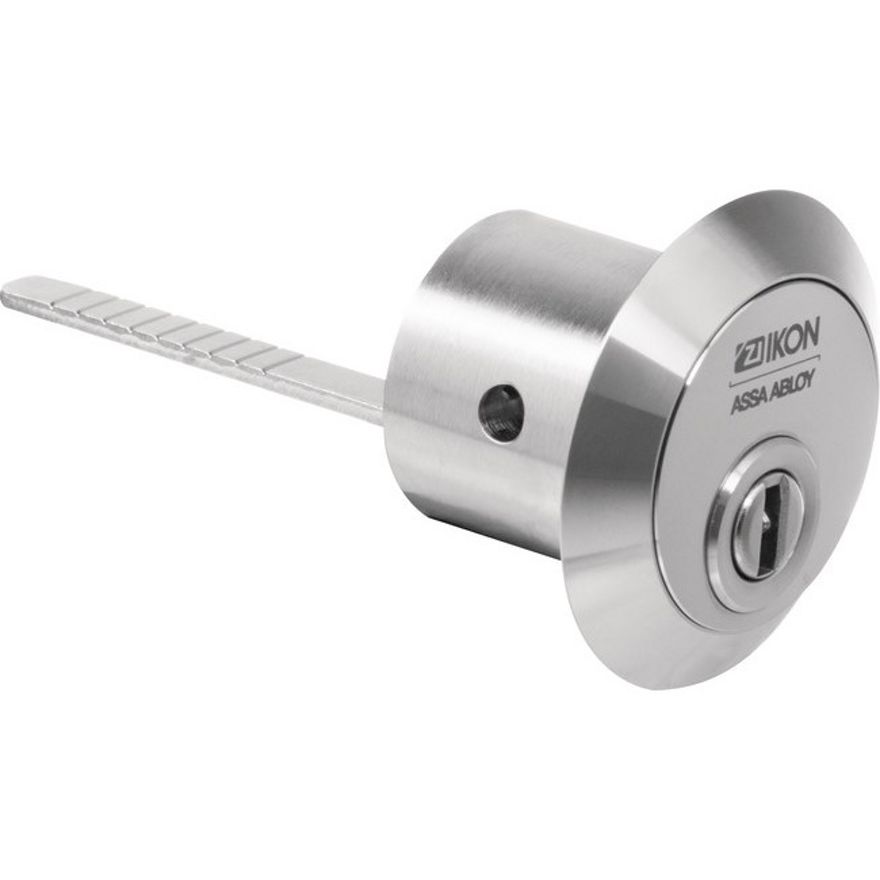

External cylinder CLIQ® Go N063,SERVICE=CLIQGo

Without key

Product description

Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Screwed onto lock cover from within using M6 screws
Maintenance-free for up to 200,000 cycles
Dust and rain cover available (SUR=1) IP55

Scope of delivery

1 external cylinder
1 shim ring
2 screws DIN EN ISO 7046

Ordering Information

Combination with IKON security escutcheons only possible in version SUR=0

External cylinder CLIQ® Go N063,SERVICE=CLIQGo

	Order number	Product
	9131	Rim lock without cylinder
	9132	Rim lock without cylinder with security link
	9260	Drive unit for multipoint locking device without lateral bolt
	9261	Drive unit for multipoint locking device with lateral bolt
	9262	Drive unit for multipoint locking device with lateral bolt and security link

	Order number	Product
	N109,V=E3,SERVICE=CLIQGo	Key CLIQ^® Go
	N109,V=B3,SERVICE=CLIQGo	Key CLIQ^® Go
	1438	Fixing screws
	1152	Connecting rod
	1156	Shim ring
	1159	Screw-on plate

Drilling protection

AB=	Area of application	Info
2	For profile knob, half and special cylinders	per cylinder

OF=	Area of application	Info
MV	For profile and locking lever cylinders	per cylinder
MC	For profile and locking lever cylinders	per cylinder
MP	For profile and locking lever cylinders	per cylinder
MG	For profile and locking lever cylinders	per cylinder

Dust and rain protection

SUR=	Area of application	Description	Info
0		Deviating from the standard cap	per cylinder
1	For special cylinders		per cylinder

V=
E
D
