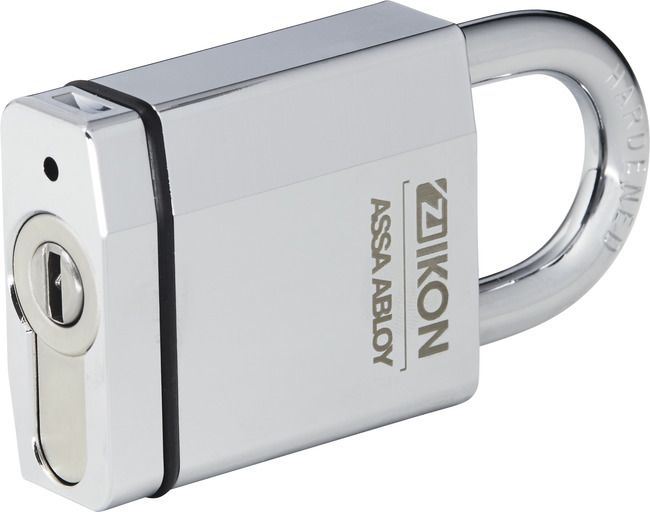

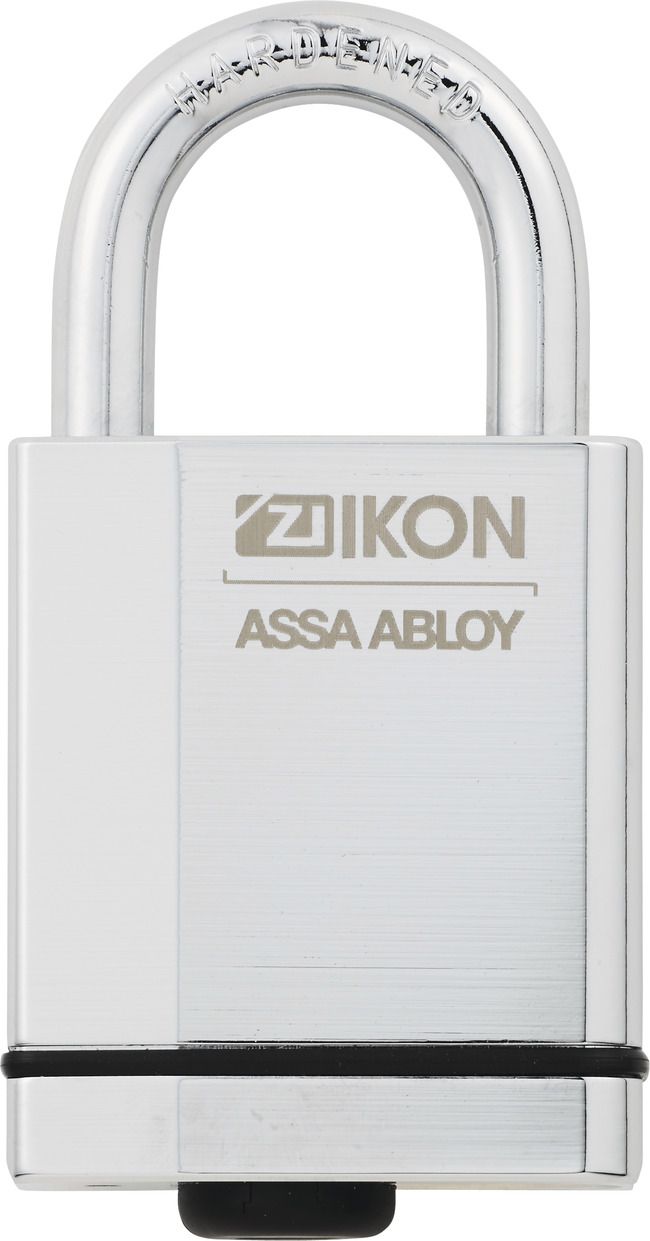

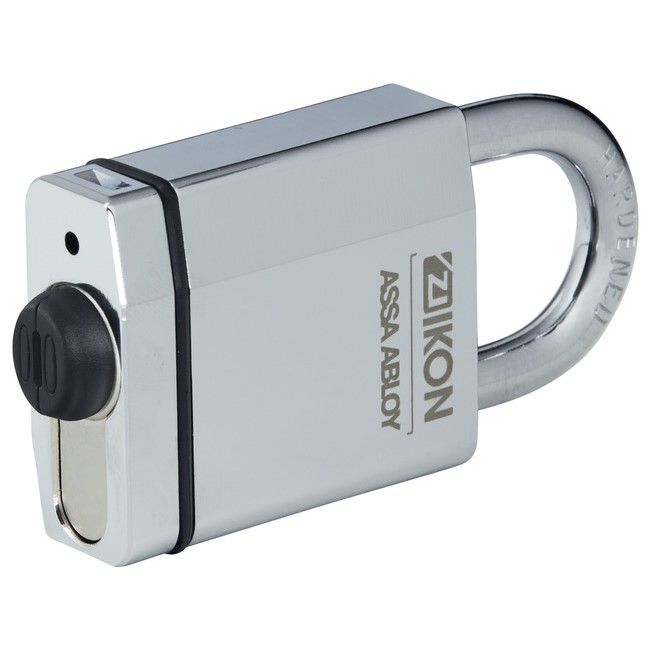

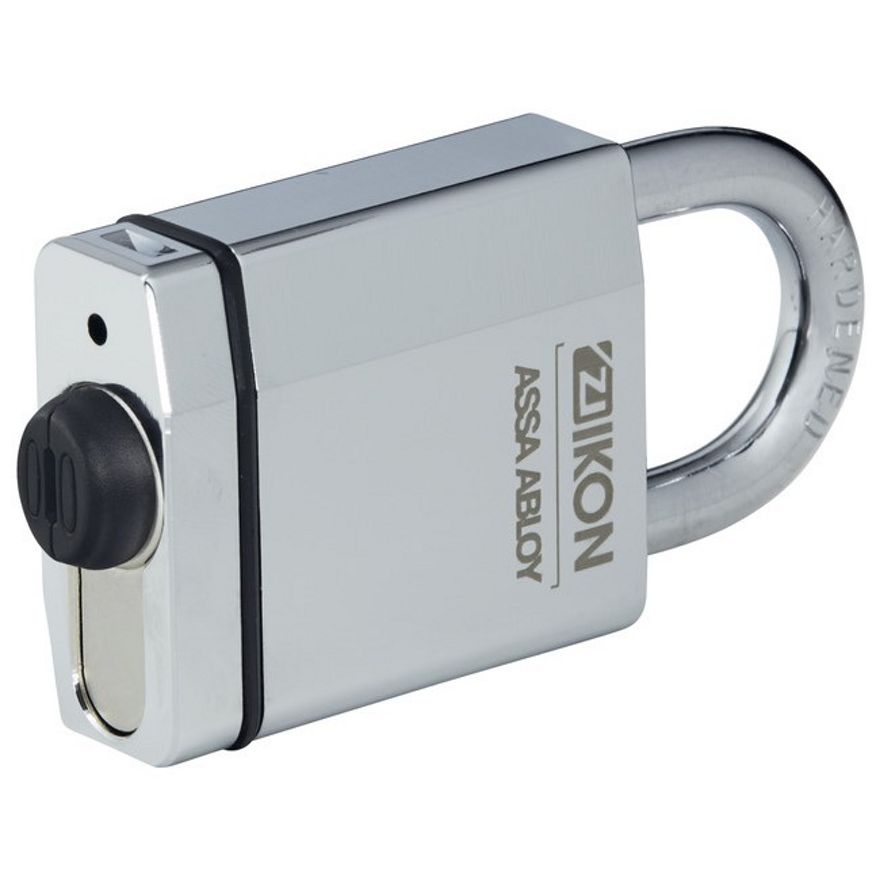

Cylinder padlocks CLIQ® Go N316,SERVICE=CLIQGo

With positive locking - without key

Product description

Available as electronical version (V=)
Housing chrome-plated in brass
Cylinder, nickel-plated brass satin

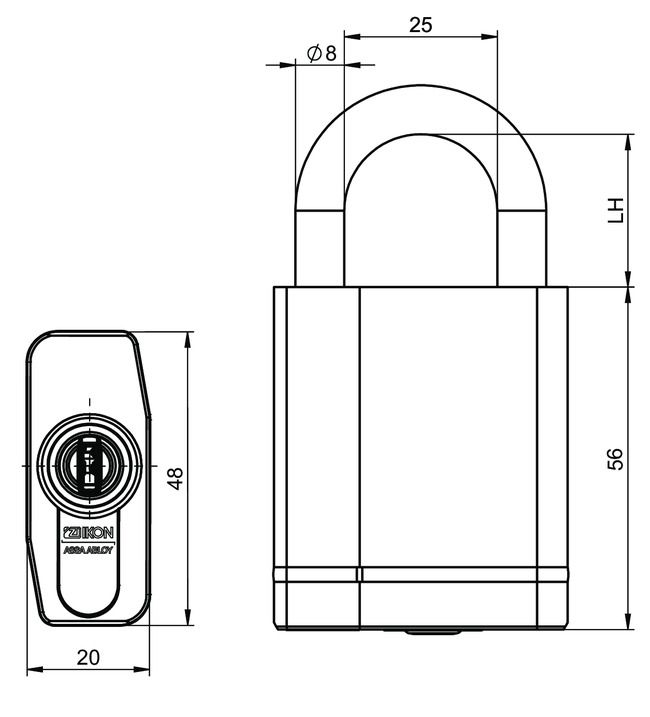

Standard shackle clearance height 25 mm (AUS=LH25)
Optionally with non-corroding shackles (AUS=LH25-NIRO)
Other shackle heights (AUS=LH50, LH75, LH28/5)
Steel shackle, diameter 8 mm, hardened and chrome-plated
Steel shackle diameter 5 mm at shackle height 28 mm (AUS=LH28/5), hardened and chrome-plated
With positive locking as standard
Optionally available without controlled locking (AUS2= OHNE ZWANGSSCHL)
Standard with dust and rain cover (SUR=3) IP67
Standard version as per DIN EN 12320 class 3 (not valid for AUS=LH28/5)
Optionally without dust and rain cover (SUR=0)

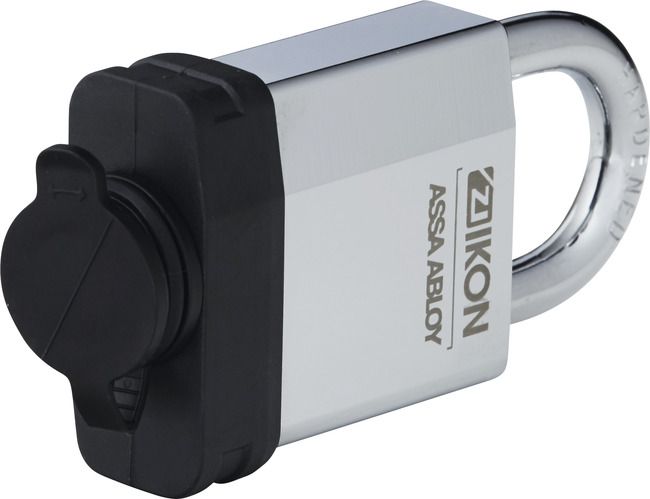

Optionally IP67 certified with protective cap (SUR=2)
Maintenance-free for up to 200,000 cycles

Scope of delivery

Ordering Information

1 of 7

	Order number	Product
	1090	Protective cap IP67

	Order number	Product
	N109,V=E3,SERVICE=CLIQGo	Key CLIQ^® Go

Article number	V= (Version)	AUS= (Version)	SUR= (Dust and rain cover)
N316,SERVICE=CLIQGo	E (Electronic version)	LH25 (Clear shackle height 25mm)	3
	E (Electronic version)	LH50 (Clear shackle height 50mm)	3
	E (Electronic version)	LH75 (Clear vertical shackle height 75mm)	3
	E (Electronic version)	LH28/5 (Clear shackle height 28mm / Shackle diameter 5mm)	3
	E (Electronic version)	LH25-NIRO (Clear shackle height 27mm / Stainless steel shackle)	3

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per side

SUR=	Area of application	Description	Info
3	For profile knob and double cylinder, double cylinder one side blind and half cylinder		per cylinder
2	For padlock .316	IP67 certified with protection cap	per padlock
0		Deviating from the standard cap	per cylinder

V=
E
