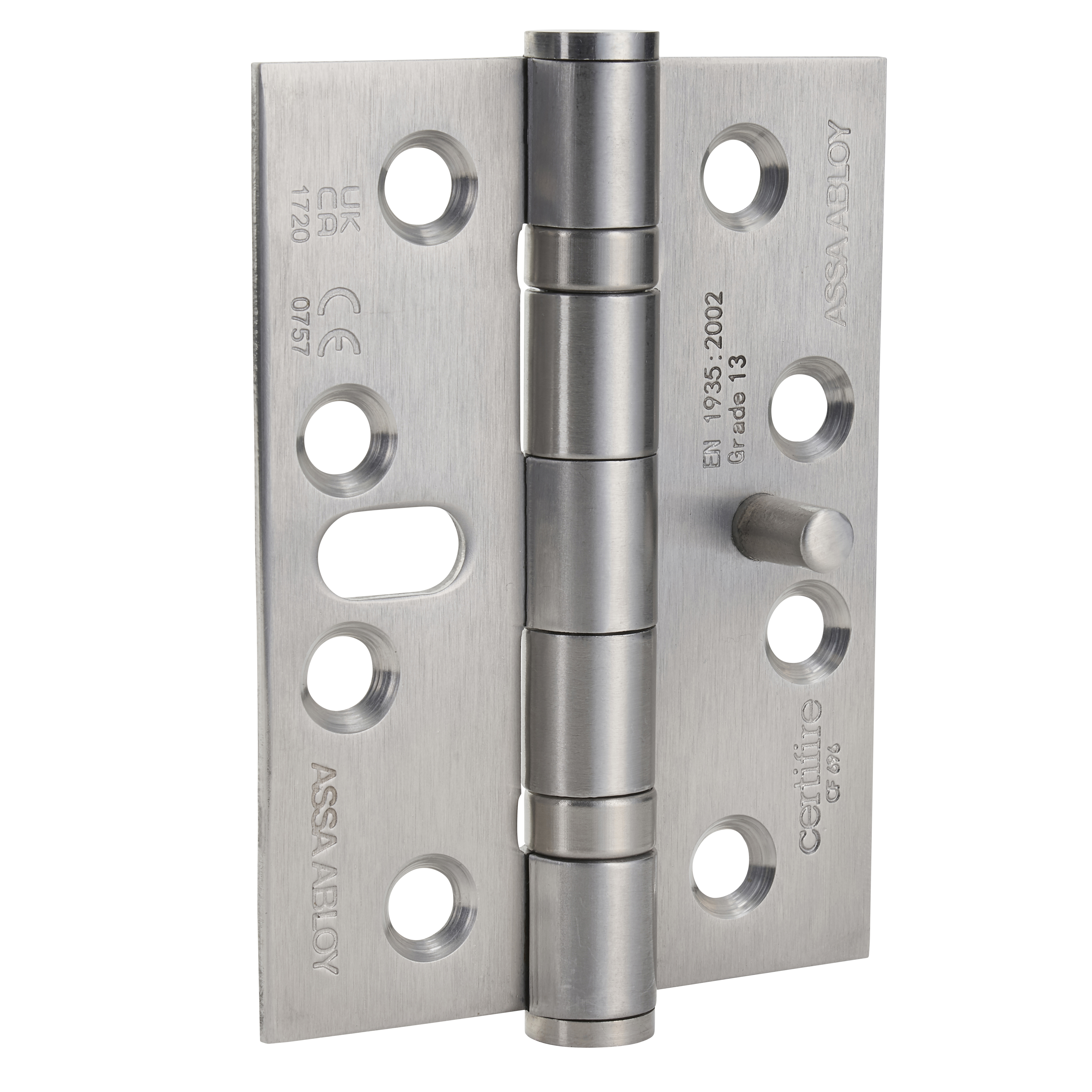

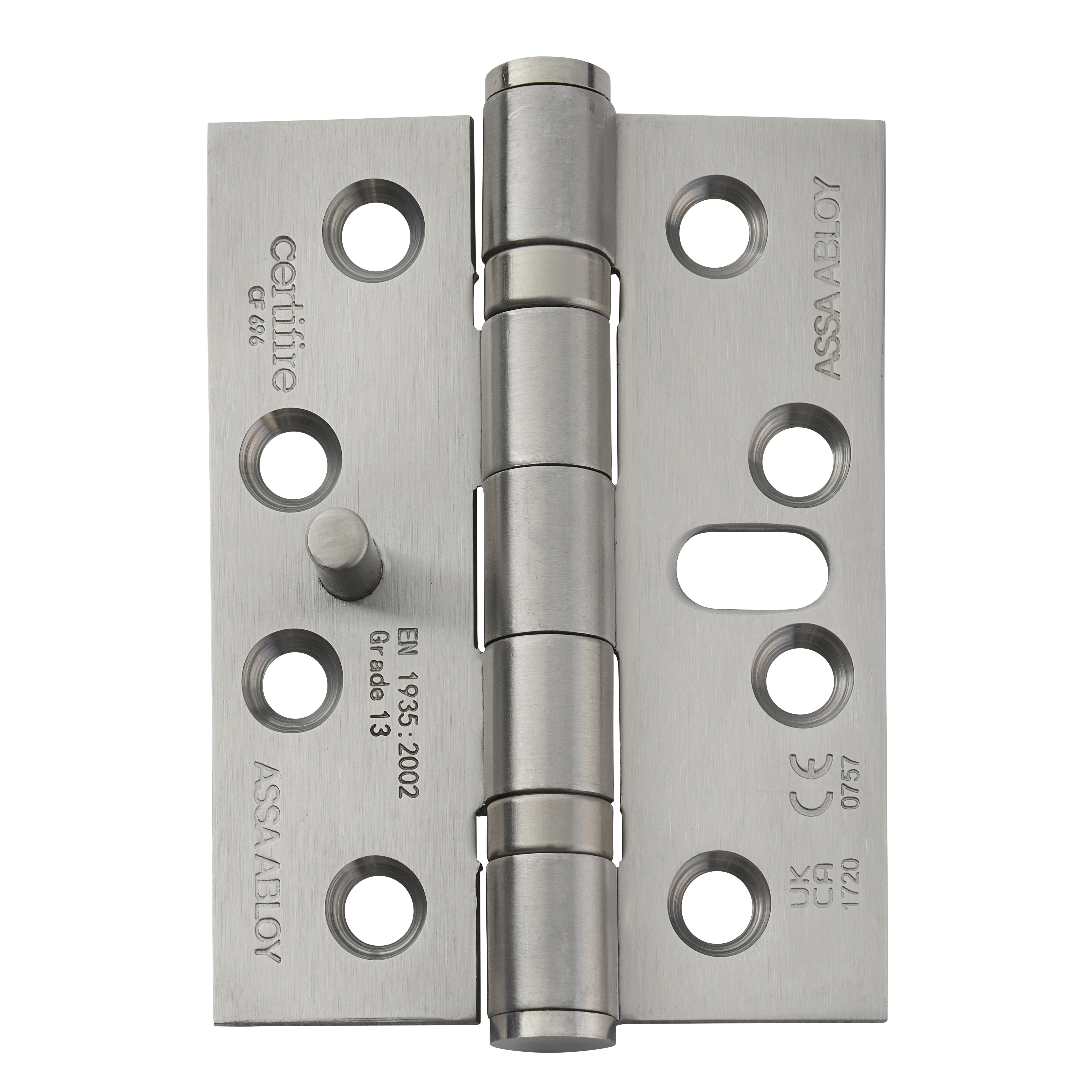

Ball Bearing Butt Hinge

This high-performance ball bearing butt hinge is designed for severe duty applications, making it ideal for doors subject to frequent use. It features a dog bolt for enhanced security and stability, particularly suited for outward opening external doors.

Compliant with EN 1935:2002 grade 13, it is performance tested to withstand 200,000 cycles on a 120kg door mass. The hinge allows a full 180-degree opening angle and incorporates a ball bearing race to increase durability, making it compatible with door-closing devices. Additionally, it is fire rated for timber doors when used in conjunction with intumescent.
