El types Glass

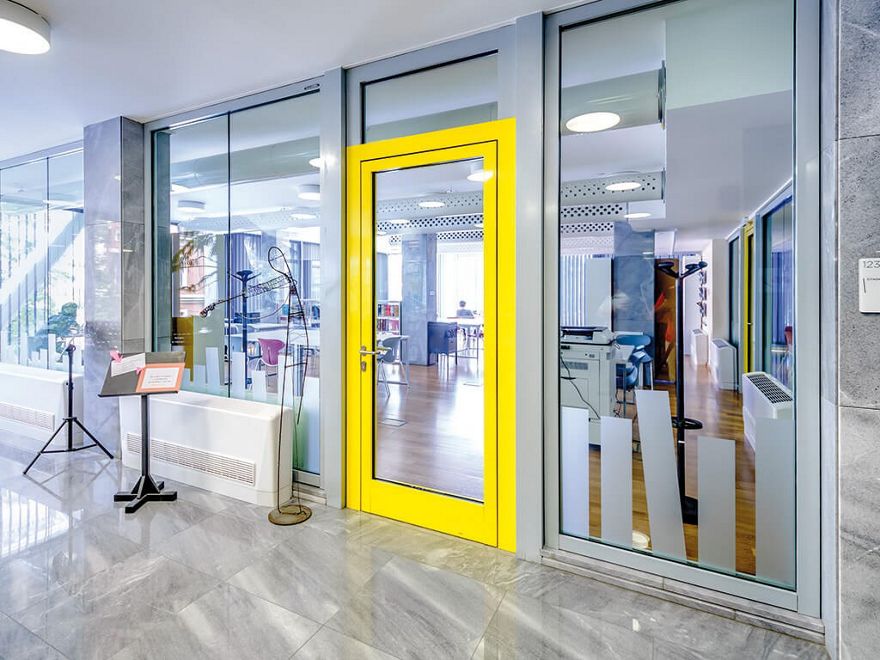

ASSA ABLOY El types Fire Rated Glass
- Max. 1130 x 2450mm, min. 300 x 300 mm
- Max. height 2450 mm
- El class glasses make a barrier against fire, hot gases and smoke with forming termal insulation
- EN 14449 : 2005 ve EN 13501-2 :2007 + A1:2009
| Glass Type | Glass Thickness (mm) |
| El30 | 16 mm +-1 |
| El60 | 25 mm +-1 |
| El90 | 37 mm +-1 |
| El120 | 60 mm +-3 mm |
