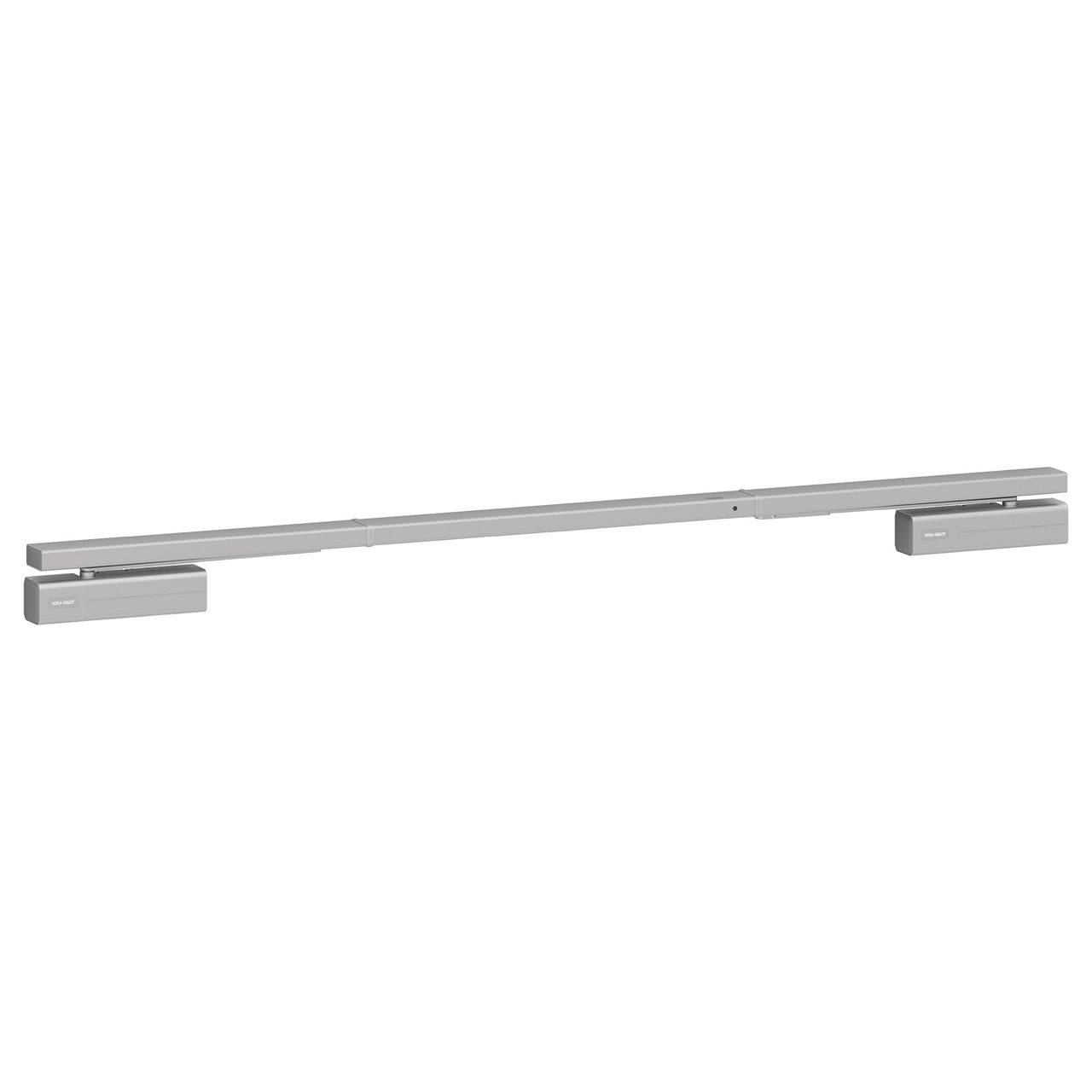

G-CO-CS vodilo za zapiralo vrat DC700

Door closer with Cam-Motion® technology with electro-mechanical hold open device, smoke detector and integrated mechanical door coordinator, non-hinge side

Product description

Door closer with Cam-Motion® technology with electro-mechanical hold-open device, smoke detector and integrated mechanical door coordinator for double leaf doors, DIBt approval Z-6.500-2364

DIBt approval Z-6.500-2364

Mechanical door coordinator in continuous guide rail

Smoke switch with contamination indicator and alarm threshold monitoring

Integrated 230 V power supply

All components fully integrated into continuous guide rail

Convenient opening of the door with with rapidly decreasing opening torque of the door closer

Suitable for fire and smoke protection doors with a hinge distance between 1430 mm and 2500 mm

Overview of Advantages

Door coordinator based on wedge system

Regular mounting on non-hinge side, can be used for left and right-handed doors

Optical smoke detector after scattered light principle

Status displayed on LED: operational mode, alarm, maintenance

Integrated potential-free alarm relay

Can be activated by a fire alarm system

Connectivity for manual release buttons and ceiling smoke detectors

Electro-mechanical hold-open device

Continuously adjustable holding force

Traversable arrestor point, continuously adjustable between approx. 80°-110°

Flush or surface installation of wiring possible, 230 V AC

For doors with panic function in conjunction with the driving flap A102

Symmetric and asymmetric door partition possible, minimum width of the inactive leaf = 400 mm

Door opening angle up to approx. 120°, maximum opening angle limited

Guide rail height adjustable by 2 mm for tolerance

Axis continuously height adjustable up to 14 mm

Closing speed, latching speed and backcheck adjustable via front facing regulating valves

Variable adjustable closing force

Thermodynamic valves for consistent performance

Effective backcheck and latching speed range adjustable

Standard colours: silver EV1, white similar to RAL9016, stainless steel design

Customised finishes available on request

Note

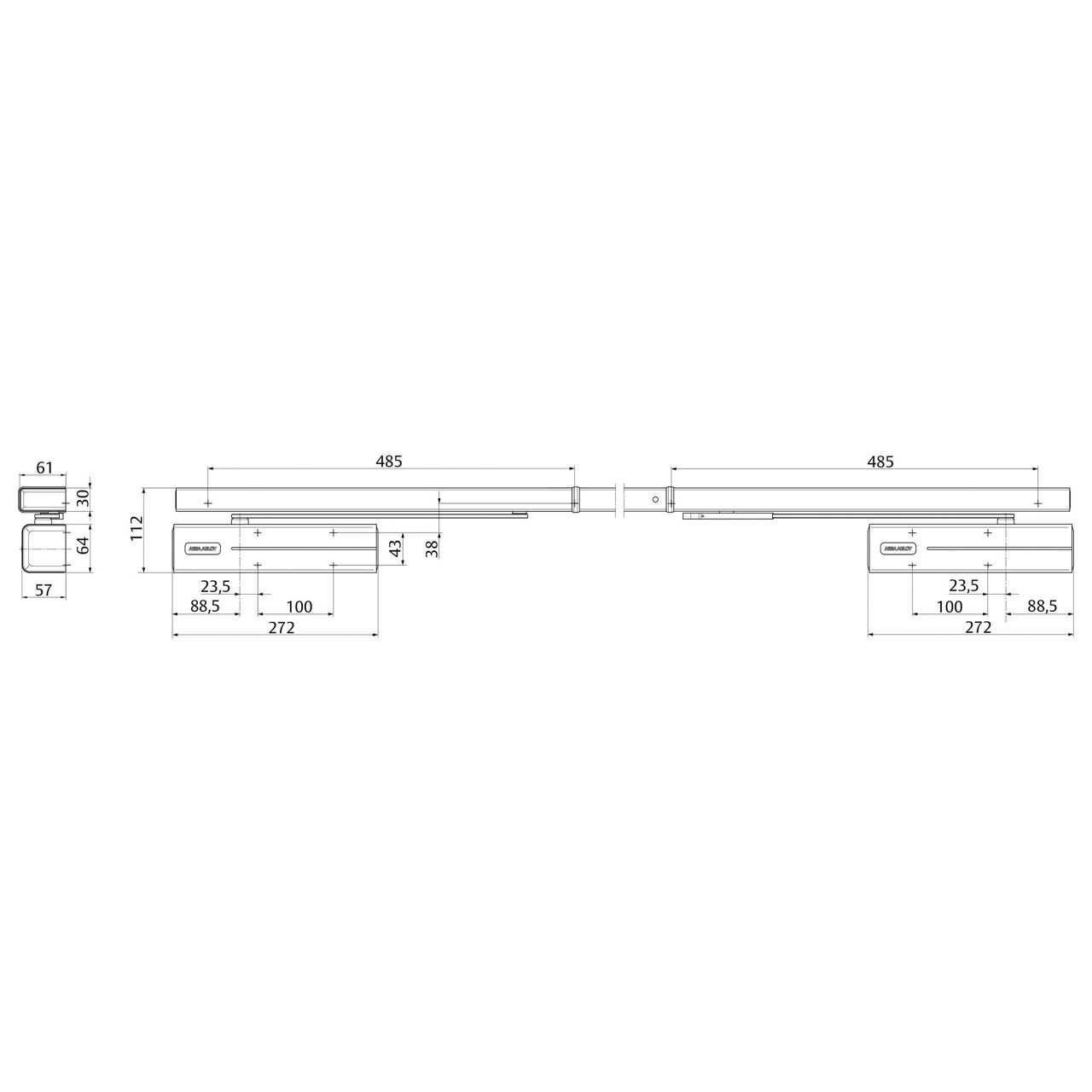

Guide rail G-CO-CS

Facts for door closer see DC700
