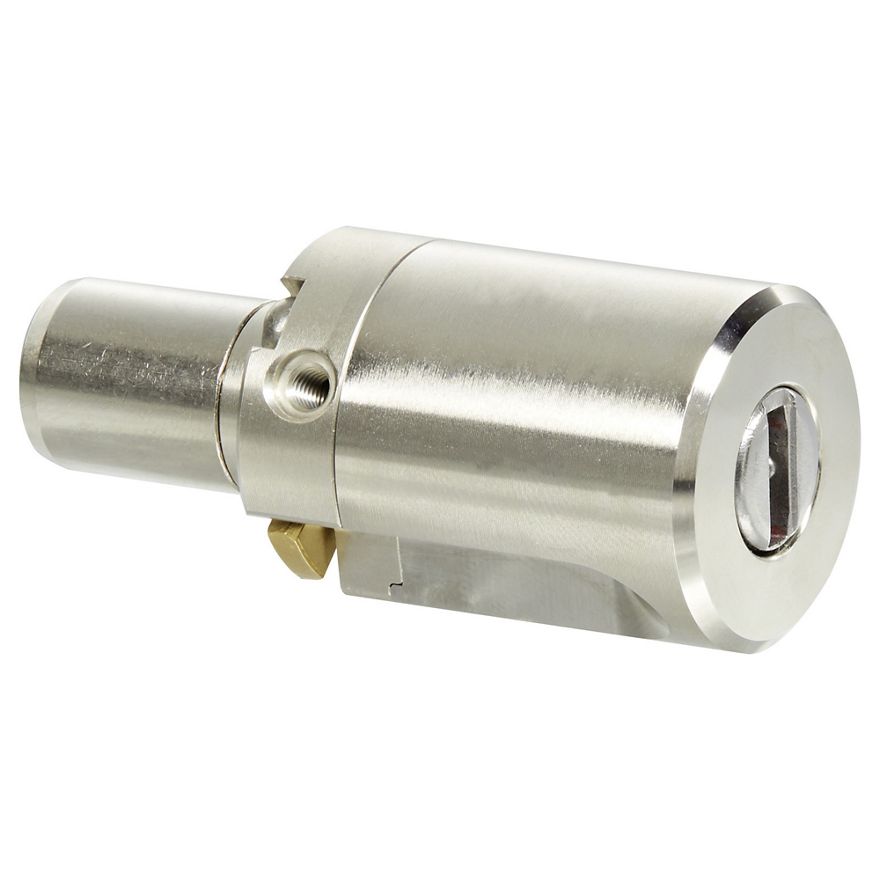

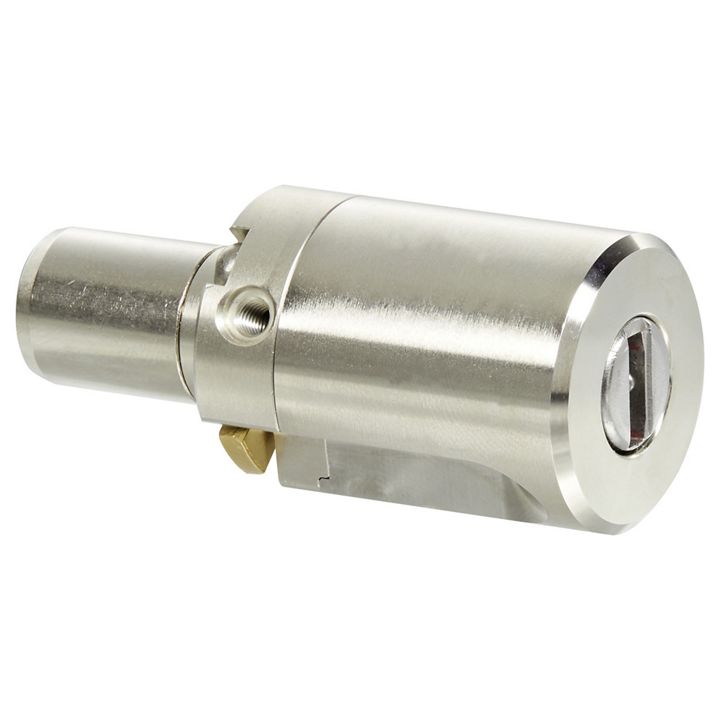

Push cylinder eCLIQ NC40

Product description

  • Available as electronical version (V=)
  • Standard finish, satin nickel-plated (OF=MV)
  • Special cylinder for application in closing sleeves optimal for use in glas sliding doors e.g. in conjuction with KESO closing sleeves G.052
  • 22 mm diameter
  • Available with 12, 18 or 22 mm hub (AUS=12, AUS=18, AUS=22)
  • Maintenance-free for up to 200,000 cycles
  • Splash-proof IP54
  • Dust and rain cover available (SUR=1) IP55
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

  • 1 pressure cylinder

Ordering Information

  • The closing sleeve is not included
