Escape door locking system 352M.80

Product description

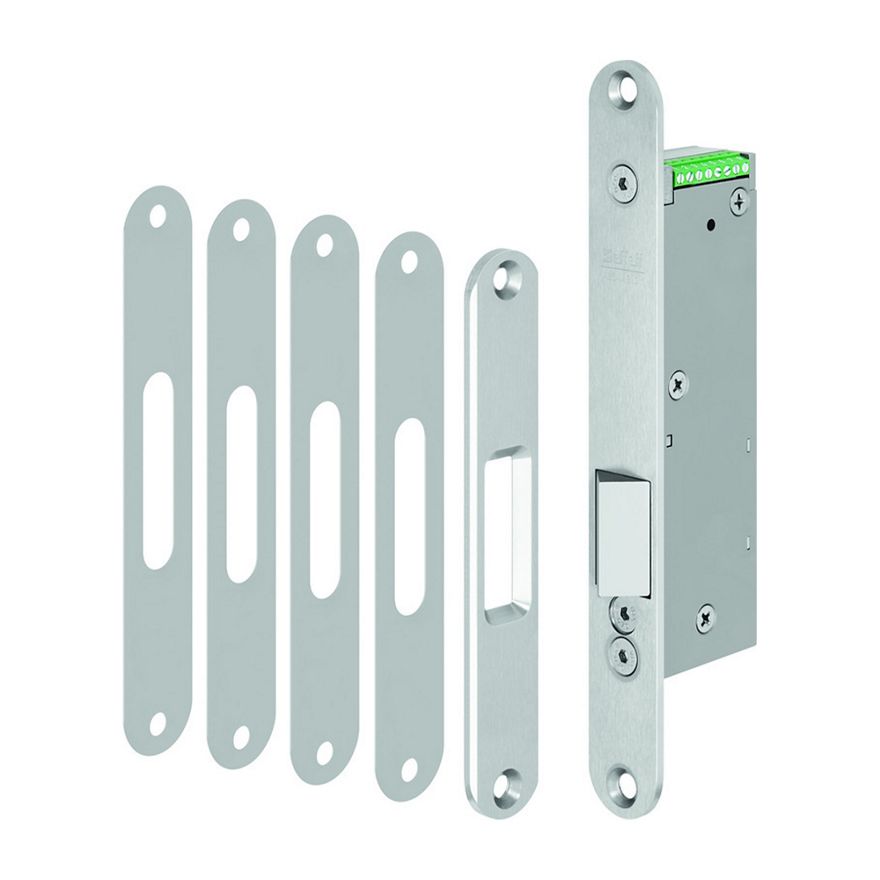

Version with strik plate, counterpart and spacer plates

Mainly suitable for use in wooden frames/doors

Overview of Advantages

• Very quiet locking and unlocking, silent during permanent release
• The 352M escape-door locking system is especially designed as an additional locking system to secure doors along escape routes
• Suitable as an additional locking element for instalation in fire doors
• Example for further usage options: double action swing door, revolving doors, interlocking doors, special doors
• Universal installation position, vertical and horizontal in the door frame or door leaf
• Holding force of 5000 N
• Safe unlocking under pre-load of up to 5000 N
• 12V DC to 24V DC multi-voltage, controlled DC voltage
• Monitoring contact and armature contact integrated
• Compatible for installation with models 351U and 351M
• Scope of delivery
• Supply includes round striking plate, round counterpart and four round spacer plates

Note

Suitable for fire doors according to British Standard BS476
