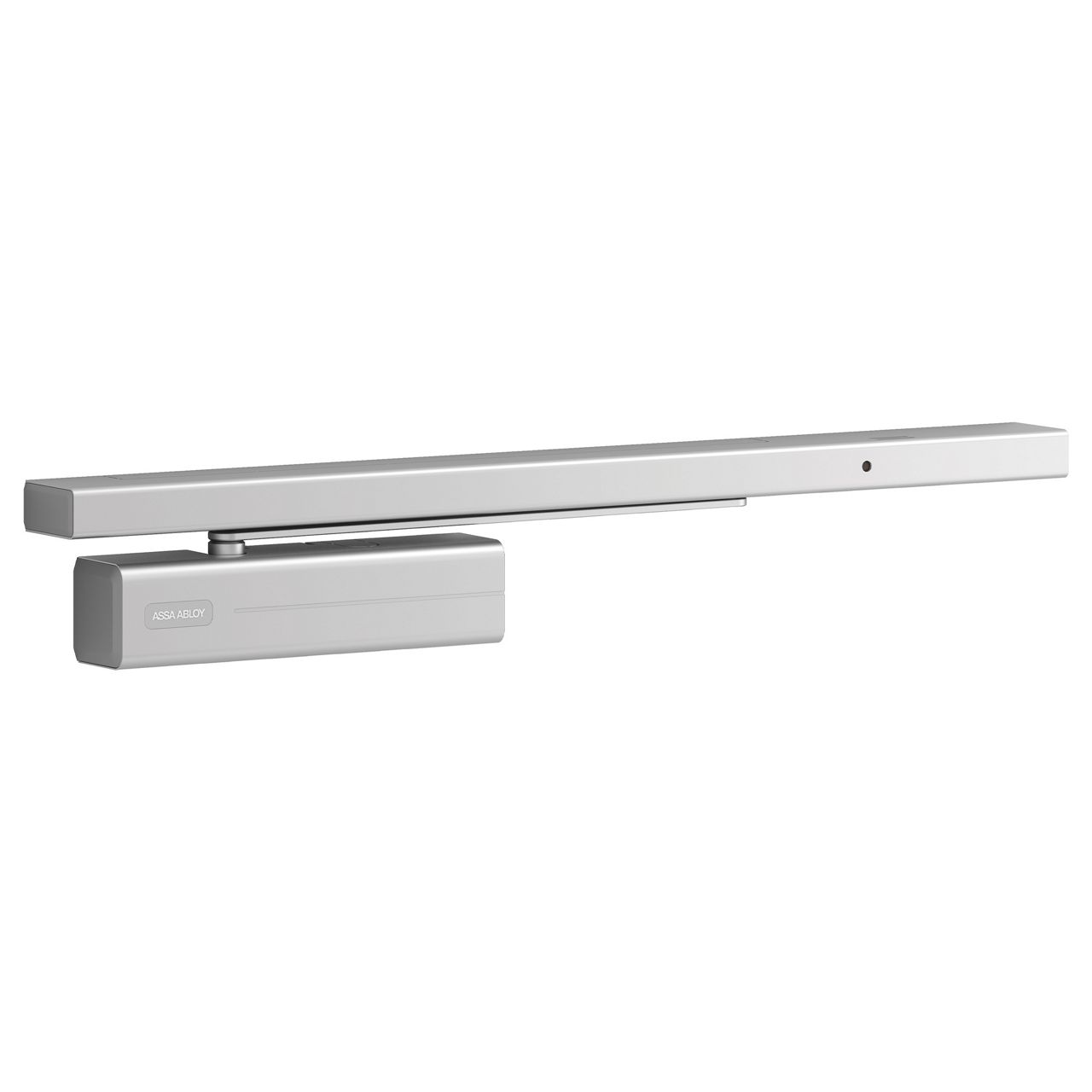

G-S guide rail for DC700 door closer

With smoke detector and electromechanical hold-open device, for single-leaf doors up to size EN 6 (1400 mm)

Door closer with Cam-Motion® technology with electro-mechanical hold-open device and smoke detector

Product description

Door closer with Cam-Motion® technology with electro-mechanical hold-open device and smoke detector for single-leaf doors, approval Z-6.500-2364
Smoke switch with contamination indicator and alarm threshold monitoring
Integrated 230 V AC power supply
All components fully integrated into guide rail
Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
Meets the requirements of DIN SPEC 1104 / CEN15894
Suitable for fire and smoke protection doors up to 1400 mm wide

Overview of Advantages

Optical smoke detector after scattered light principle
Status displayed on LED: operational mode, alarm, maintenance
Integrated potential-free alarm relay
Can be activated by a fire alarm system
Connectivity for manual release buttons and ceiling smoke detectors
Electro-mechanical hold-open device
Continuously adjustable holding force
Traversable hold-open device, continuously adjustable between ca. 80°-130°
Can be used for left and right-handed doors
Standard installation types on the hinge and non-hinge side
Same drilling template as standard guide rails
Axis continuously height adjustable up to 14 mm
Closing speed, latching speed and backcheck adjustable via front facing regulating valves
Variable adjustable closing force
Thermodynamic valves for consistent performance
Effective backcheck and latching speed range adjustable
Optional mounting plate, suitable for fire and smoke protection doors
Entry-point in surface- and flush-mounted
Standard colours: silver EV1, white similar to RAL9016, stainless steel design
Customised finishes available on request
