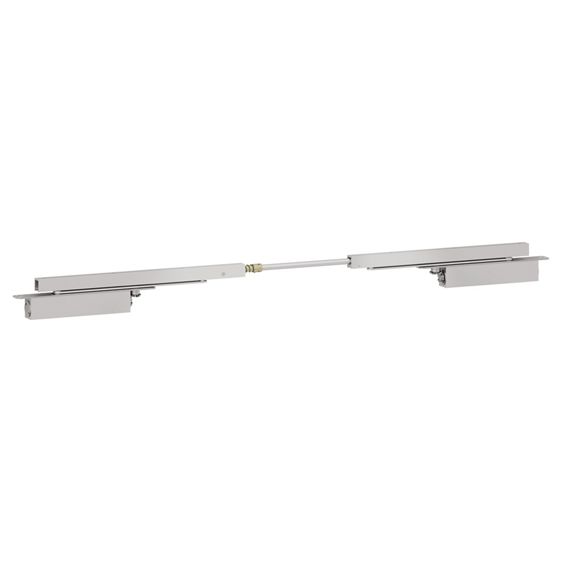

G881 concealed guide rail for DC860 door closer

Concealed door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator for double leaf doors

Product description

• Guide rail is certified in compliance with EN 1158, size 3-6
• Closer is certified in compliance with EN1154, size 1-5
• Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
• Meets the requirements of DIN SPEC 1104 / CEN15894
• for double-leaf fire and smoke protection doors with a hinge distance of 1350 – 2500 mm

* Additional verification of suitability required for the respective fire or smoke protection door

Overview of Advantages

• Concealed guide rail with integrated mechanical door coordinator based on wedge system
• Closing speed and latching speed adjustable from top facing regulating valves
• Built-in backcheck
• Thermodynamic valves for consistent performance
• Versions with 4 mm and 8 mm spindle extensions
• Large range of applications
• Standard colours: silver EV1
• Customised finishes available on request

Note

• Concealed guide rail G881

Facts for door closer see DC860

• Additional verification of suitability required for the respective fire or smoke protection door
