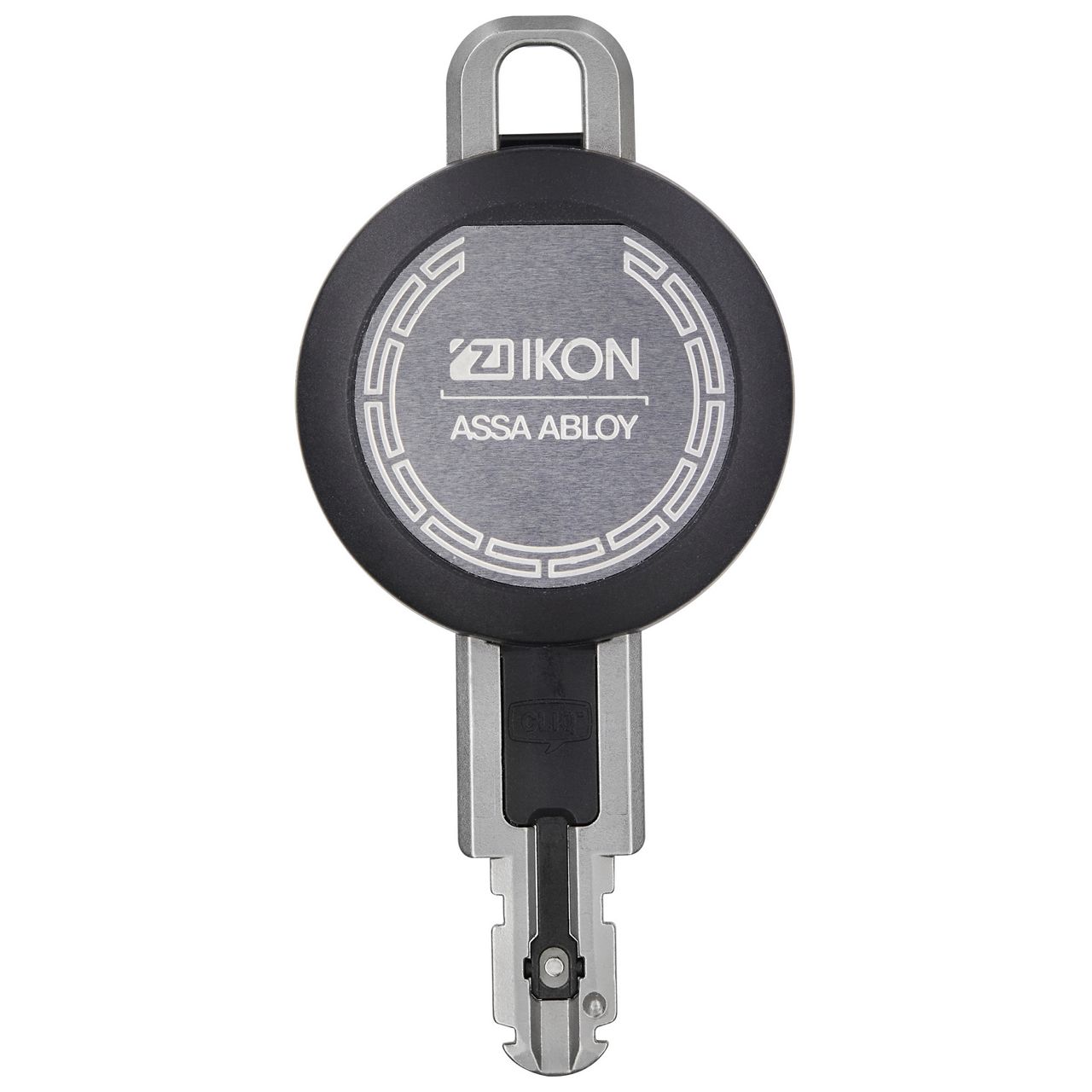

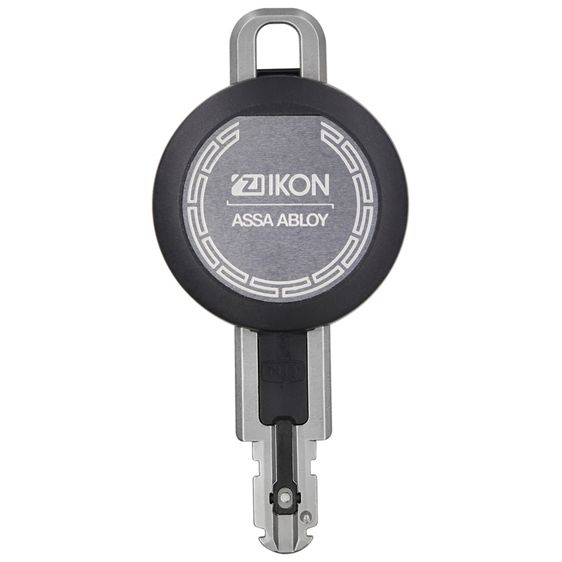

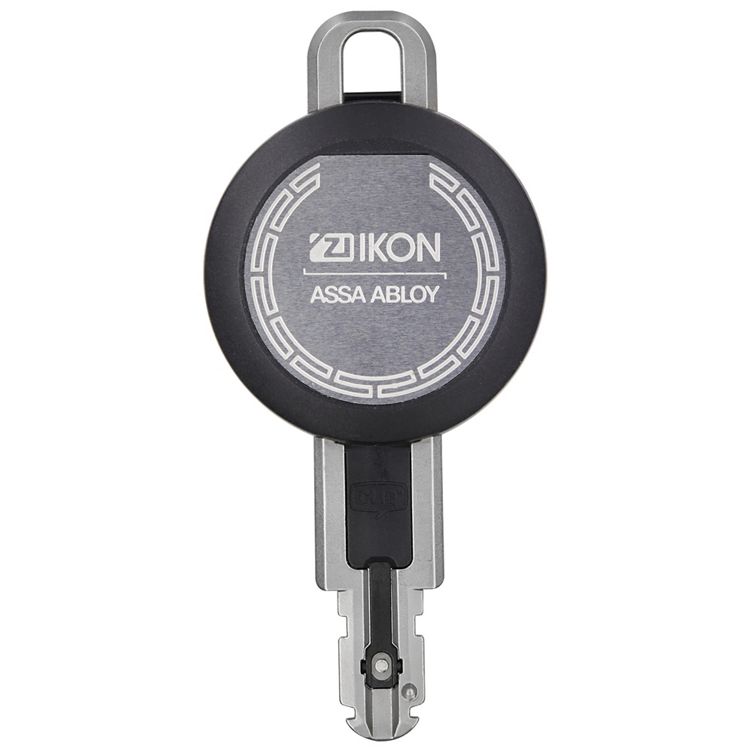

Key eCLIQ N109,V=E3

Overview of Advantages

  • Ideal in combination with the wall programming devices and the mobile programming device
  • Option for direct programming of authorisations without approaching cylinders

Product description

  • Electronic key-unique and locking system encryption
  • With added time function and event memory for the last 1,000 locking operations
  • Key memory capacity 1,500 cylinder / cylinder groups
  • Option for direct programming of authorisations without approaching cylinders
  • Saves programming procedures
  • Ideal in combination with the wall programming devices and the mobile programming device
  • LED indicator and acoustic signalling for functional operation and battery status
  • The data and power transmission to the cylinder is contact based
  • The data transmission to the cylinder is highly encrypted
  • Temperature range 0° C to +70° C
  • Protected against temporary immersion in water (IP67)
  • Powered by commercially-available lithium battery (CR2450)
  • For 100,000 locking operations (service life of about 10 years)
  • The battery can be easily changed by the user without tools
  • Standard colour for battery cover: black (RD=SW)
  • Other colours for battery cover: blue (RD=BL), yellow (RD=GE), green (RD=GN), grey (RD=GR), red (RD=RT) and orange (RD=OR)

Optionally available with a RFID tranponder chip (AUS=LEGICPRIME, AUS=LEGIC ADVANT, AUS=MIFARE CLASSIC, AUS=MIFARE DESFIRE EV1, AUS=MIFARE DESFIRE EV2, AUS=EM4102, AUS=HITAG 1 or AUS=HITAG 2) integrated in the battery cover

Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

  • 1 electronic user key, including battery

Note

  • The key can be adjusted when ordering or later by a colored battery cover or a transponder battery cover (NZ02)
