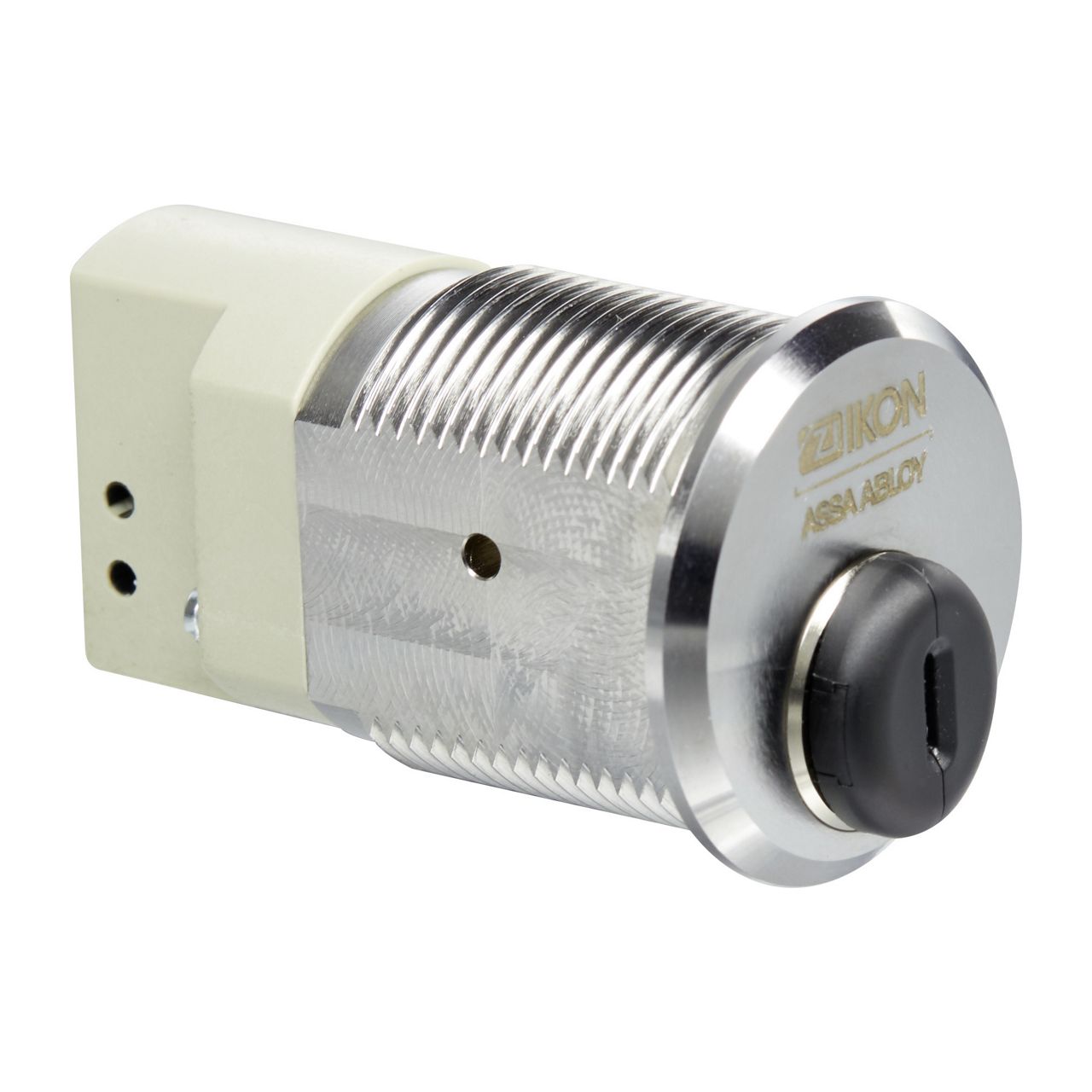

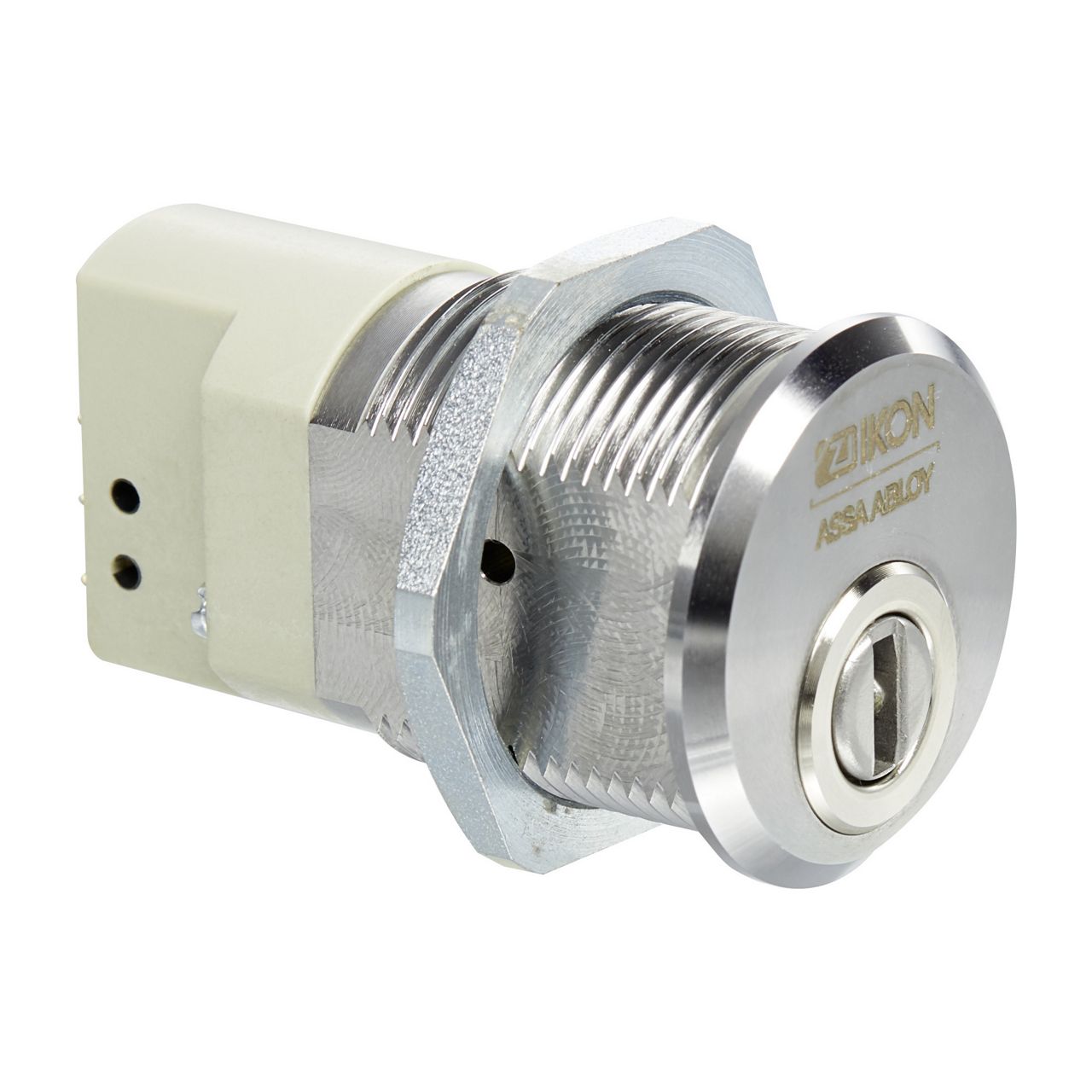

Switch cylinder eCLIQ N511

Product description

• Available as electronical version (V=)
• Switch cylinder with 2 key withdrawal positions (0° and 60°)
• Brass cylinder housing components
• Standard finish, satin nickel-plated (OF=MV)
• Maintenance-free for up to 200,000 cycles
• Dust and rain cover available (SUR=1) IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
• Two microswitches F4T 7-GP UL (Burgess) (VAC 250 V/ resistive load 5A, VAC 250 V/ inductive load 0.5 A)
• Key rotation 60°
• A rotation actuates a switch device (e.g. underground car parks, etc.).
• Splash-proof IP54
• Fixing with M30x1.5 housing nut

Scope of delivery

• 1 switch cylinder
• 1 housing nut M30 x 1.5 x 4
