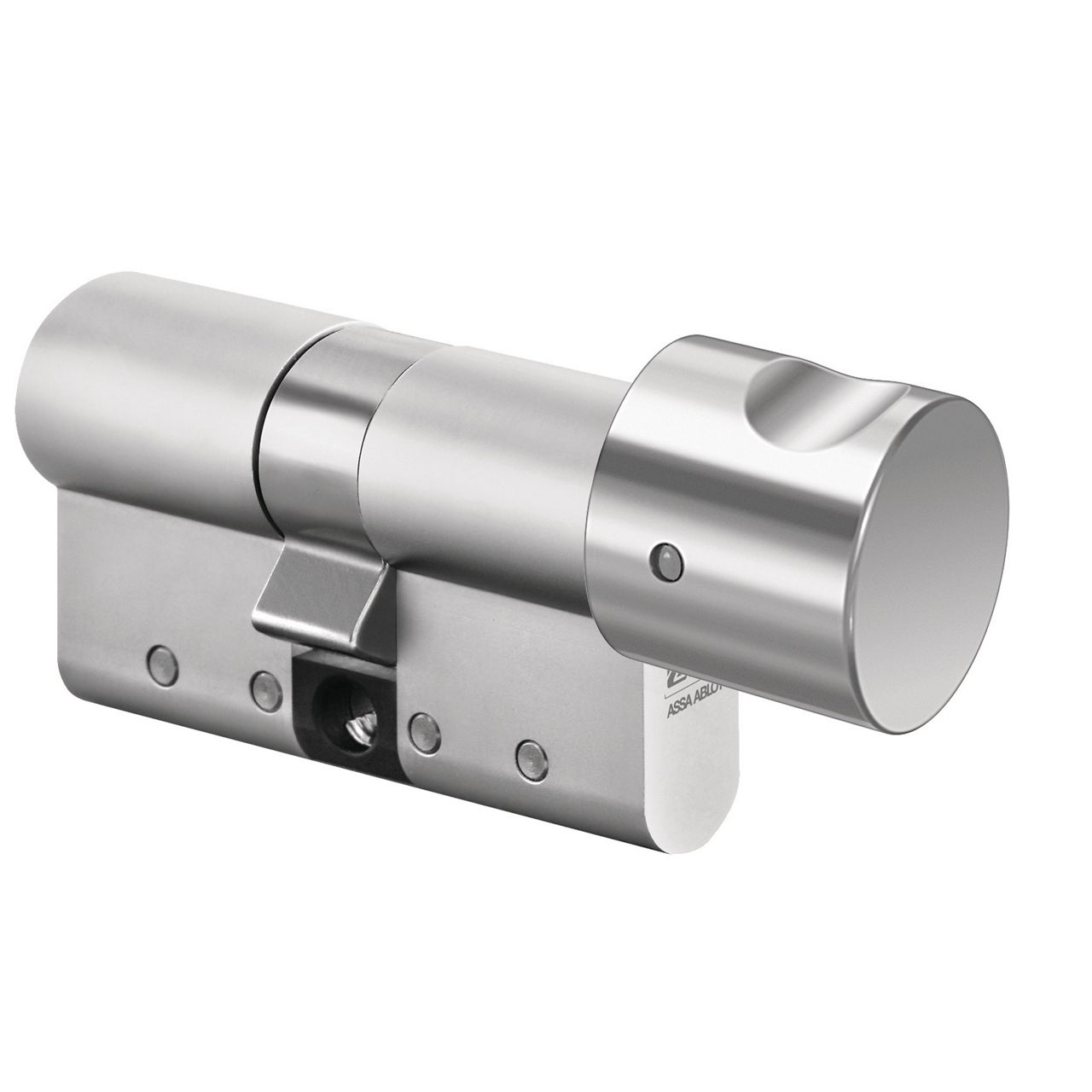

Profile-knob cylinder eCLIQ N534,KNF=9

Product description

  • Available as rotary secured or electronical version (V=)
  • Brass cylinder housing components
  • Standard finish, satin nickel-plated (OF=MV)
  • Standard knob colour nickel silver (KNF=9F2)

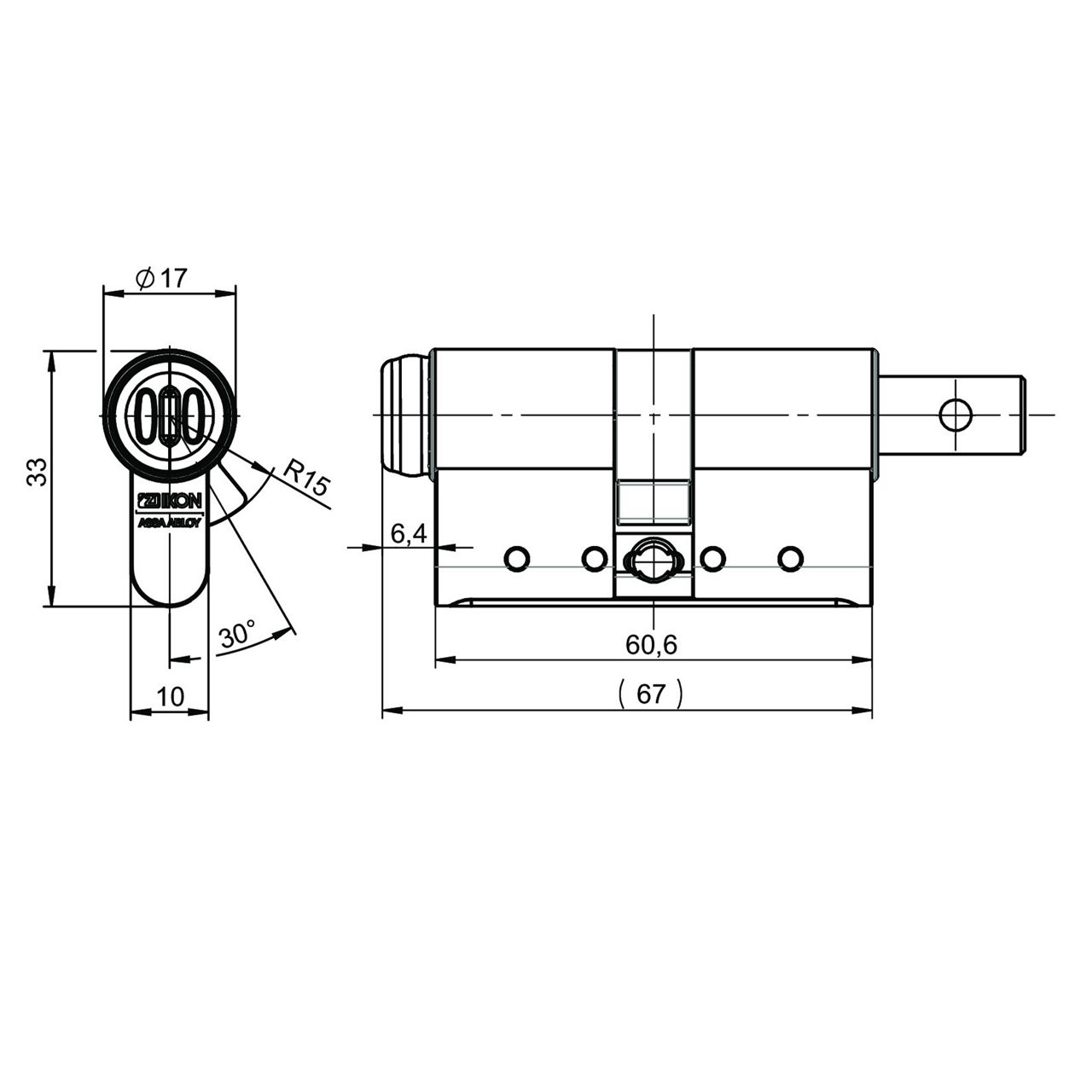

  • Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system

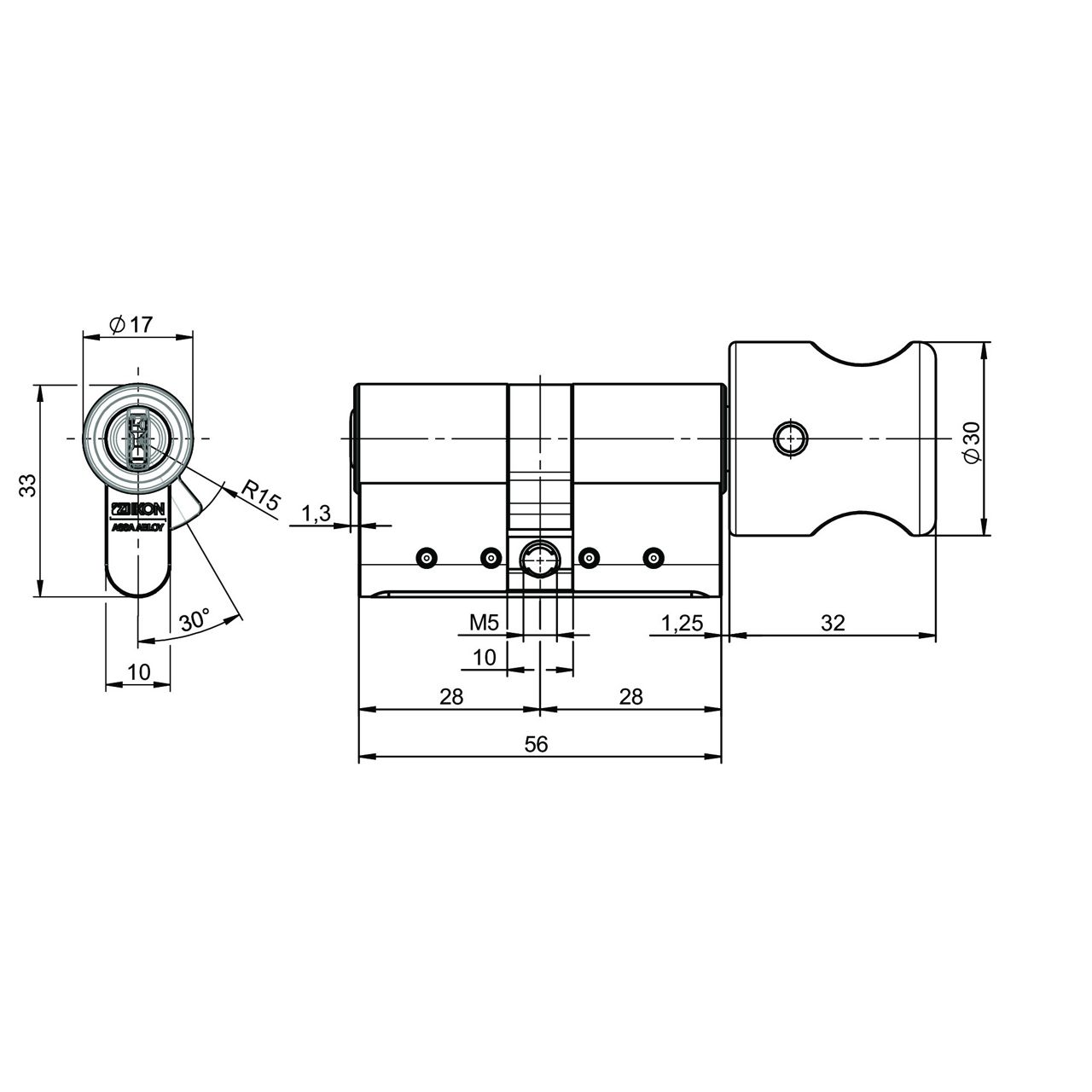

  • Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
  • Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX

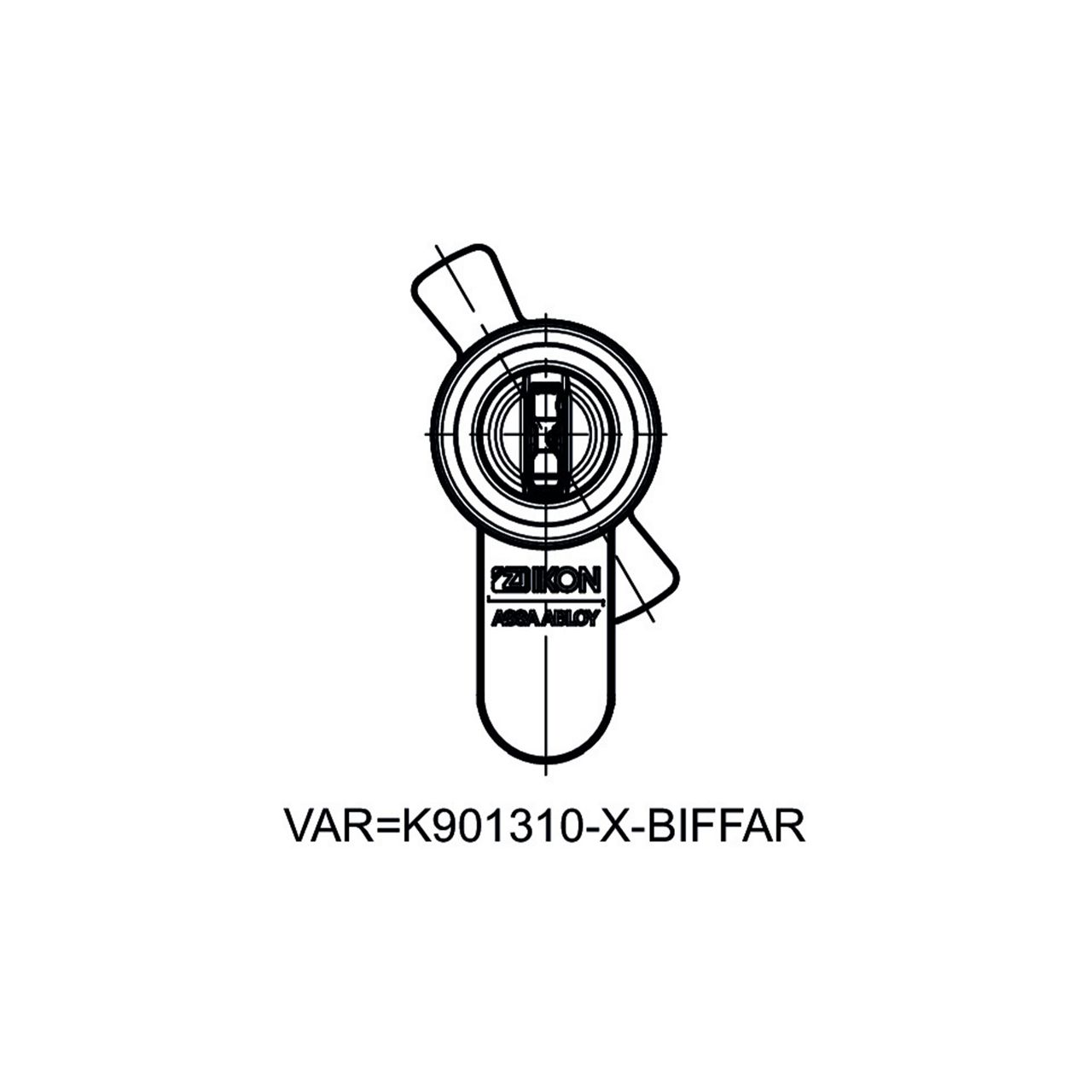

  • Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
  • Optionally available with anti drilling protection class 2 (AB=2)
  • Cam made of break-proof, corrosion-resistant stainless steel
  • Maintenance-free for up to 200,000 cycles
  • Splash-proof IP54
  • Dust and rain cover available (SUR=3) IP55

Optionally VdS★★★ (SZ=VDS-BZ+, AB=3)

Optionally DIN EN 15684 with anti drilling protection class 2 (SZ=DIN, AB=2)

Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Optionally available with anti-killing spree function: With this function the knob is disengaged as the key is entering the cylinder on the other side (VAR=1901509+3+ENTKUPPL.)

Scope of delivery

  • 1 profile-knob cylinder
  • 1 cylinder fixing screw M5 x 85 mm

Ordering Information

  • The knob is always on the inside of the cylinder (B)
