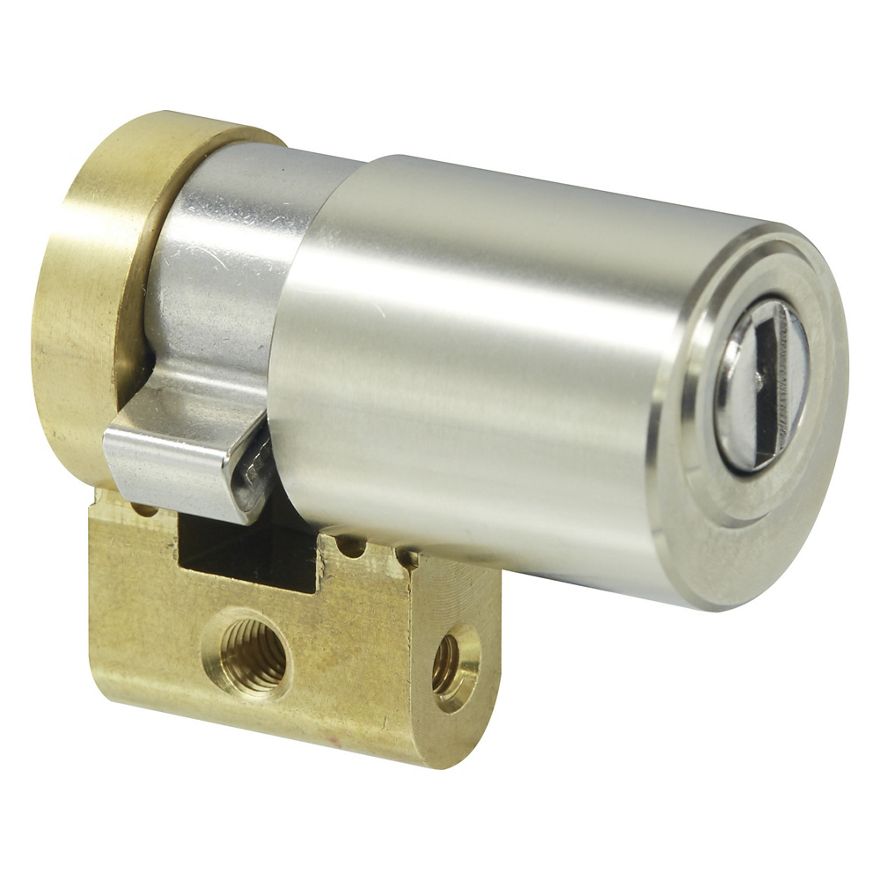

N482

Product description

Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Basic cylinder length of 30 mm (A) (L=30) - Other installation lengths available - Adaptable housing kit
Standard locking cam position (SST=8x45); differing locking cam position (SST=12x30) available
Standard with rigid connection VAR=STARR and free adjustable locking cam SST=FLEX
Optional with SST=FZG possible
Free-wheeling function only without VAR=STARR
Optionally available with anti drilling protection class 2 (AB=2)
Cam made of break-proof, corrosion-resistant stainless steel
Maintenance-free for up to 200,000 cycles
Splash-proof IP54
Dust and rain cover available (SUR=1) IP55
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery
