N488

Product description

• Available as rotary secured or electronical version (V=)
• Brass cylinder housing components
• Standard finish, satin nickel-plated (OF=MV)

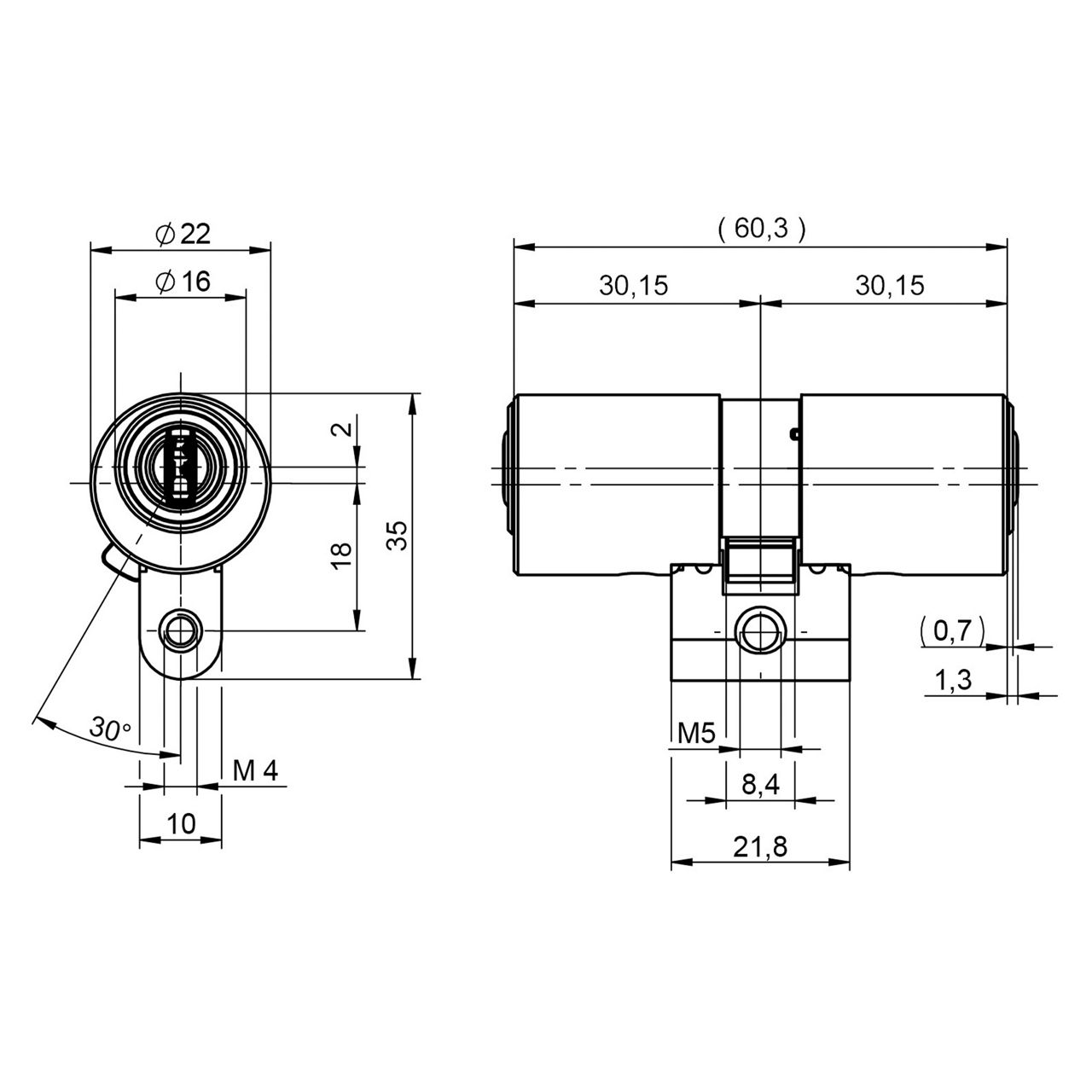

• Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
• Standard locking cam position (SST=30°); differing locking bit position available
• Optionally available with anti drilling protection class 2 (AB=2)
• Both side locking (GE=BS) and 360° free-wheeling function as standard
• Cam made of break-proof, corrosion-resistant stainless steel
• Maintenance-free for up to 200,000 cycles
• Splash-proof IP54
• Dust and rain cover for one side available (SUR=1) IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

• 1 cylinder fixing screw M5 x 85 mm
