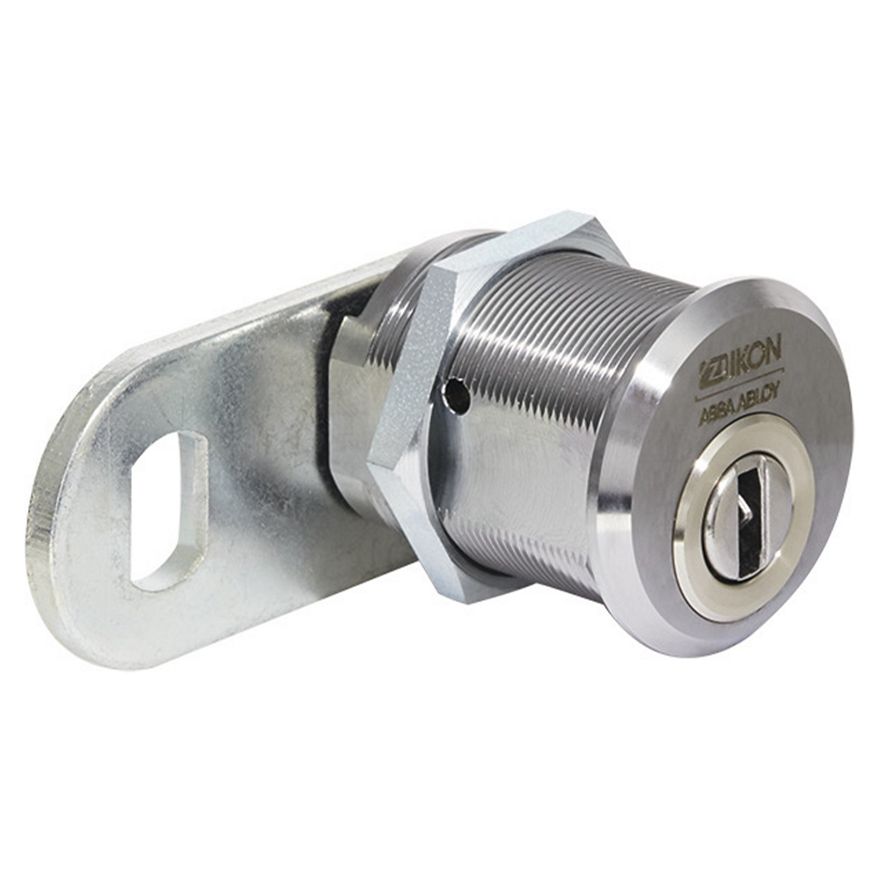

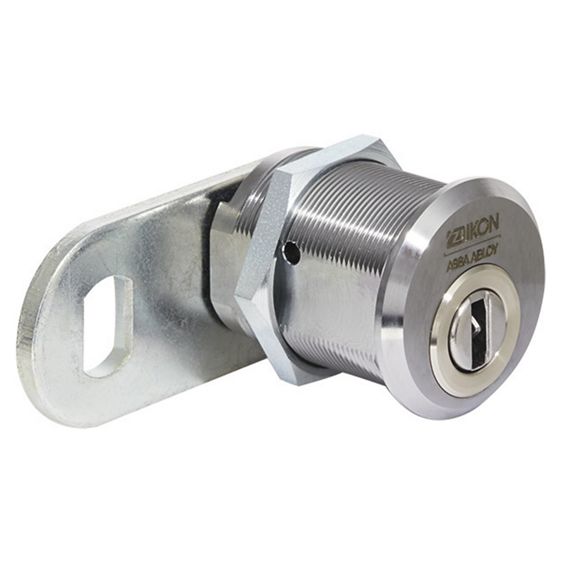

Locking lever cylinder eCLIQ N923

Product description

• Available as rotary secured or electronical version (V=)
• Brass cylinder housing components
• Standard finish, matt chrome-plated (OF=MC)
• Dimension in mm A, L, B: 38, 29, 21
• Fixing with M25 x 0.75 housing nut
• Standard locking lever (SLHB=1645009)
• Locking path and locking lever path 90º left or right
• Key withdrawal when locking lever is closed
• Maintenance-free for up to 200,000 cycles
• Dust and rain cover available (SUR=1) IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

• 1 locking lever cylinder
• 1 housing nut M25 x 0.75 x 4
• 1 core nut, M8 x 0,75 x 3

Ordering Information

• Please include the desired locking path (SST=) in your order.
