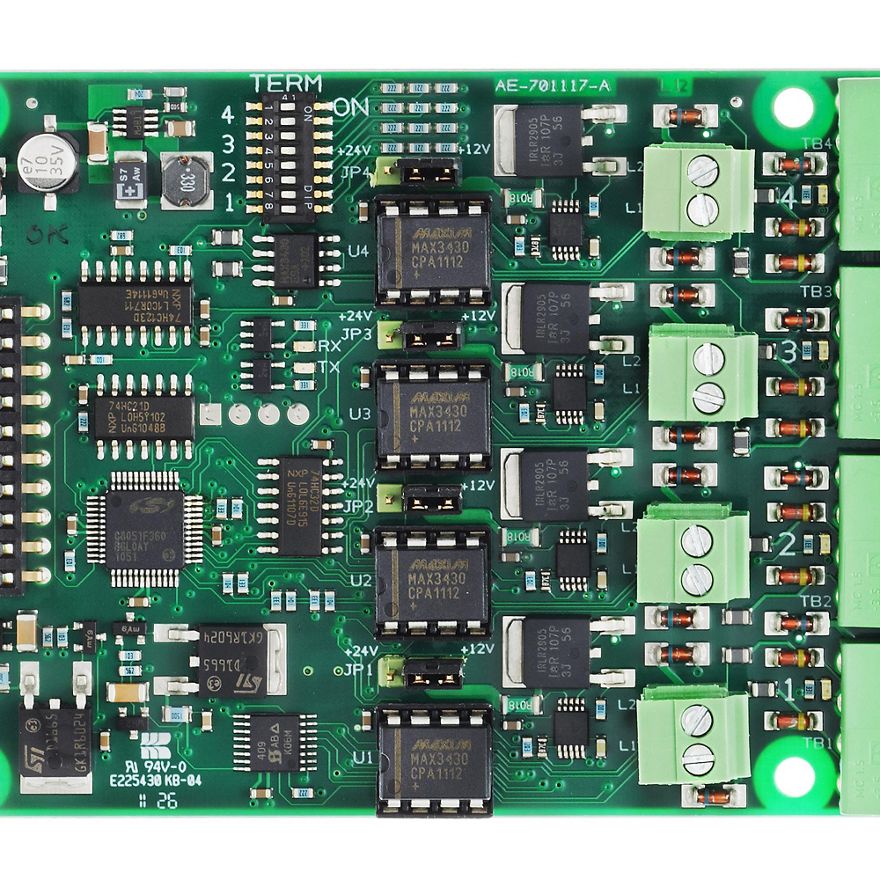

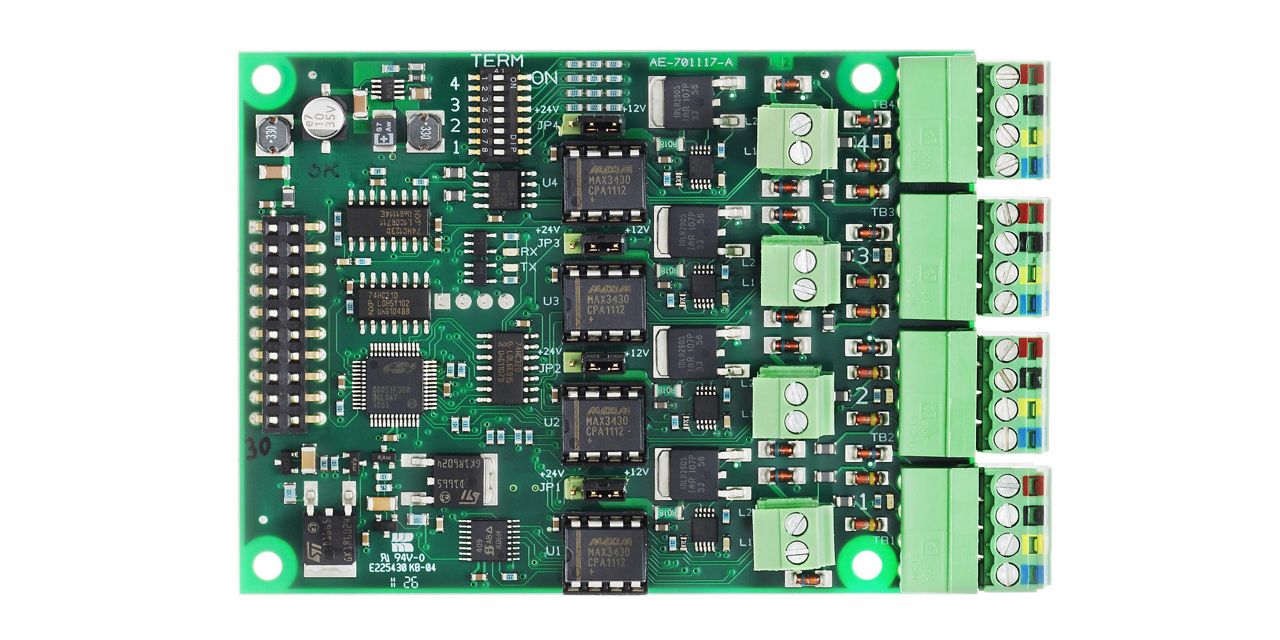

Styra Porttelefonkort 4800

Entry phone card for installation on Styra 3000.

Features and advantages

• Supports four doors equipped with Ringa entry phone. (Door 5 - Door 8).
• Four A485 ports equipped with fuses.
• Saves the expense of installing separate fuses.
• Facilitates cable installation
  install one Aptus cable 2 for each door environment.
• Reader, entry phone etc. can be connected directly to the port or via a door unit.
• Resources can be automatically connected to the appropriate door when programming from Multiaccess Styra.
• Power supply to A485 port can be controlled centrally. Practical, e.g. for maintenance.
• The A485 port can deliver 12V or 24V.
• Note: Before starting, check that the connected hardware supports 24V.
• Maximum of one Styra Porttelefonkort 4800 per control unit. Must always be combined with a Styra Porttelefonkort 4400.
