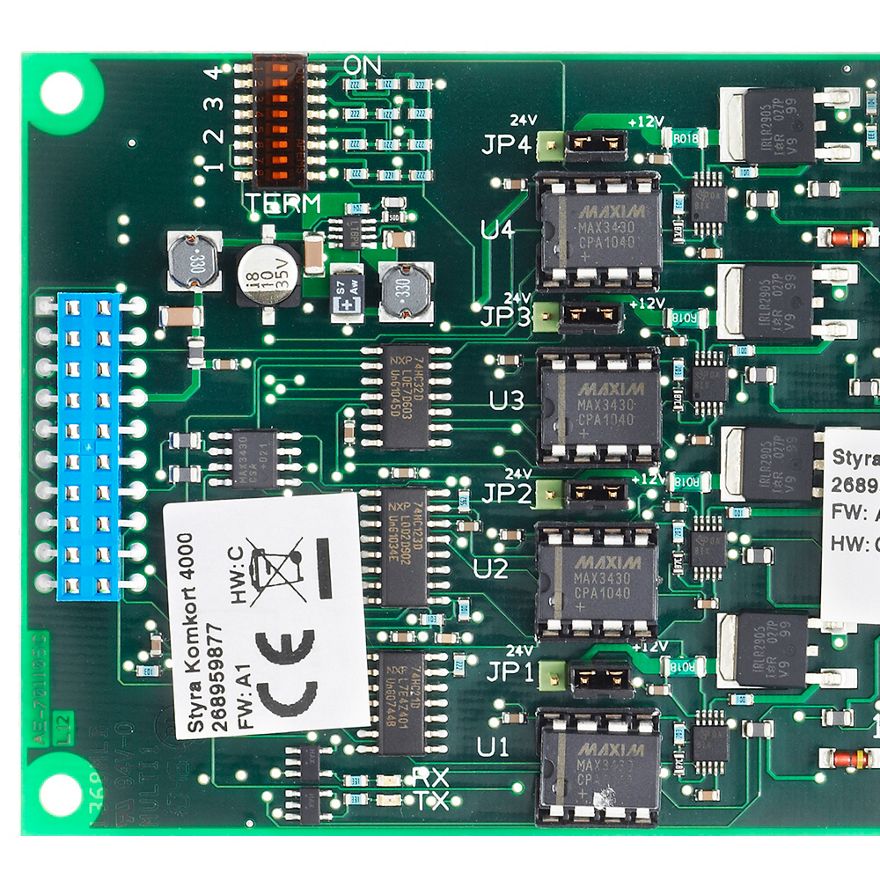

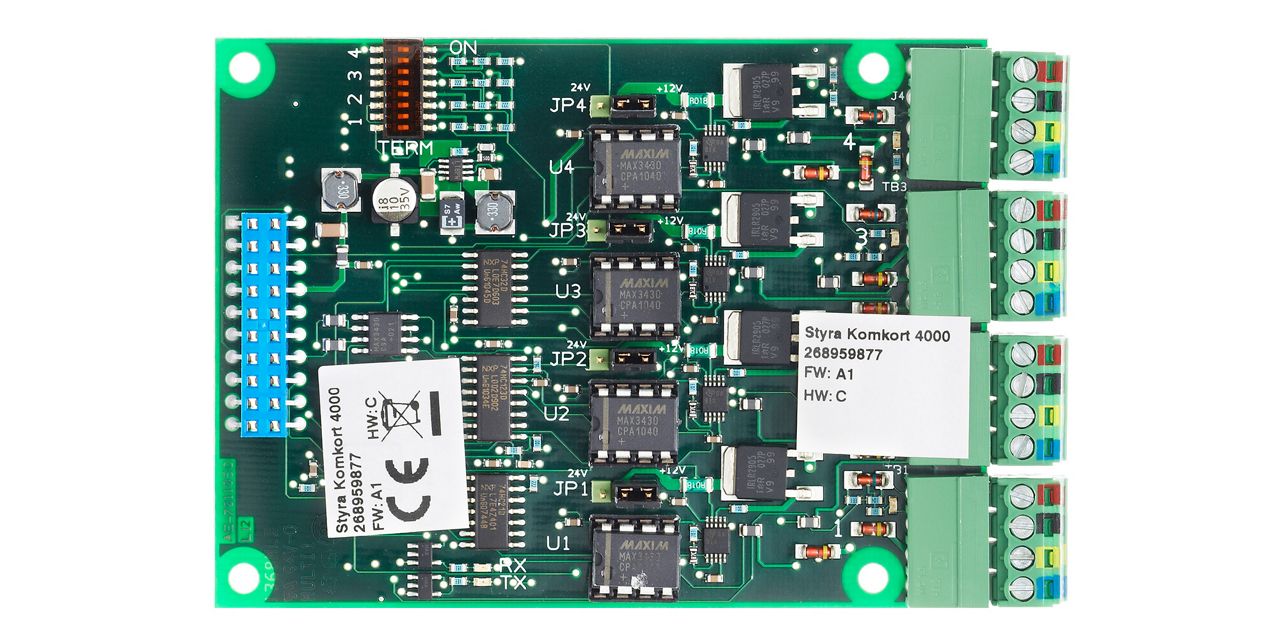

Styra Komkort 4000

Communication card for installation on Styra 3000

Features and advantages

• Four A485 ports equipped with fuses.
• Saves the expense of installing separate fuses.
• If a short circuit occurs on an A485 port, the other ports will not be affected.
• Facilitates cable installation by allowing one Aptus cable to be installed for each door environment.
• A reader etc. can be connected directly to the port or via a door unit.
• Resources can be automatically connected to the appropriate door when programming from
• Multiaccess Styra.
• Power supply to A485 port can be controlled centrally. Practical, e.g. for maintenance.
• The A485 port can deliver 12V or 24V.
• Note: Before starting, check that the connected hardware supports 24V.
• Max. two Styra Komkort 4000 concurrently per control unit
