Henderson Tangent

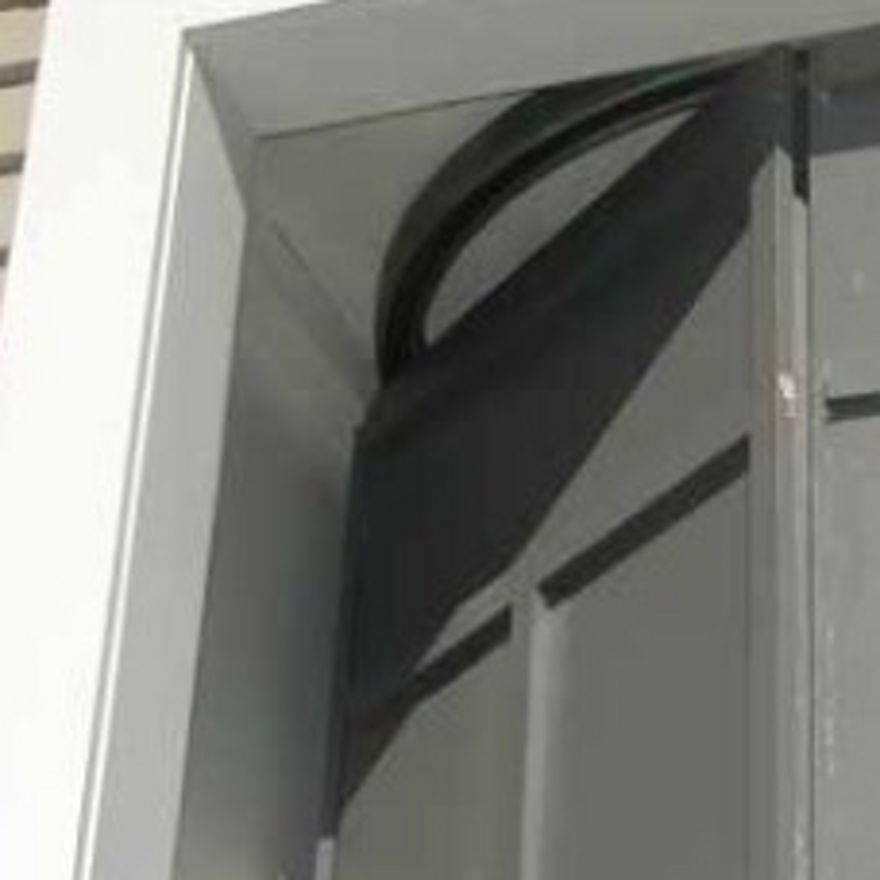

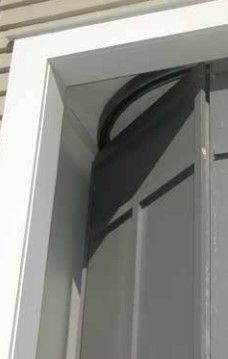

Tangent is a range of robust, top-hung hardware systems for wooden or metal doors. Ideal for commercial or light industrial application, the system caters for panelled, flush or glazed doors. Doors can fold to one or both sides of the opening or can be stacked behind a reveal if required.
Tangent 290 for doors weighing up to 35kg.
Tangent 301 for doors weighing up to 70kg.
Tangent 305 for doors weighing up to 80kg.
The system covers any width of opening allowing any number of folding doors to be used. Panels should be in units of four, six or eight and can be hinged to post or free floating. For applications where an odd number of doors is required, a swinging access door can be incorporated into a panel which is hinged to post. Alternatively an access door can be independently hinged to post. When the system is fitted externally a canopy is recommended (not supplied by ASSA ABLOY).
- Doors can fold to one or both sides of the opening
- Any number of folding doors can be used to cover an opening
- Three systems available in the Tangent range to cater for doors weighing up to 80kg
- Floating units should consist of an even number of leaves in units of four, six or eight
- Designed for doors that slide clear of the opening and park along the adjacent side wall, suitable where a bunched unit of parked leaves would be impractical.
- Ideal for larger or heavier commercial or industrial applications where a robust gear is required.
- To cover any width opening any number of units can use on a single track.
