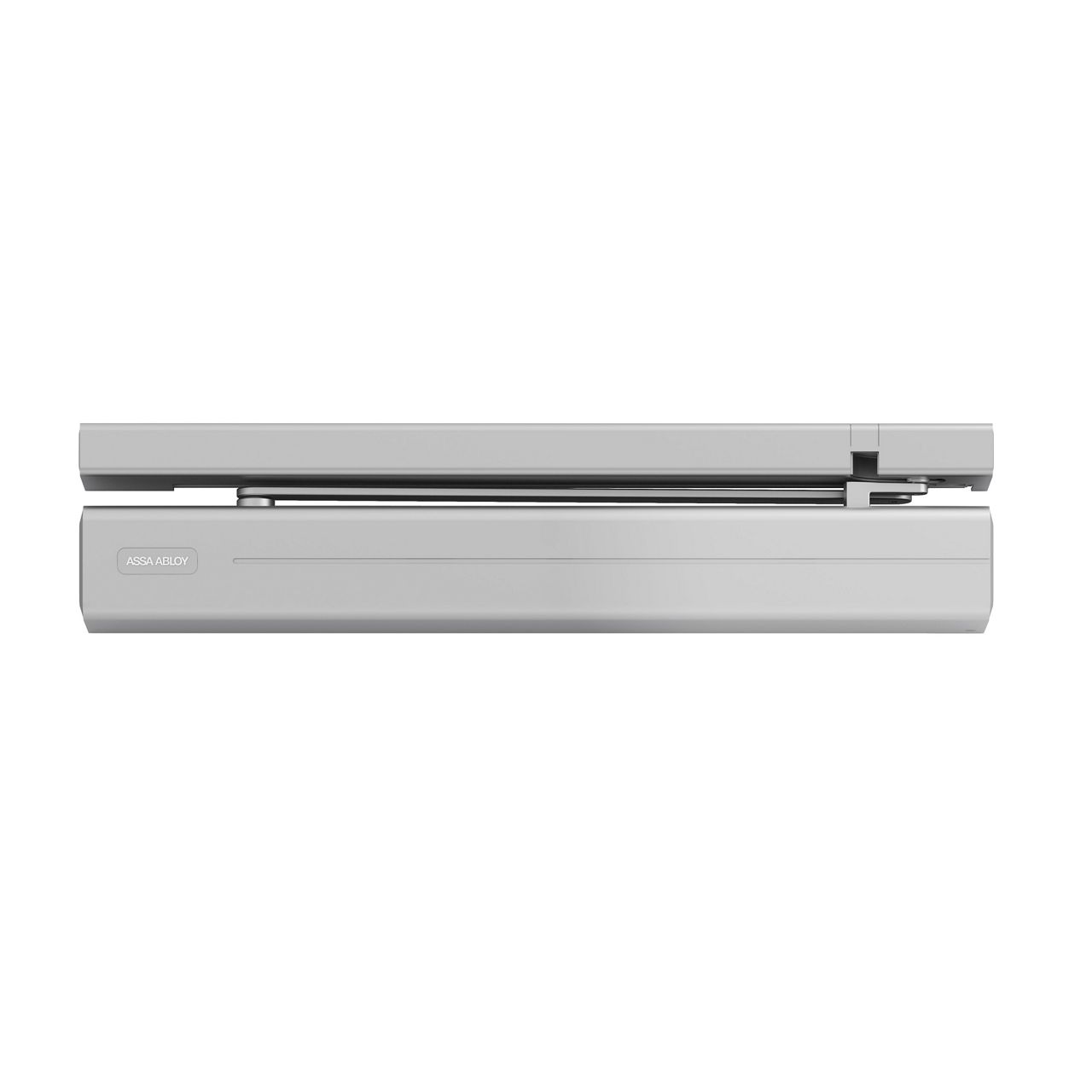

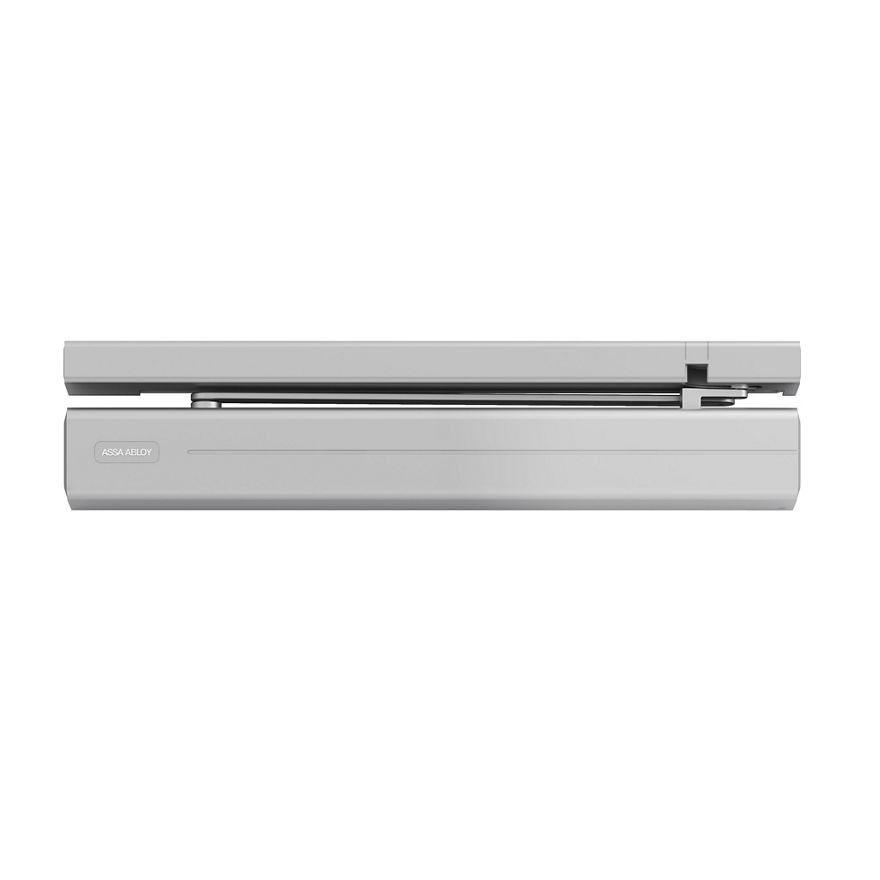

DC700G-CM – Cam-Motion® Closer with integrated Close-Motion®

Door closer with Cam-Motion® technology and integrated Close-Motion® element for safe and noiseless closing
Door can be pulled closed safely and quietly from an angle of ≤10⁰
Certified in compliance with EN1154, size 3-6
For single action doors up to 1400mm

Characteristics

Suitable for fire and smoke protection doors
Can be used on left and right-handed doors
Integrated Close-Motion® element in extended closer housing
Close-Motion® element with horizontal and vertical adjustment
Axis height adjustable up to 14mm
Thermodynamic valves for consistent performance
Closing speed, latching speed and back check adjustable via front facing regulating valves
Closing force configurable
Opening angle up to 170⁰
Effective backcheck and latching speed range adjustable

Finish
