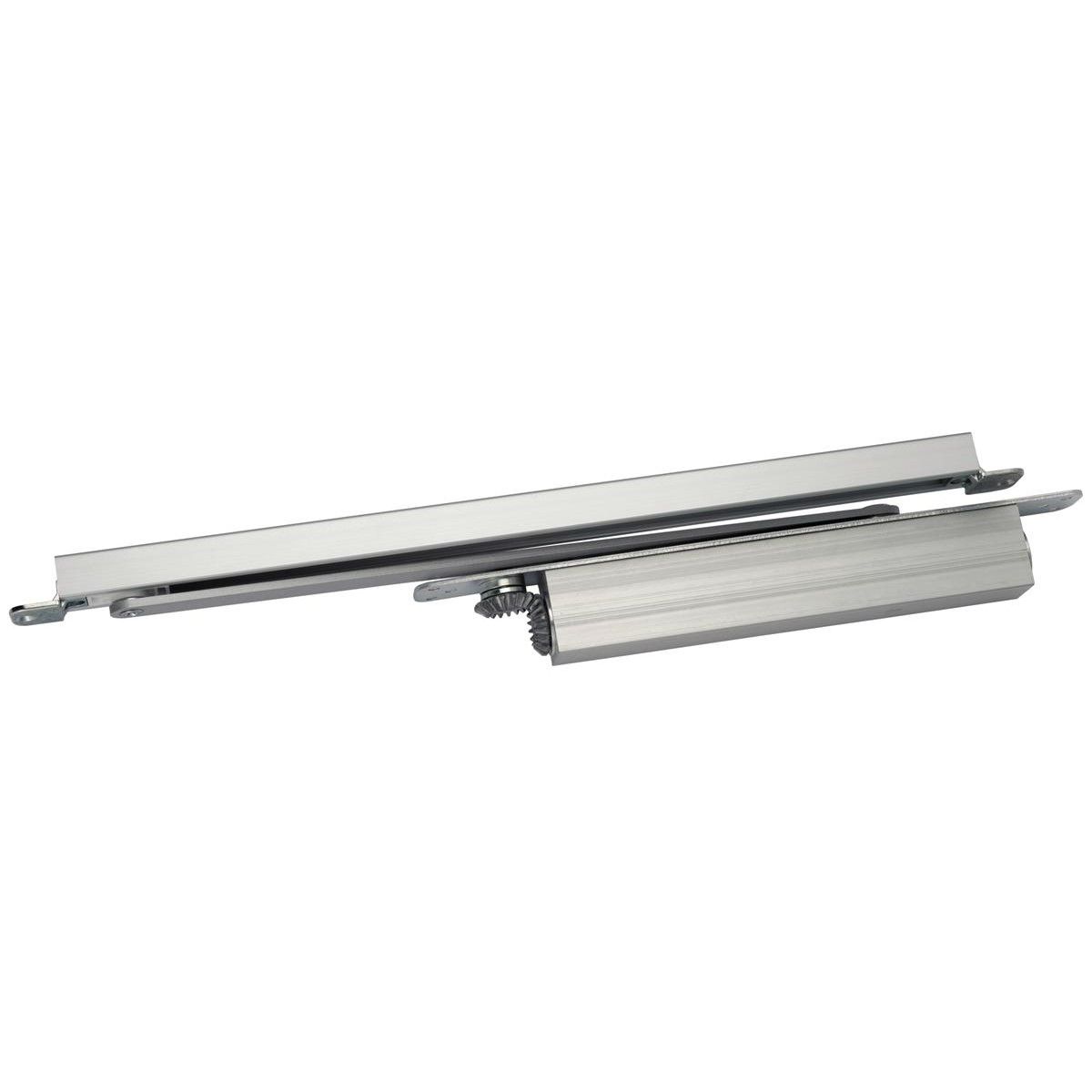

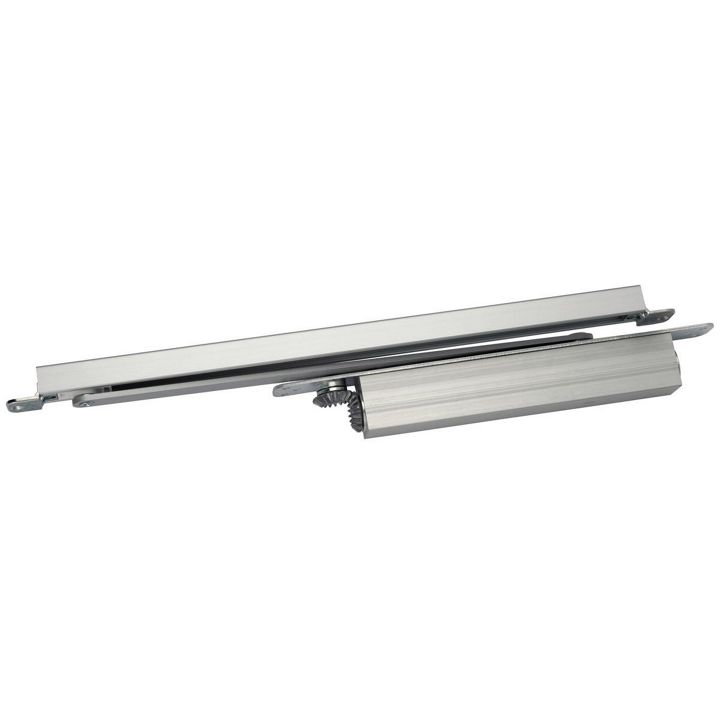

Lockwood 8014 Concealed Door Closer

Lockwood 8014 is a non handed cam action concealed door closer for heavy duty use.

Thanks to the cam construction it is extremely light to open but strong enough to close the door in every situation. The Lockwood 8014 can be adjusted to meet the requirements of the light opening resistance.

Features

• Certified to EN1154
• Adjustable closing force size EN 1-4
• Maximum door width 1100mm
• Maximum door weight 80kgs
• Separate adjusting valves for closing and latching speed, mechanical BC
• Pressure relief valve to protect against abuse
• Wide operating temperature range: -15 to 45°C
• Anodized aluminium door closer body
• Maximum opening angle 120°
• Minimum door thickness 40mm
• For fire door applications add 2616-153 opening damper

Fire Rated
The Lockwood Concealed Door Closers have been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Doorsets.

Part Number
8014SIL - Silver
