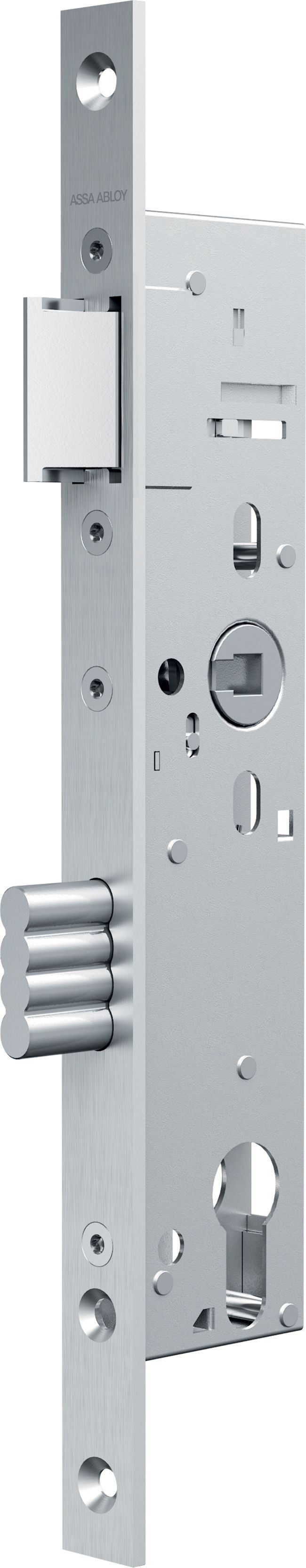

Sash lock for fire doors N1550

Overview of Advantages

• Environmental product declaration (EPD) in accordance with EN 15804
• Tested for 1,000,000 cycles and 300 kg door weight
• Compliance with EN 12209
• Continuous screw connection of fittings
• Suitable espagnolette integrated in the striking plate
• 20 mm bolt throw with a single rotation
• Also available as a fire protection version
• Latch DIN left/right reversible without tools
• Stainless steel faceplate
• Deadbolt with anti-tampering design
• Developed for Euro profile cylinder and Swiss round Profile cylinder

Product description

• OneSystem sash lock N1550 according to EN 12209 for single-leaf doors / approvedfor fire barriers according to EN 1634 / product-specific environmental productdeclaration (EPD) according to EN 15804 with article-specific parameters / testedfor 1,000,000 cycles and 300 kg door weight
