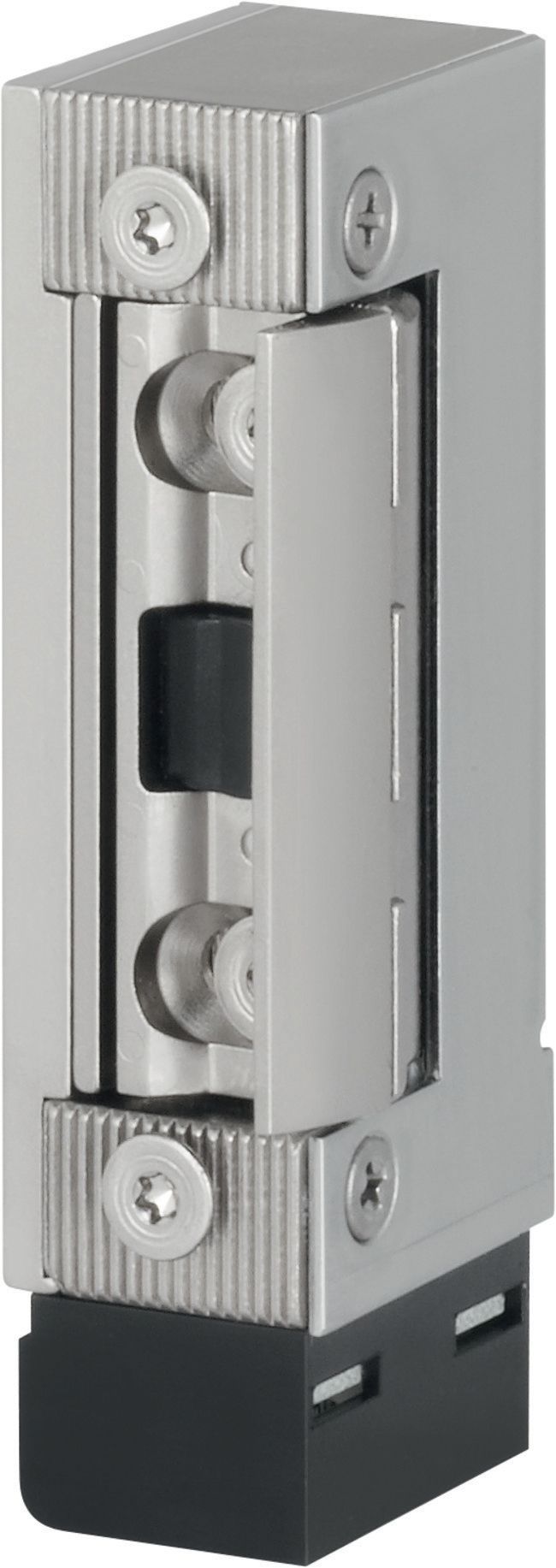

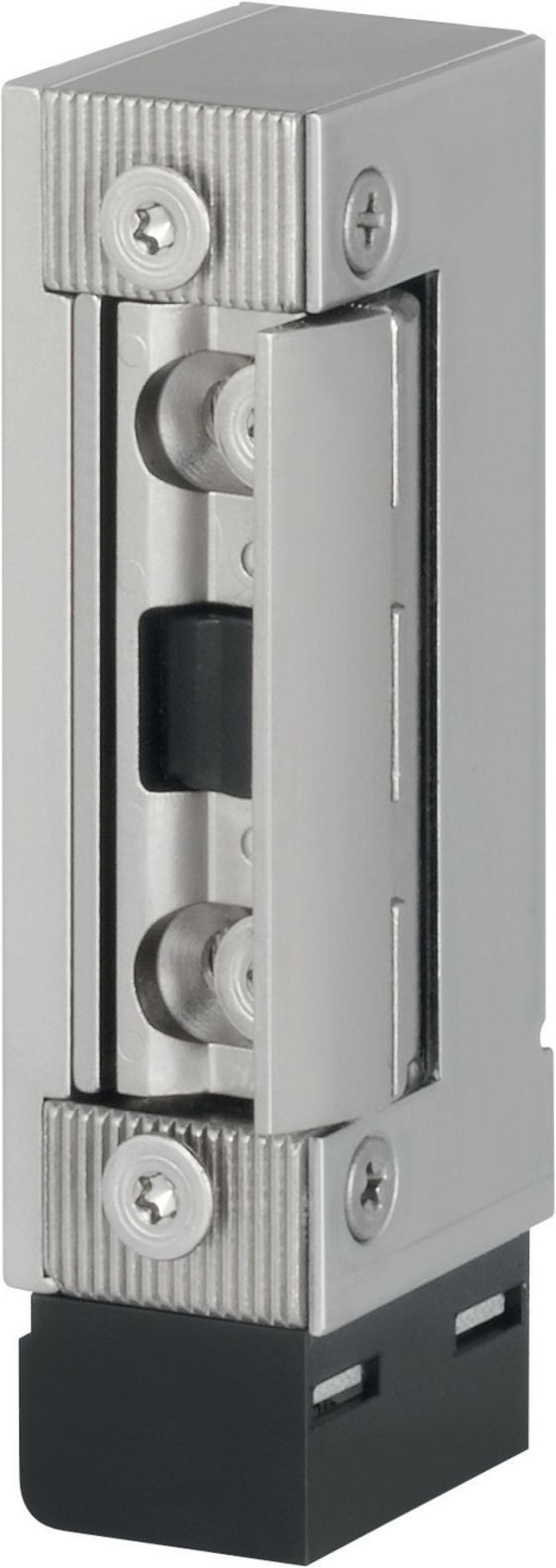

Escape door strike 332.80 (RRAKRR)

Product description

The compact construction of the effeff 332.80 allows rapid, straightforward mounting onto a wide variety of door frame and profiles.

Overview of Advantages

• Radius latch
• Compact design
• Min. 2000 N, max. 3000 N holding power according to prEN13633 and prEN 13637
• Unlocking under preload with 100% holding power
• Monitoring contact is potential-free and armature contact is non-isolated *
• Suitable for DL/DR and horizontal installation
• Low power consumption

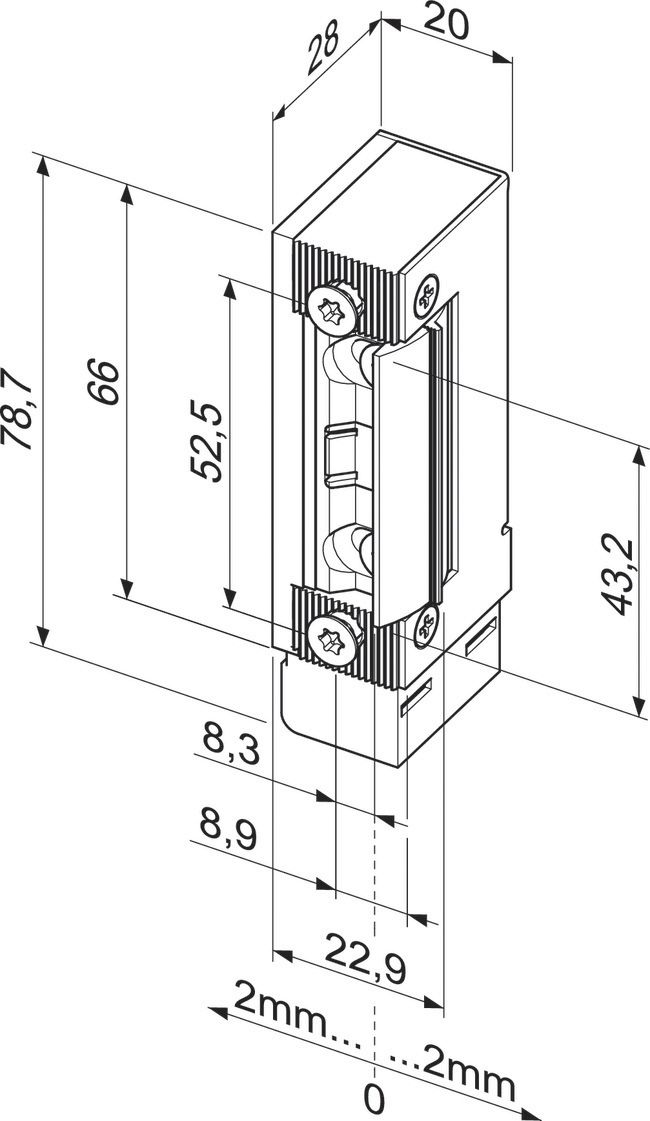

• Compact fitting dimensions

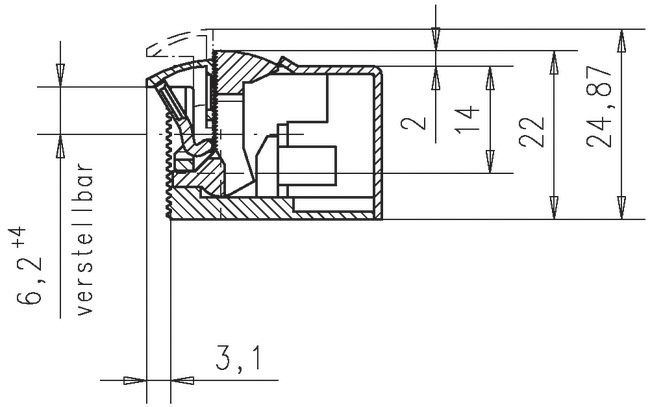

• Adjustable FaFix^® latch: 4 mm adjustment range with 0.5 mm increments
• Adjustable via Fix grooves in housing
• Monitoring flap moves together with the FaFix^® screw-on attachment, i.e. the switching point always remains the same
• Optionally available with fixed latch

Note

• Can only be used as a supplementary locking device on fire doors
• * Coupling Relay 7480 is required for parallel operation.
