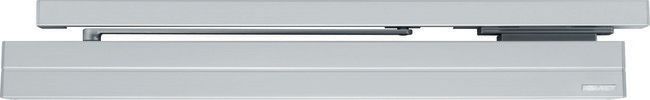

ASSA ABLOY DC700G-FT BGS
Non-hinge side
Door closer with Cam-Motion® technology, incorporating integrated escape door strike, non-hinge side
Product description
- Door closer with Cam-Motion® technology, incorporating extended mounting plate and integrated escape strike within extended guide rail. Mounting position non-hinge side
- Suitable for retrofitting on electrical locking device on doors without fire and smoke protection.
- Certified in compliance with EN 1154, size 3-6
- Escape door strike 332®, tested in compliance with the guideline for electrical locking systems for doors along escape routes
Characteristics Door closer with Cam-Motion® technology, incorporating integrated escape door strike, non-hinge side
- Integrated escape door strike 332® in extended guide rail
- Integrated latch bolt 807 on extended mounting plate
- with 4 m connecting cable
- Flush or surface installation of wiring possible
- Can be used for left and right hand doors
- Standard installation on non-hinge side
- Variable adjustable closing force
- Closing speed, latching speed and backcheck continuously adjustable
- Thermodynamic valves for consistent performance
- Axis continuously height adjustable up to 14 mm
Performance characteristics escape door locking system
- Holding force of 2000 N
- Latch position continuously adjustable between 12 mm and 17 mm
- Latch position adjustable horizontally between -3 mm and +6 mm
- Latch bolt can be adjusted vertically in 4 mm increments (-4/ 0/ +4/ +8)
- Escape door strike using FaFix®, adjustable by 2 mm (0.5 mm steps)
Characteristics of guide rail
- Height-adjustable by 2 mm for tolerance
- Concealed fastening screws
