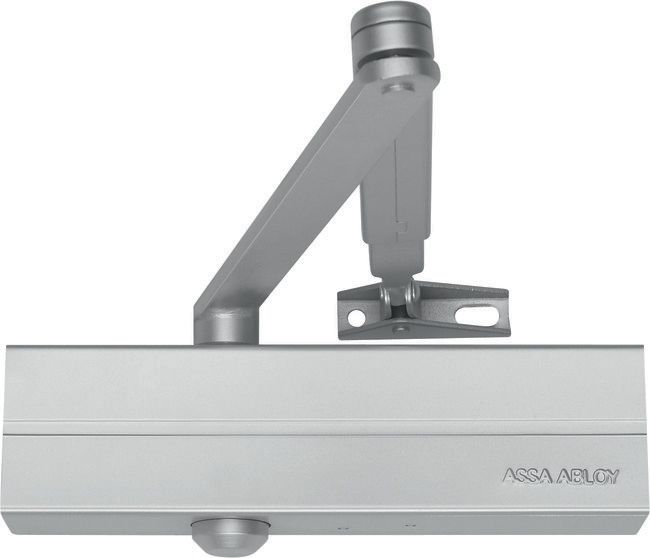

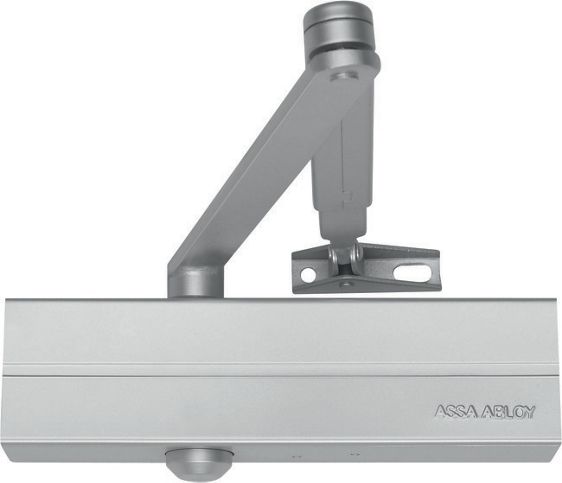

ASSA ABLOY DC140

Rack and pinion closer with link arm

Product description

• Rack and pinion closer with link arm
• Certified in compliance with EN 1154, size 2/3/4/5
• For single action doors up to 1250 mm wide

Characteristics Rack and pinion closer with link arm

• Can be used for DIN left and DIN right-handed doors
• Thermodynamic valves for consistent performance
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Closing force configurable
• Opening angle up to 180° (EN5 = 125°)
• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005

Note

• Not for use on fire and smoke protection doors in Germany!
