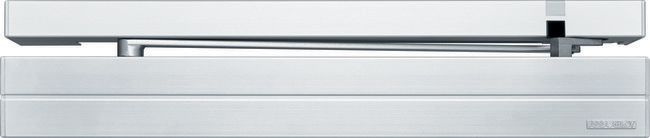

ASSA ABLOY DC700G-CM

Product description

• Door closer with Cam-Motion® technology, extended mounting plate and integrated Close-Motion® element for safe and noiseless closing
• The door can be pulled closed safely and quietly from an angle of ≤ 10°
• Suitable for retrofitting on fire doors and smoke control doors and fastening using drilling template in accordance with DIN EN 1154, supplementary sheet 1:2003-11
• Tested as a whole element in accordance with EN 1154, size 3-6
• For single action doors up to 1400 mm wide

Note

• For fire and smoke protection doors with tempering protection

Characteristics DC700G-CM

• Integrated Close-Motion® element in extended closer housing
• Close-Motion® element with horizontal and vertical adjustment
• Optional tamper protection, installation without dismantling function elements
• Standard installation on hinge side
• Can be used for DIN left and DIN right-handed doors
• Axis continuously height adjustable up to 14 mm
• Closing speed and latching speed continuously adjustable from front
• Variable adjustable closing force
• Opening angle up to 160°
• Thermodynamic valves for consistent speed
• Standard colours: Silver EV1, stainless steel design

Characteristics G150

• Close-Motion® control curve integrated in the slide rail
• Drilling template of the standard slide rails from ASSA ABLOY can be used
• Height-adjustable by 2 mm for tolerance
• Concealed fastening screws
