    AAF-U70

    High-Security doors and screens with Thermal Insulation

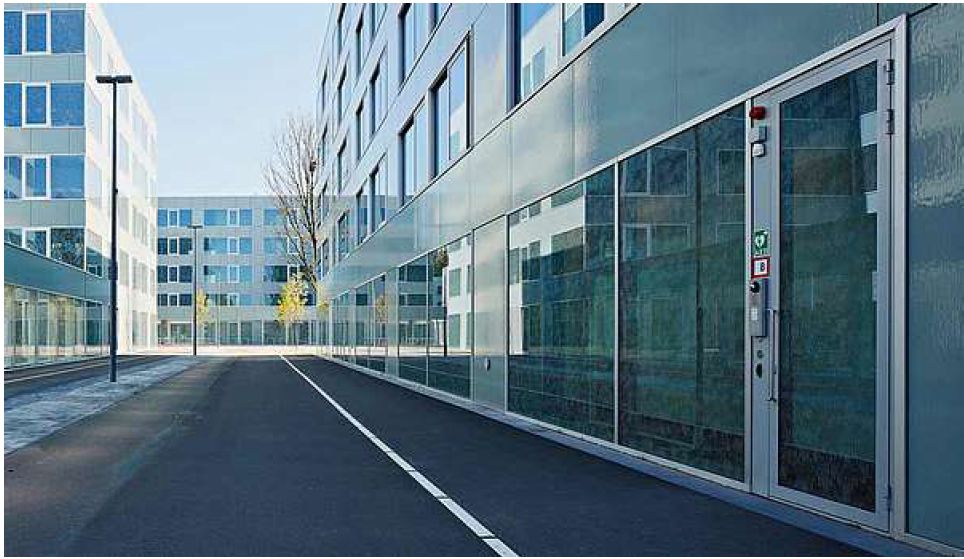

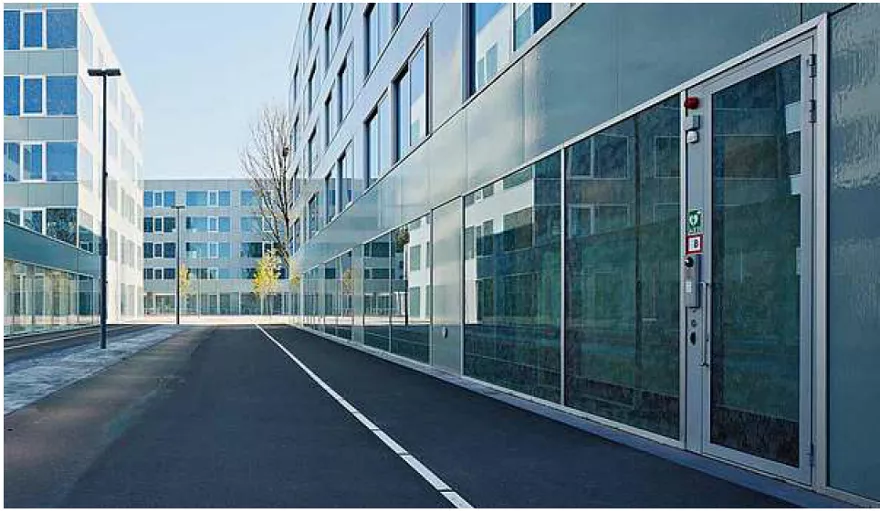

    This system is a thermally insulated profile system used for flush mounted single or double-leaf swing doors, windows and glazed partitions.

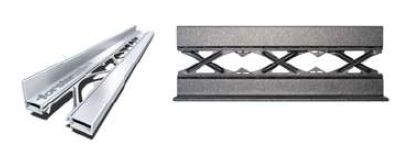

    It is manufactured from cold rolled mild steel with a zinc magnesium coating or stainless steel profiles, square cut Snap-on glazing beads, and can include aluminum reinforcement embedded in the profiles. With a nominal depth of 70mm, the profiles can also be welded together to form complex constructions.

    The system has been comprehensively tested to both the European and North American standards for high-security parameters; which includes burglary, ballistic, and blast resistance.



    1 of 5

      Description Result Standard
    Material Options Zinc magnesium (ZM) coated steel
    Stainless steel grade 304 (brush finish grain 220-240)
    Various profile depths availible, depending on the
    fire rating & security requirements

    Fire resistant options  Fixed partitions  EW60 EN 1634-1
    Single and double doors

    Fire code compliance  European and North American Standards
    NFPA101 and NFPA80
    GCC Civil Defence Approved through
    local forster fabricators

    Tested design variants Classification from CE-tests according to EN13830:
    Thermal insulation: U-Values Up to1.2 W/(m2∙K)
    Resistance to wind load Class C3/B3 EN 12210
    Air permeability Class C3 EN 12207
    Sound insulation Rw up to 46 dB EN ISO140-3

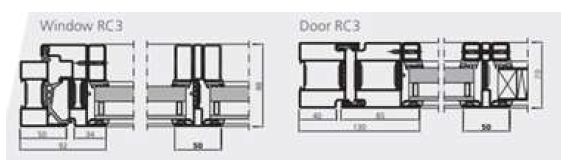

    Burglary resistance RC 2-3 EN 1627-1630

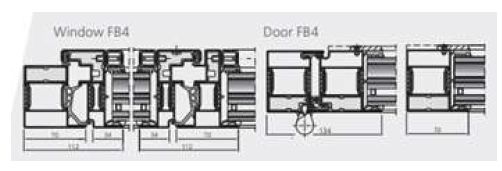

    Ballistic rating FB4, FB5, and FB6 EN 1522/1523
    Blast resistant EPR1(S) EN 13123-1

    Fittings UL listed hardware available
    Door closers complete within house cycling testing
    Latch locks and lever handles
    Compatable with access control devices

    System properties Extremely slender visible section width sand depth
    Can be powder coated or wet paint coated
    (To be checked with local applicator)
    Large glass panels available
    Large door sizes available
    Extremely economical manufacturing without
    special equipment
    Robust system, resistant to damage
    Can be used in conjunction with forster thermfix
    vario facades

    Environmental & Sustainability Credentials  Environmental Product Declaration (EPD) Can apply online
    High Recycle Content Project specific declaration
     can be provided on request
