DC340 - Door Closer - Surface Mounted

Door Closer DC340

Description:

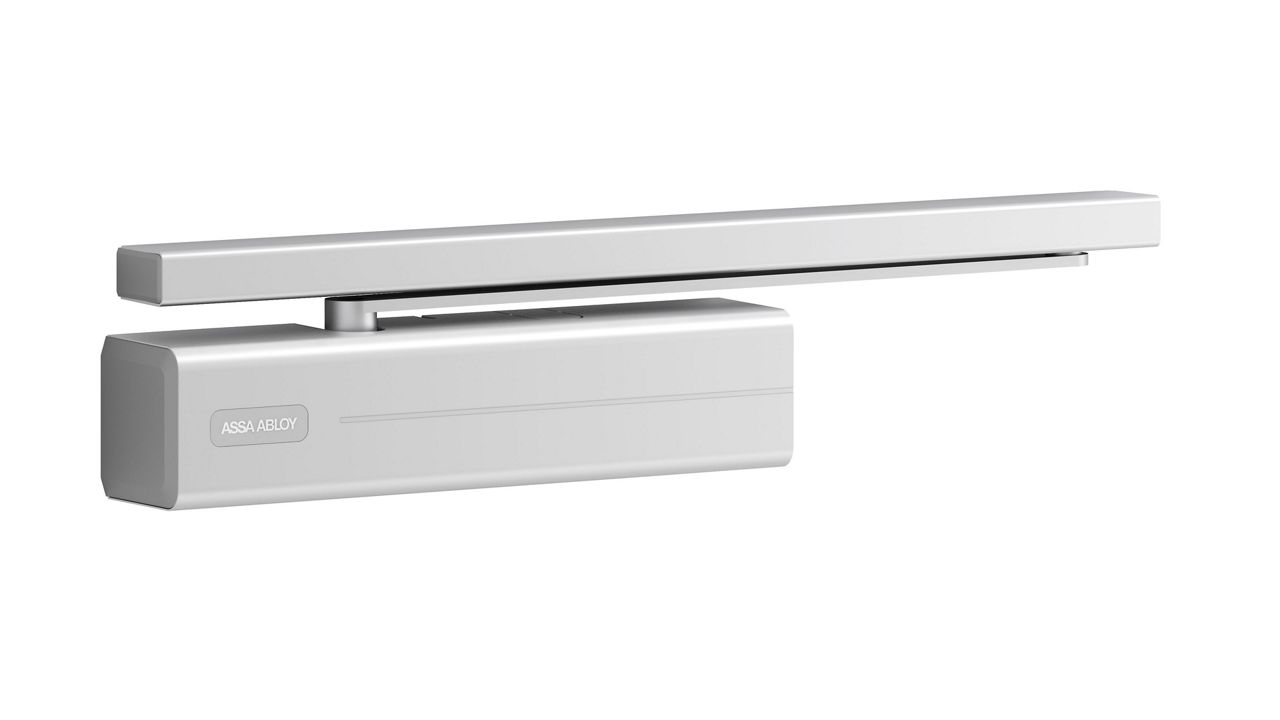

  • Rack and pinion door closer with height- adjustable guide rail G195, standard guide rail G193

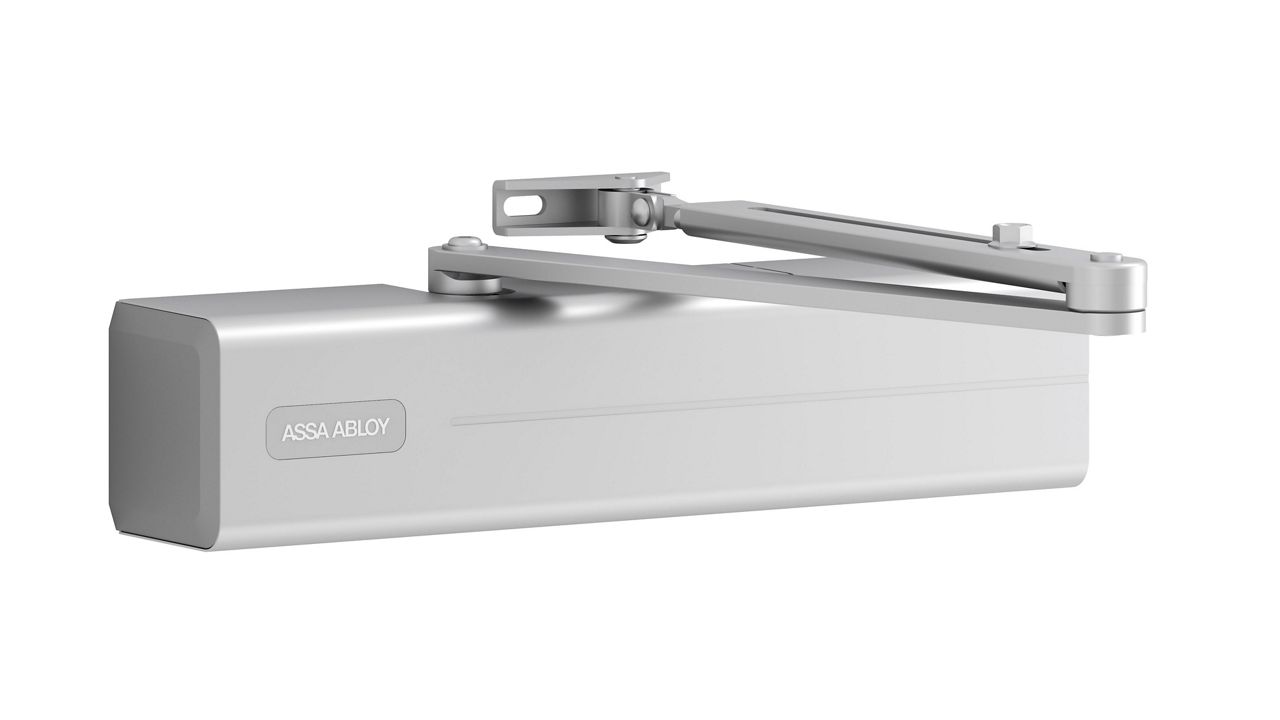

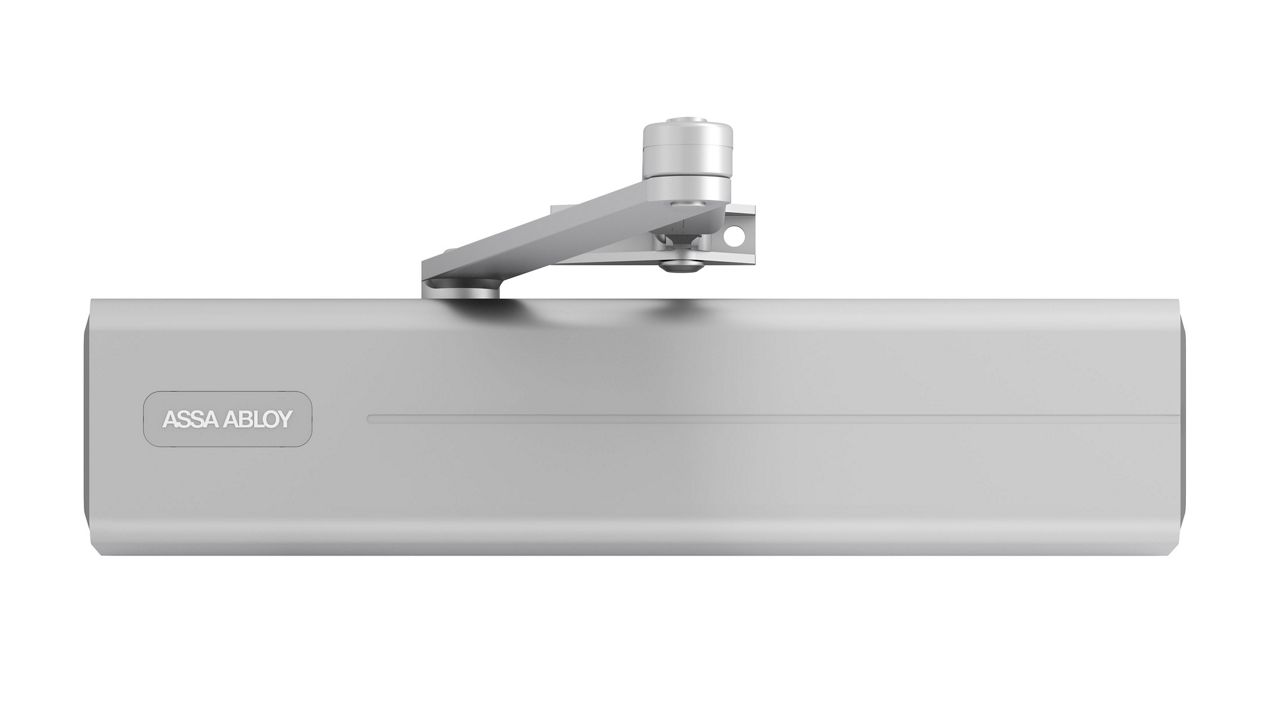

  • Can be installed also with stadard link arm L190 or hold open arm L191
  • Certified in compliance with EN 1154, size 1-4 (guide rail)
  • Certified in compliance with EN 1154, size 3-6 (standard arm & hold-open arm)
  • Suitable for fire and smoke protection doors
  • For single action doors up to 1400 mm wide (standard and hold-open arm) and 1100mm (guide rail)

Characteristics:

  • Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
  • Can be used for left and right-handed doors
  • Axis continuously height adjustable up to 14 mm
  • Closing speed, latching speed and backcheck adjustable via front facing regulating valves
  • Thermodynamic valves for consistent performance
  • Variable adjustable closing force
  • Opening angle up to 180°
  • Large range of applications

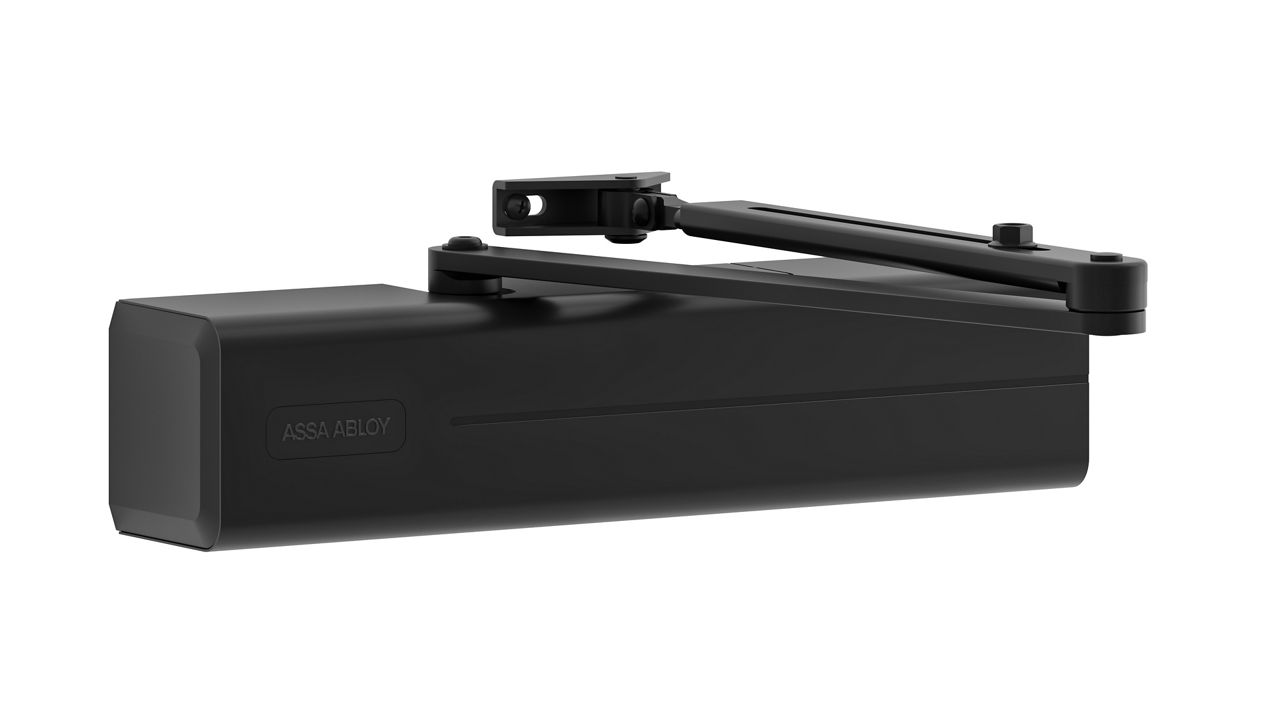

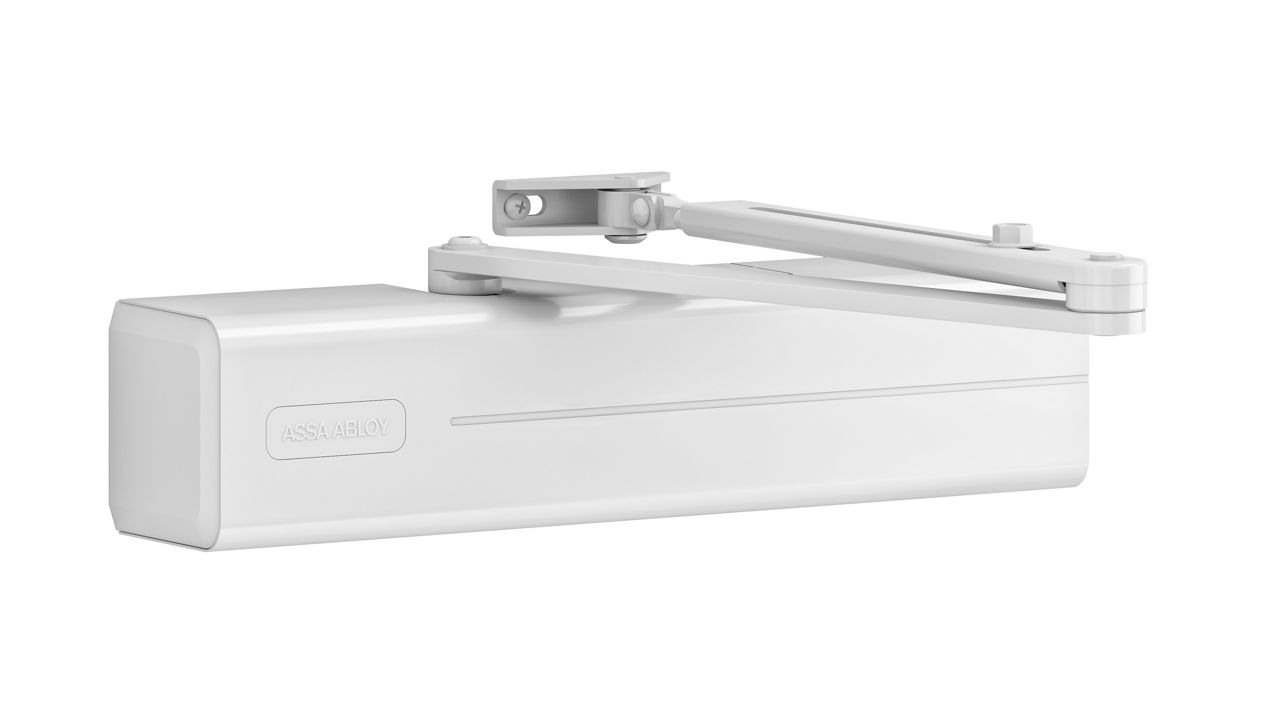

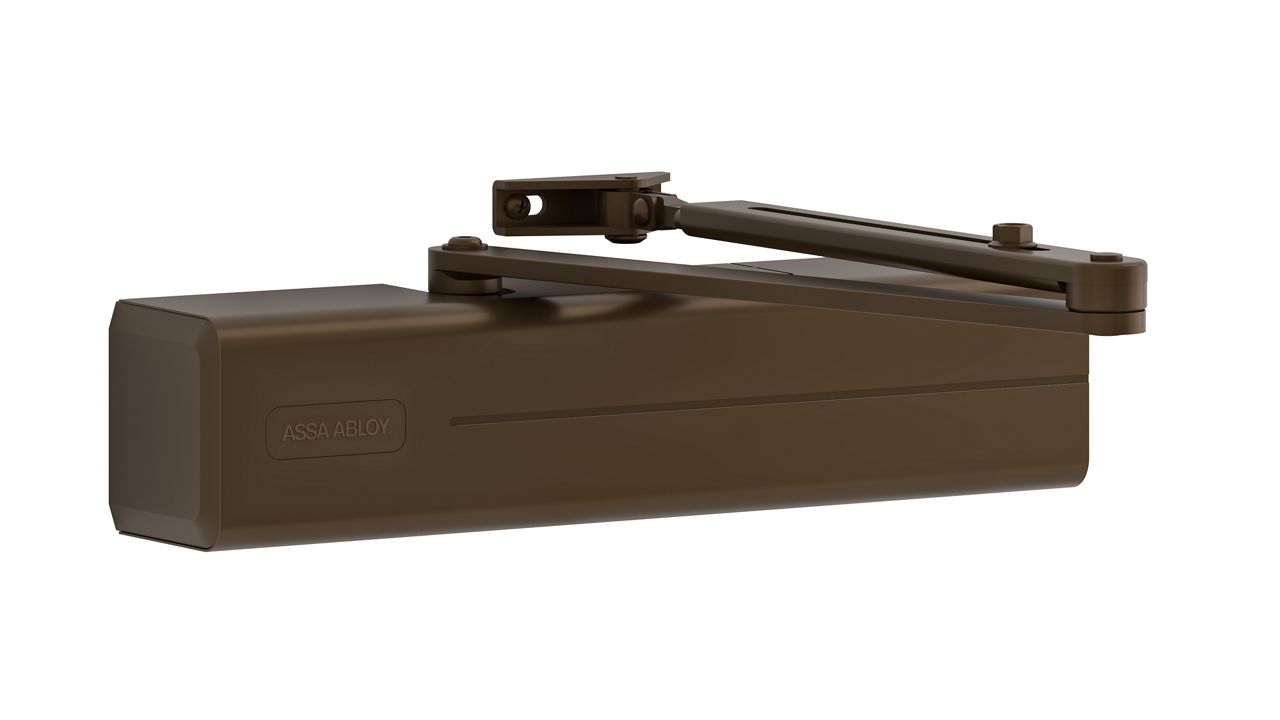

  • Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005
  • Customized finishes available on request
