DC500 - Door Closer - Surface Mounted

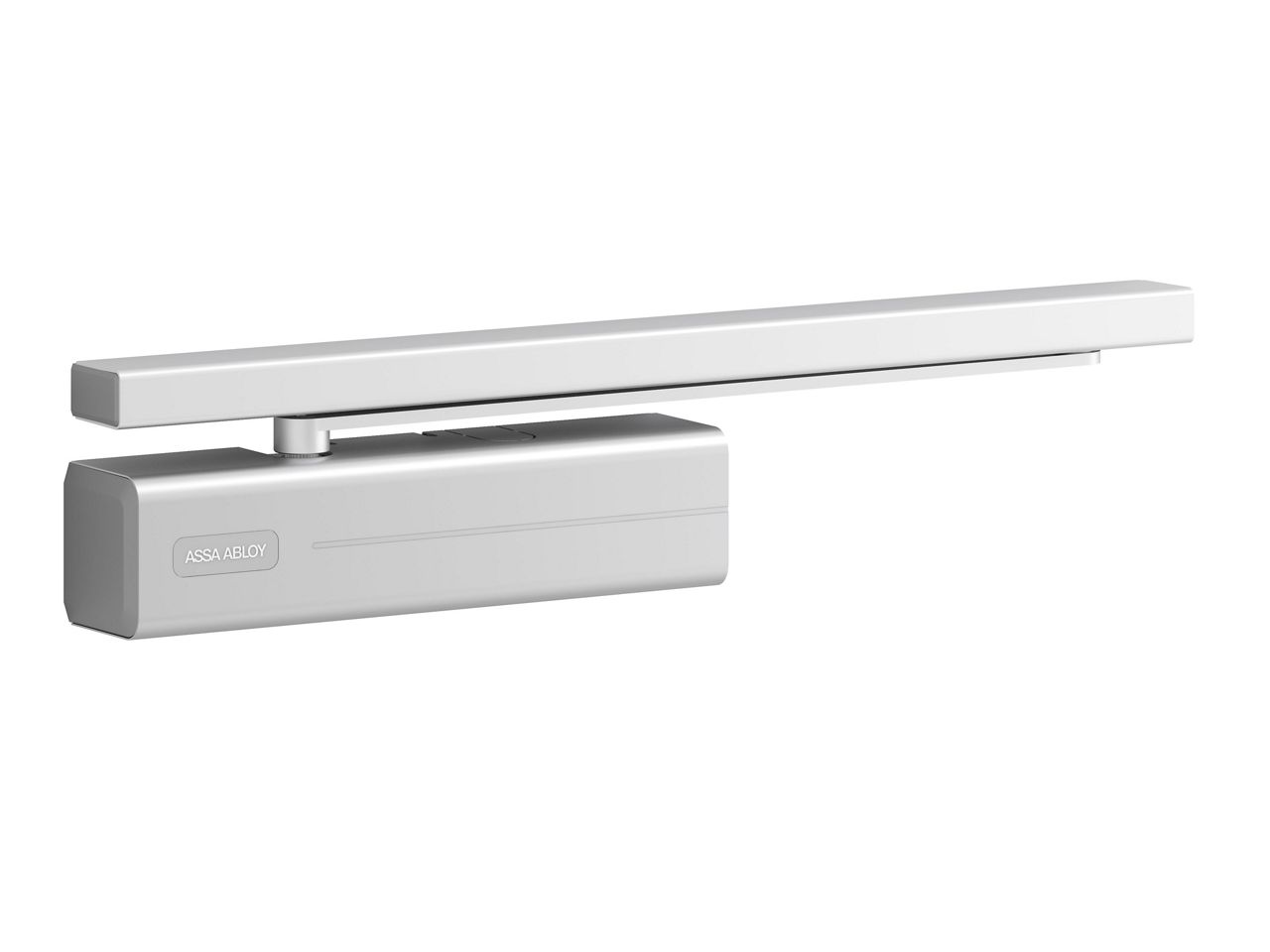

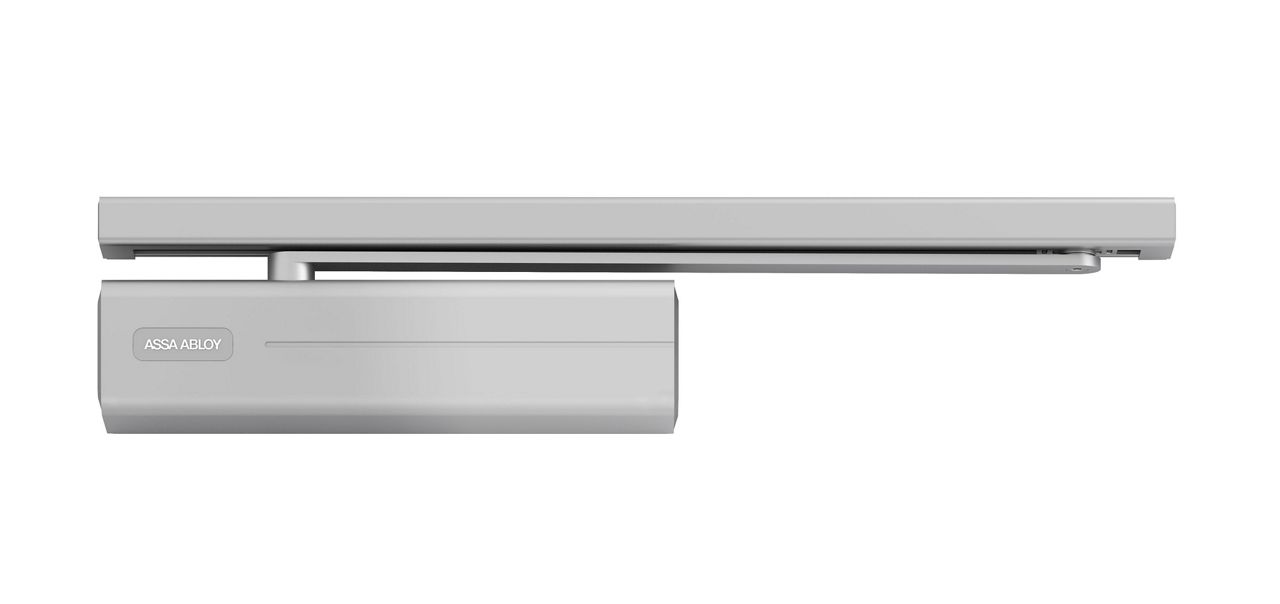

Door Closer DC500 Cam-Motion

Description:

  • Door closer with Cam-Motion® technology and height-adjustable guide rail G195 or standard guide rail G193
  • Fulfils barrier-free building requirements (DDA/ CEN TR 15894)
  • Certified in compliance with EN1154, size EN1-4
  • Suitable for fire and smoke protection doors
  • For single action doors up to 1100mm wide
  • Can be used in four installation types: Hinge and non-hinge side in standard and frame installation

Characteristics:

  • Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
  • Can be used for left and right-handed doors
  • Axis continuously height adjustable up to 14mm
  • Closing speed, latching speed and back-check adjustable via front facing regulating valves
  • Thermodynamic valves for consistent performance
  • Adjustable closing force
  • Opening angle up to 170°
  • Effective back-check and latching speed range adjustable
  • Large range of applications

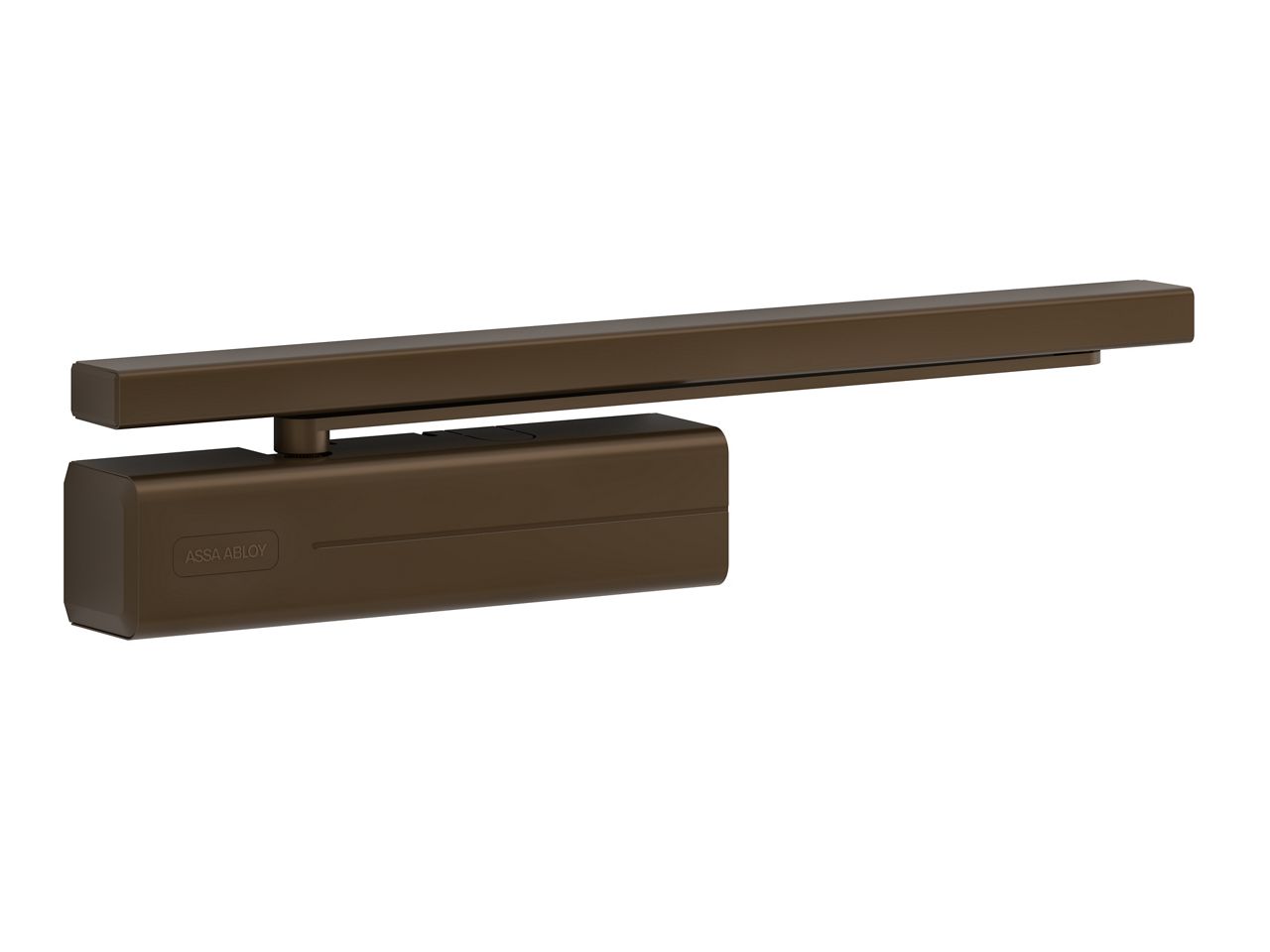

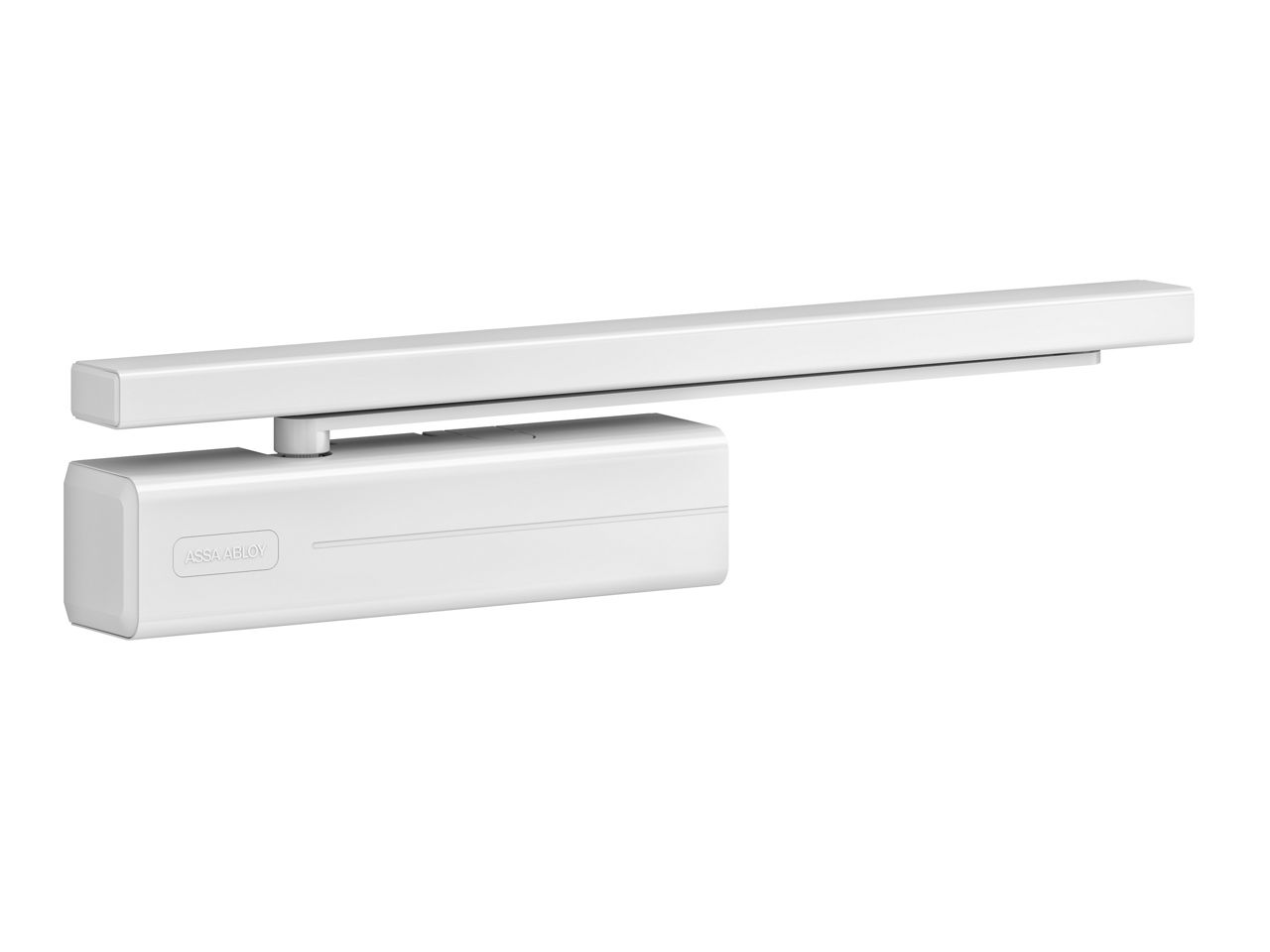

  • Standard colours: silver EV1; White, similar to RAL9016; Brown , similar to RAL8014; Black, similar to RAL9005
  • Customized finishes available on request

Characteristics of standard guide rail G193:

  • Without protective cover
  • Visible fastening screws

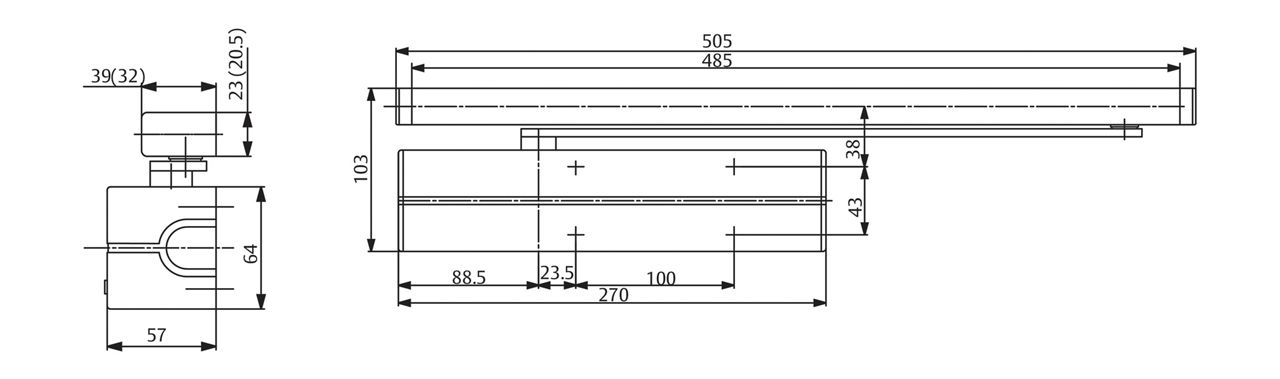

  • Installation dimensions: see diagram  (dimensions in brackets)

Characteristics for guide rail G195:

  • Height-adjustable by 2mm for tolerance
  • Concealed fastening screws
  • Installation dimensions: see diagram doors

Accessories:

  • Standard guide rail G193
  • Height-adjustable guide rail G195
  • Mounting Plate A120
  • Mounting Plate A130 for guide rail G193 & G195
  • Angle bracket A104 for guide rail G193
  • Mechanical opening damper A153
  • Mechanical hold open device A152 (not for fire and smoke protection doors)
  • Glass door shoe A166

Accessories for DC500

  • Mounting plate A120:
    For mounting with drilling template according to EN1154, Supplement 1 and for universal use
  • Mounting Plate A130:
    For guide rail G193 and G195
  • Angle Bracket A104:
    Only for standard guide rail G193
  • Replacement Plate A124:
    Replacement plate A124
