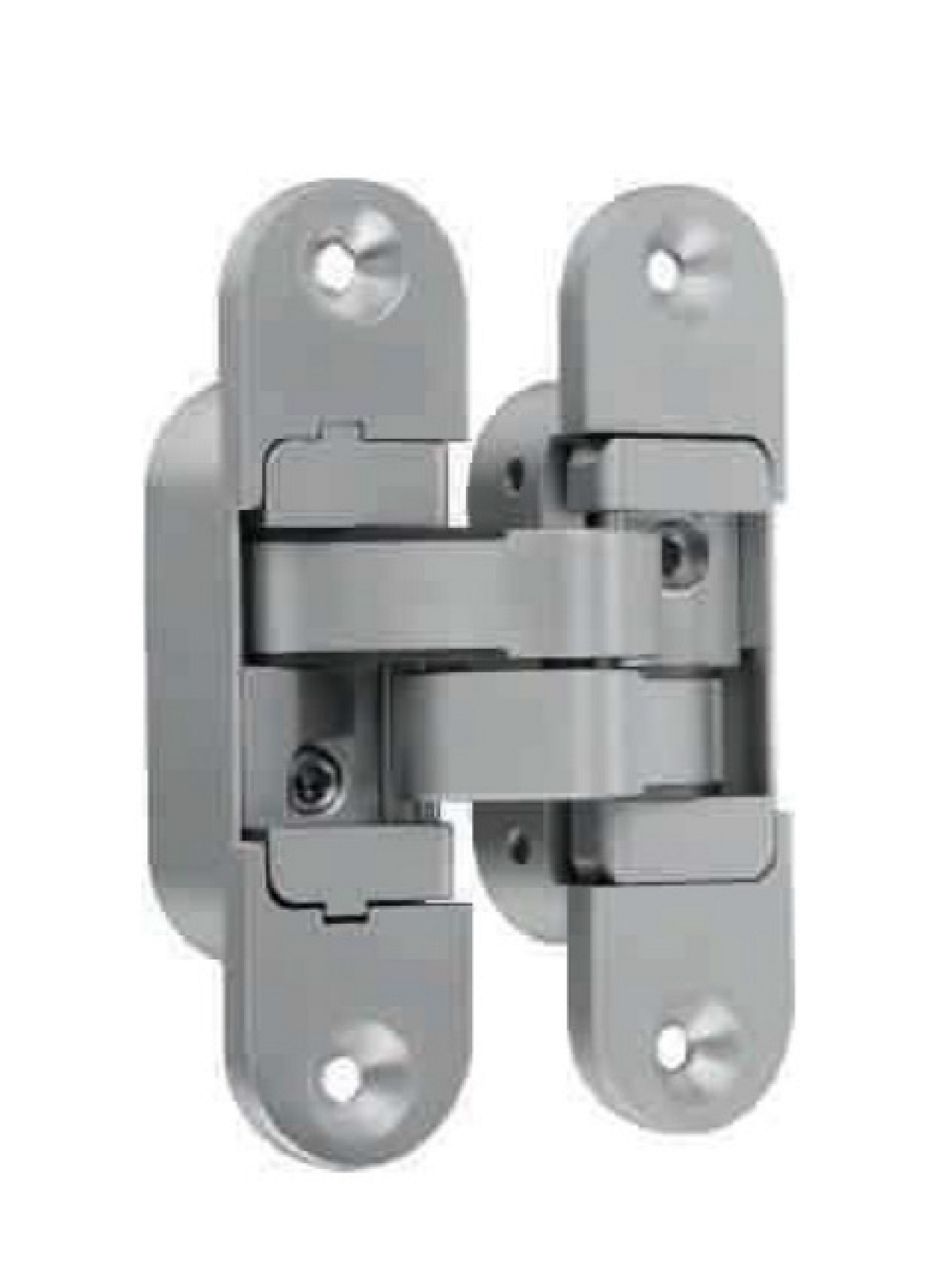

AAH201/ AAH202 3D Concealed Hinge

Model No.: AAH201, AAH202

Description:

3D adjustable concealed hinge
Area of application: For wooden frames, for flush wooden interior doors
Door weight: AAH-201-40 kg , AAH-202-60 kg
Door width: 900mm
Door height: 2000mm
Opening angle: <180˚
Adjustment facility: Continuously 3D Adjustable - height , side and closing pressure ±1mm
Material: Zinc alloy

Finish:
