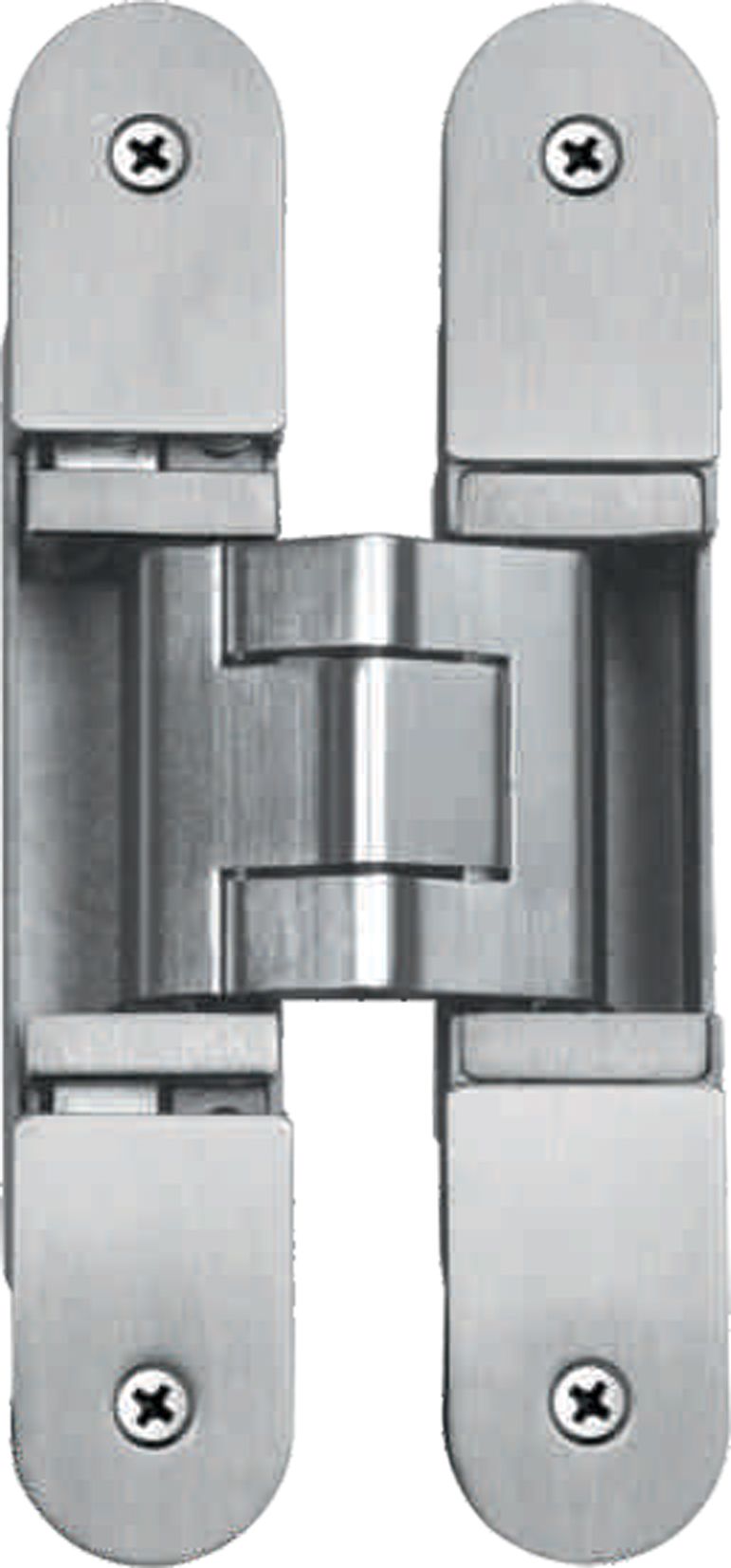

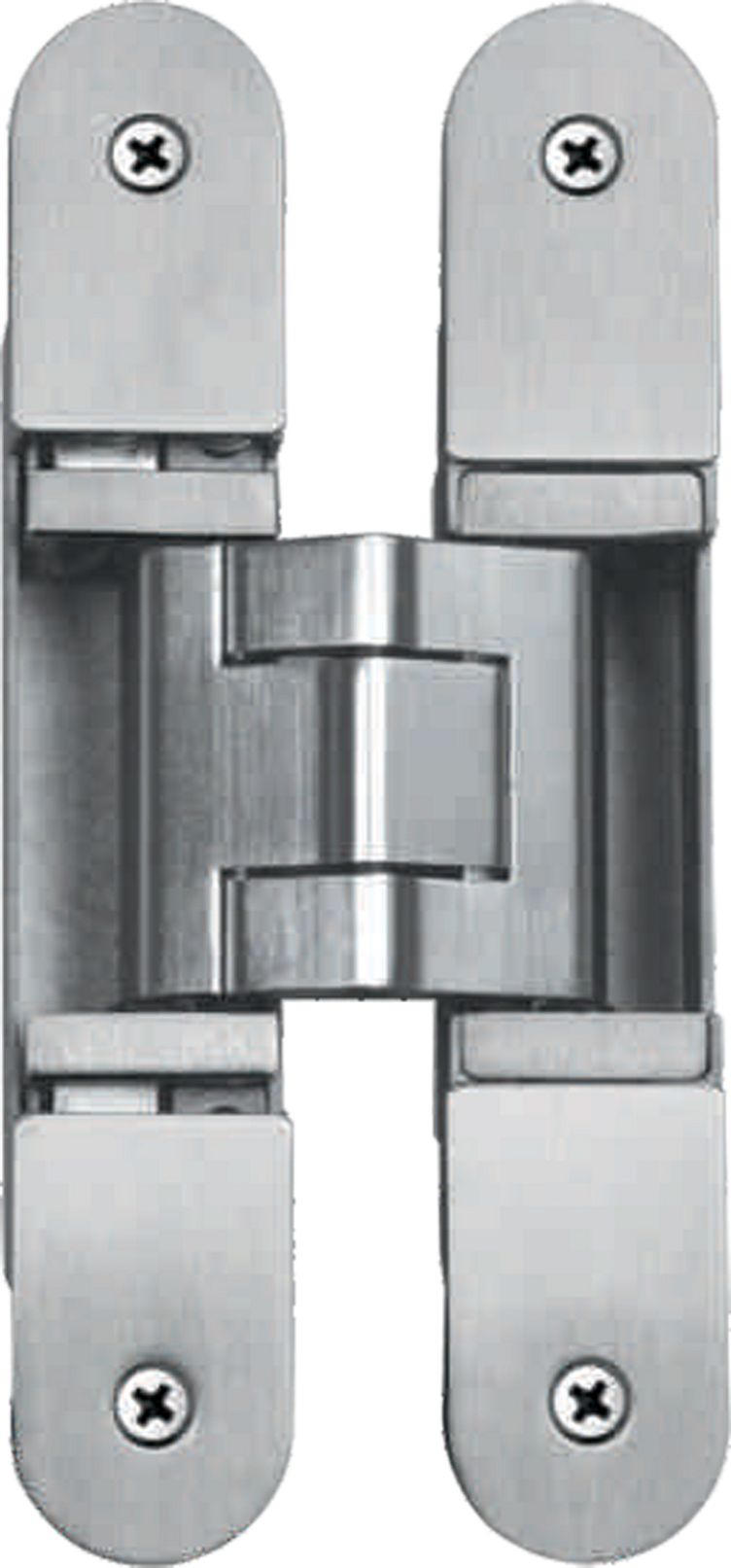

AAH205 3D Concealed Hinge
Model No.: AAH205
Description:
- 3D adjustable concealed hinge
- Application: For wooden/steel/aluminium frames
- Door thickness: >40mm; Opening angle: <180˚
- Door weight: 120 kg with 2 hinges
- Door width: ≤1000mm
- Adjustment feature: AA-3CH-03- Continuously 3D adjustable height, side ±3.0mm and closing pressure ±1mm, AA-3CH-04- (side ±3.5mm)
- Material: Stainless Steel
Finish:
- Satin Stainless Steel
