RP300 (Machine Protection Door)

RP300 (Machine Protection Door)

This speed door is designed to deliver high speed and short cycle times for automated process lines. When safety, speed, and seamless integration with automation are critical, the smart Machine Protection Door is the answer. Maximize productivity with rapid opening and closing cycles.
Automated manufacturing and assembly processes demand advanced technology, precision, and reliable equipment. KAD-ASSA ABLOY offers high-performance, high-speed doors engineered to meet these stringent requirements.

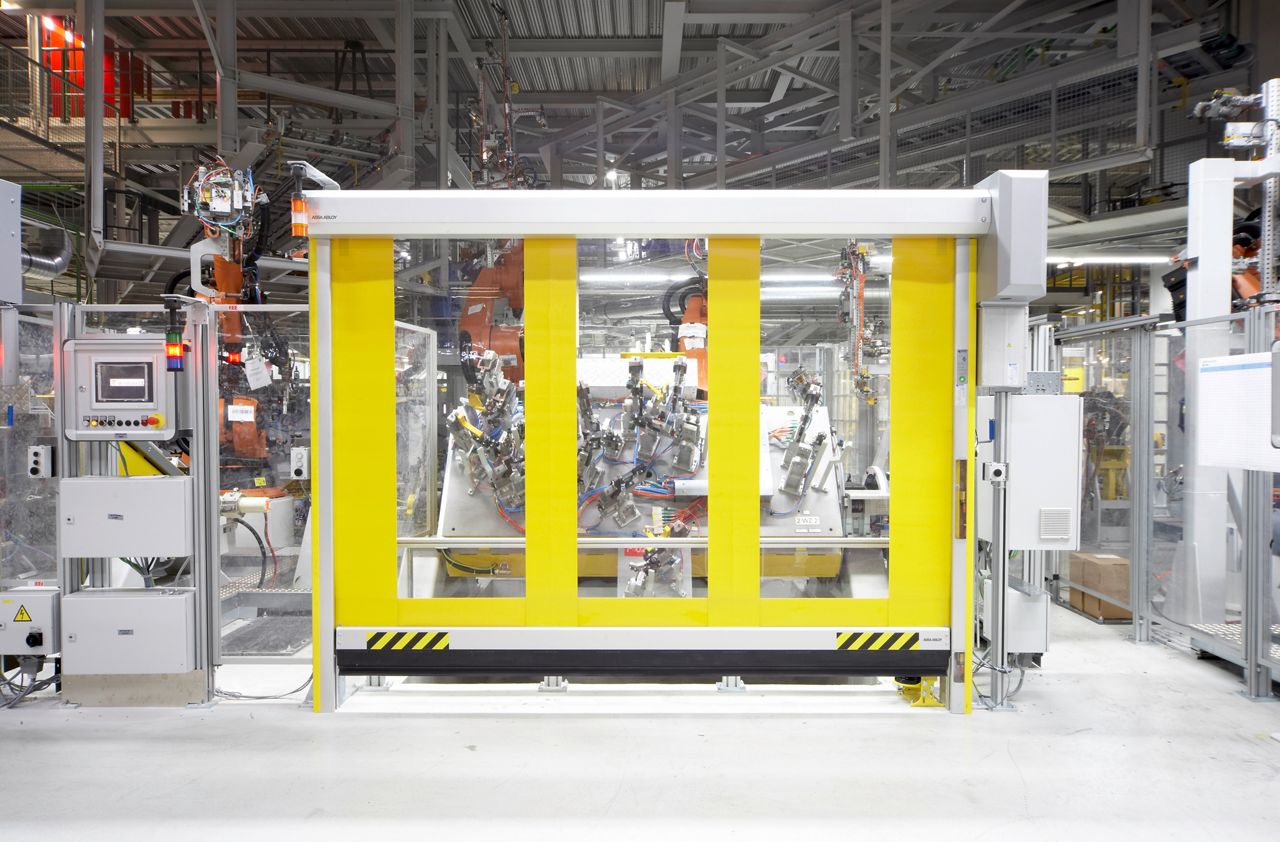

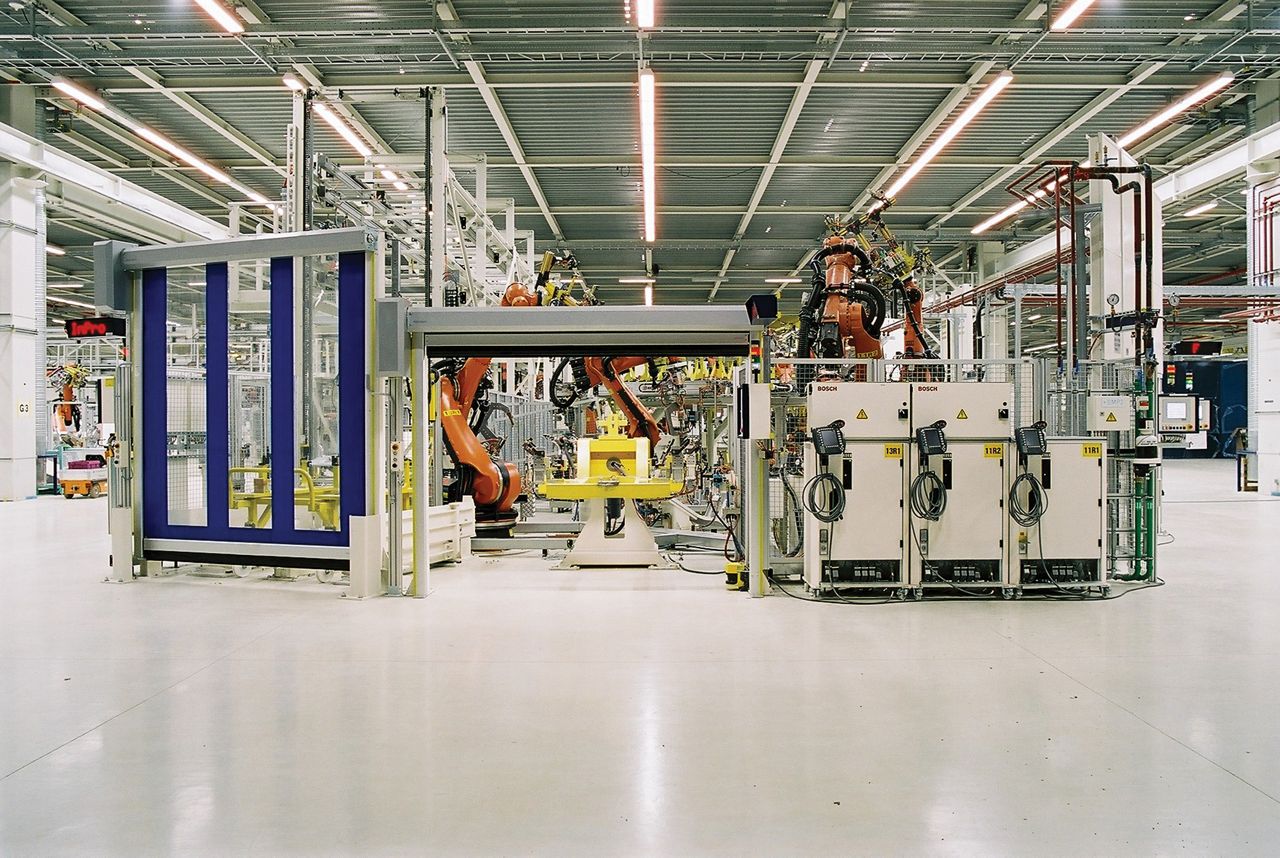

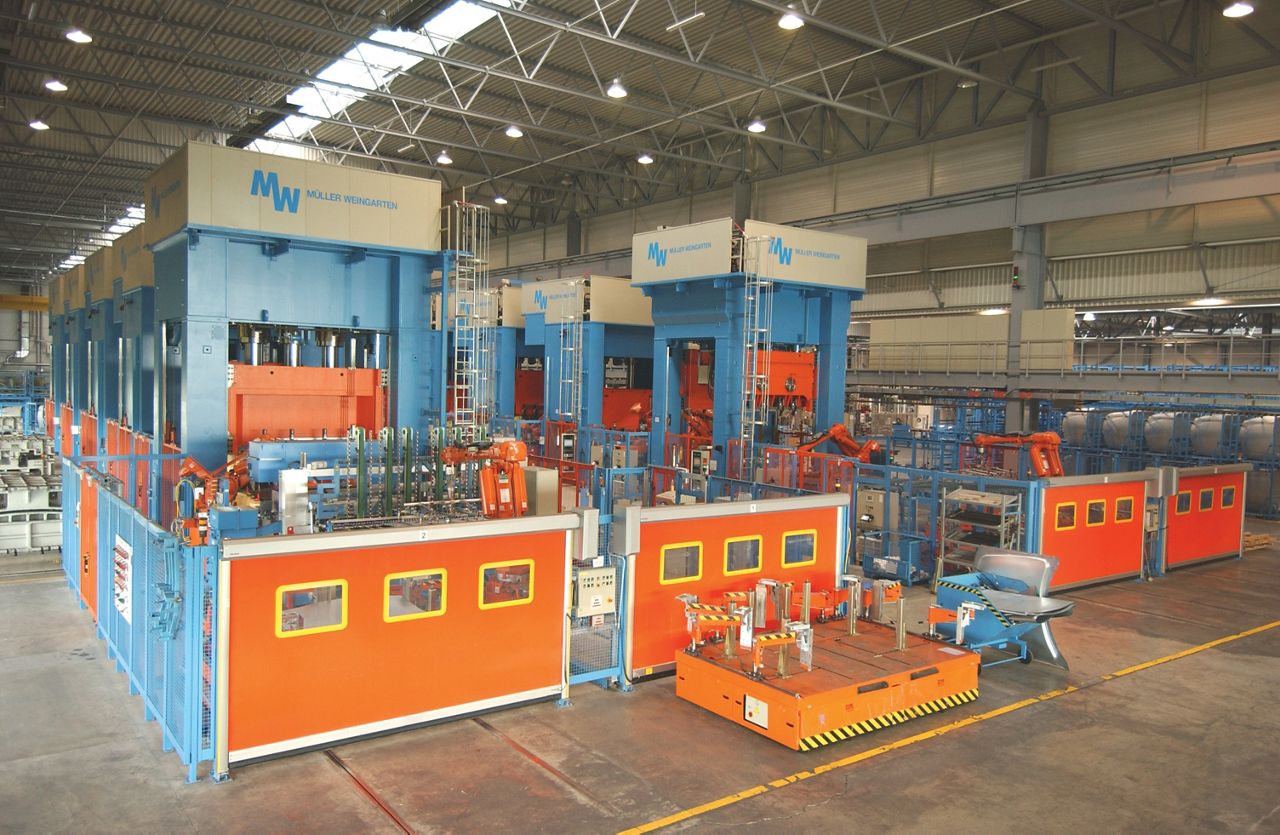

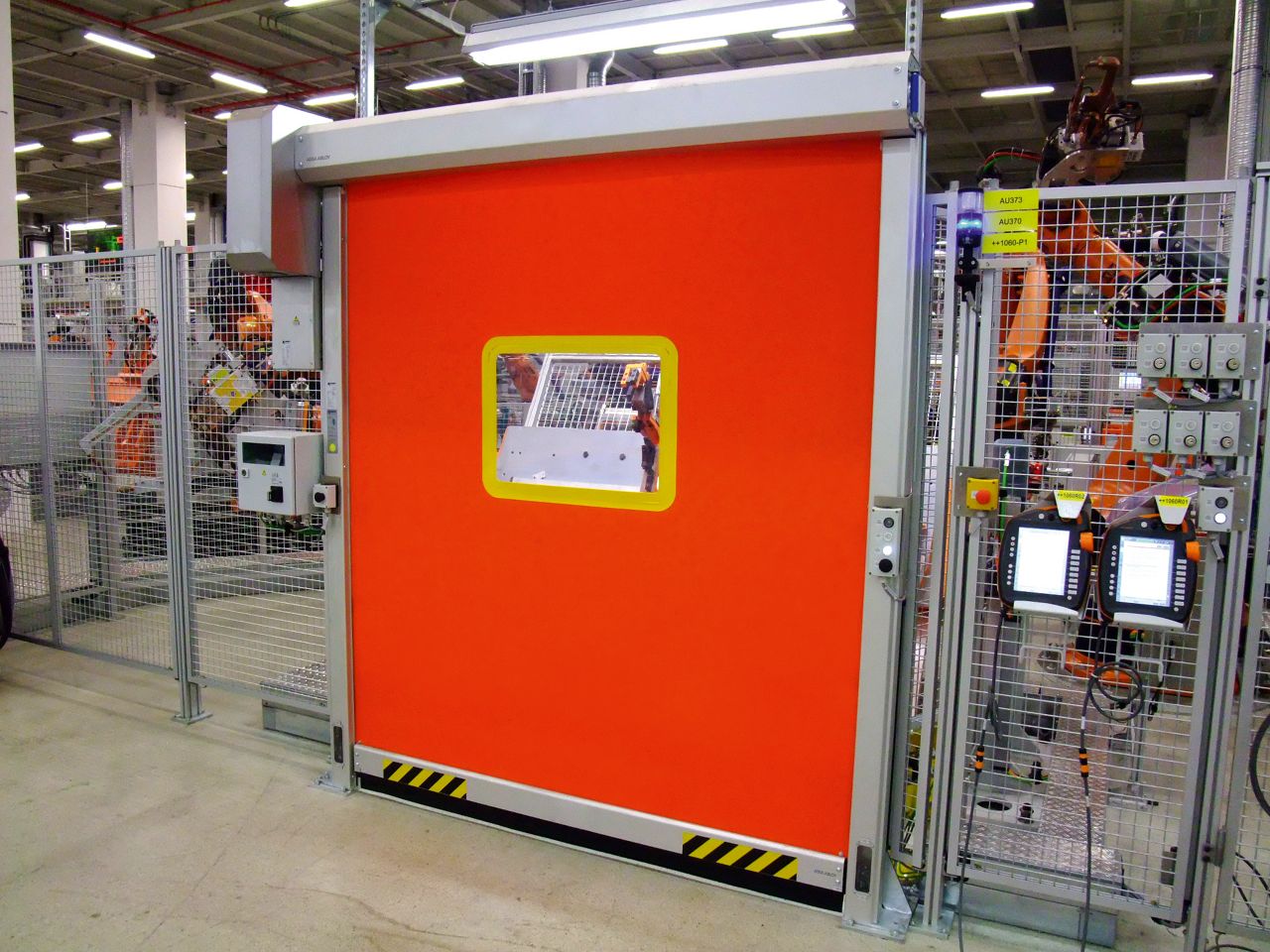

The RP300 Machine Protection Door is a speed door specifically designed for automated processes and production lines.
This robust door is designed with a minimized number of components, ensuring high reliability, easy installation, and reduced maintenance requirements.
The RP300 door ensures the safety of personnel working on automated manufacturing lines.

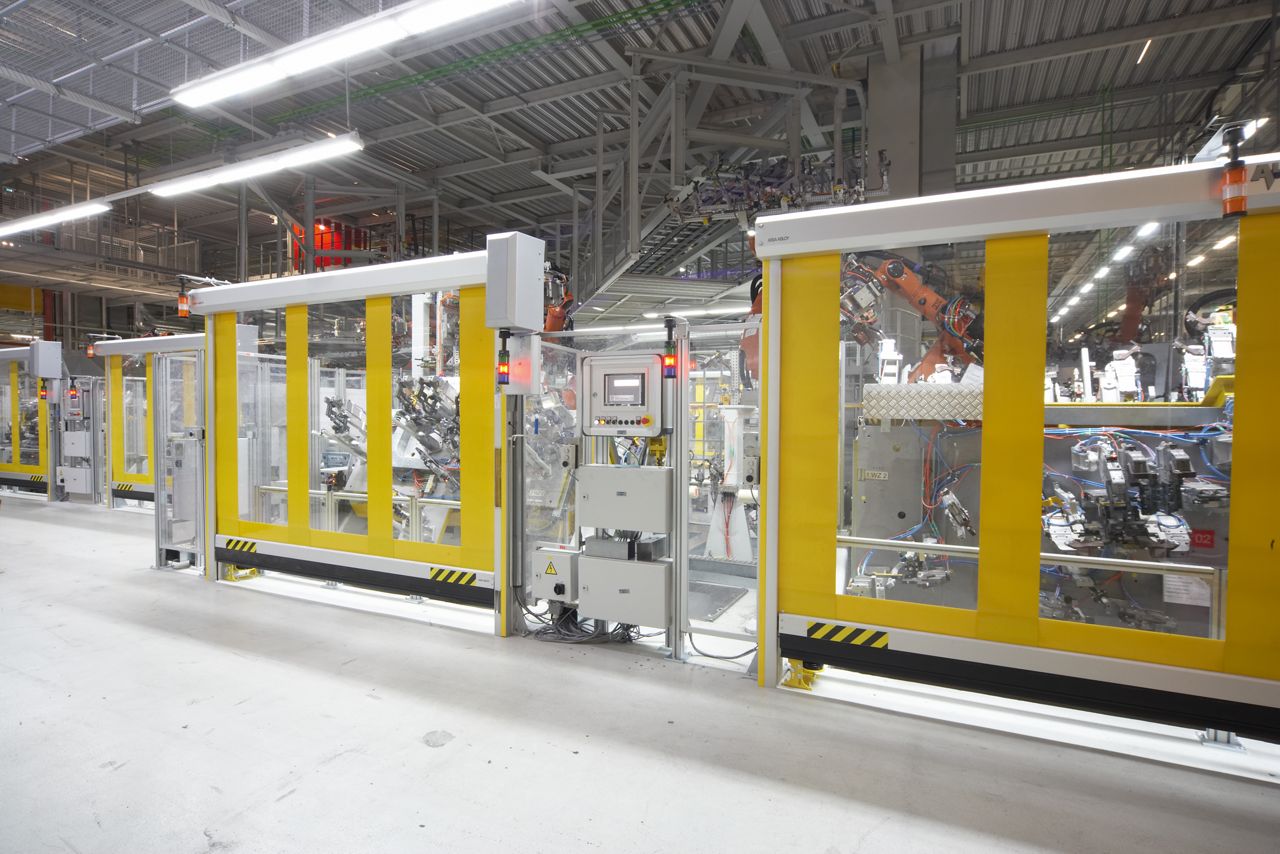

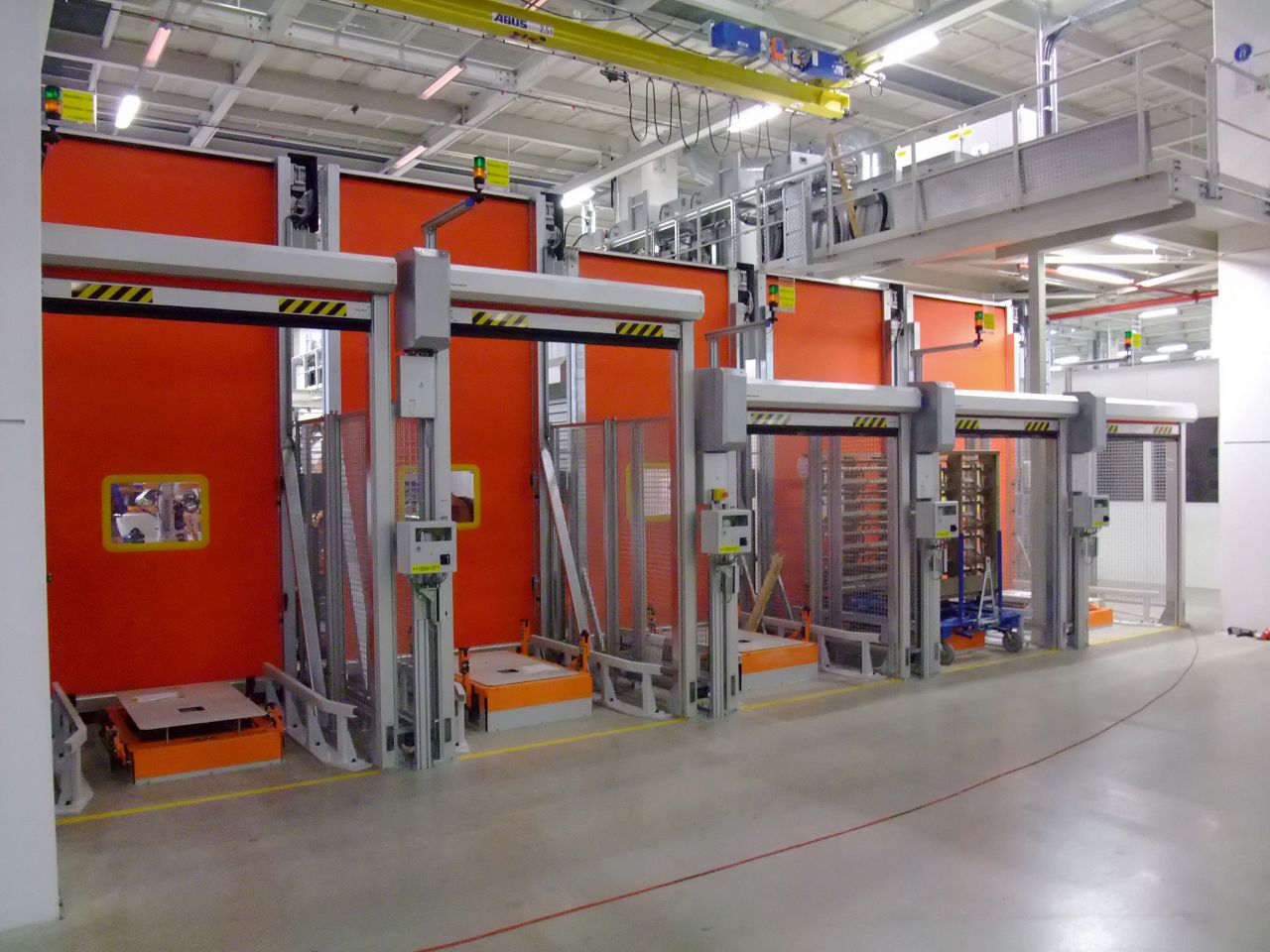

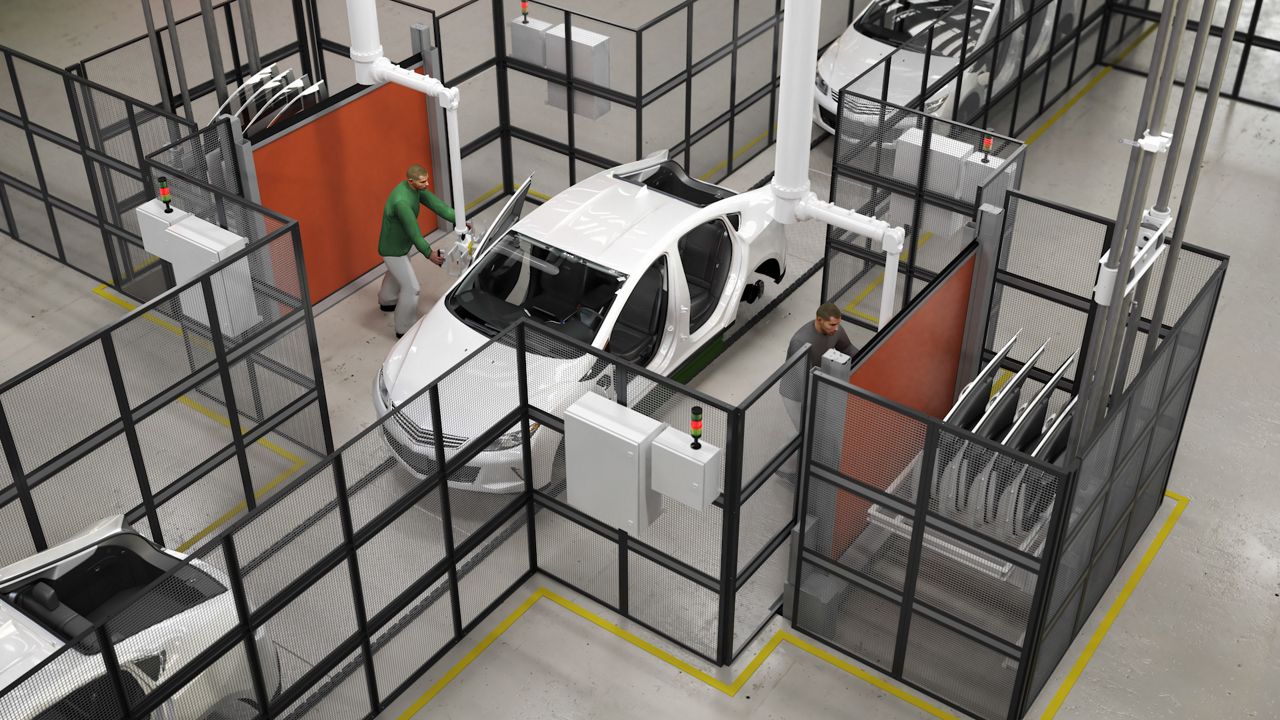

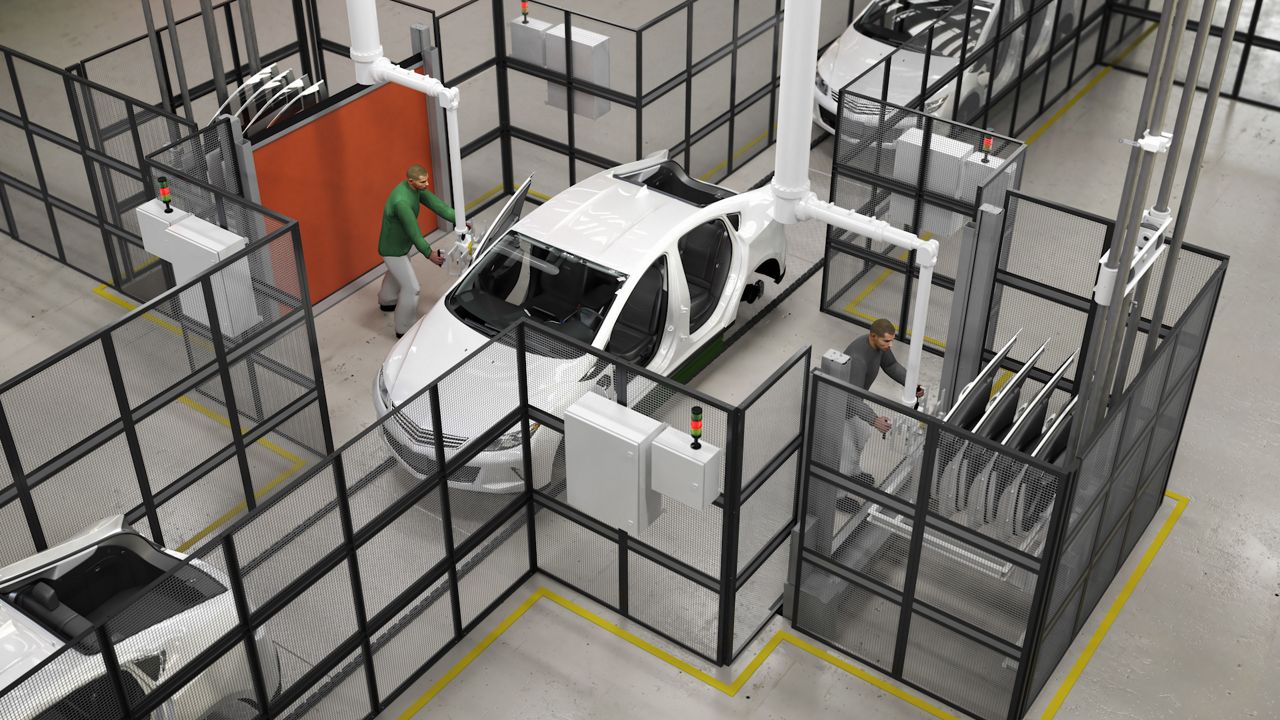

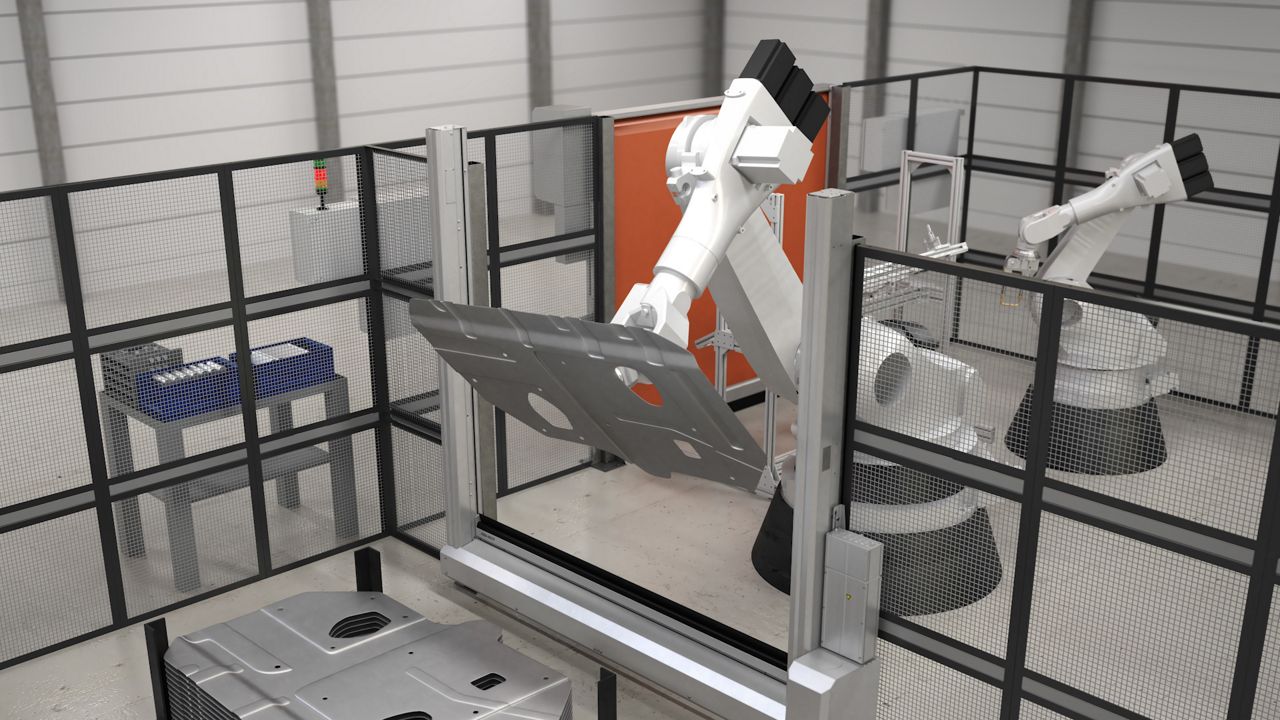

Thanks to its roll-up safety design, it enables a compact production layout and can be installed in close proximity to automated machinery

Maximum Door Size (mm): 4000 x 3500 mm
Opening Speed: Up to 2.4 m/s; Closing Speed: Up to 1.8 m/s (depending on control system)
Cycle Rate: Up to 5 cycles per minute
Curtain & Color Options: Various choices available depending on application

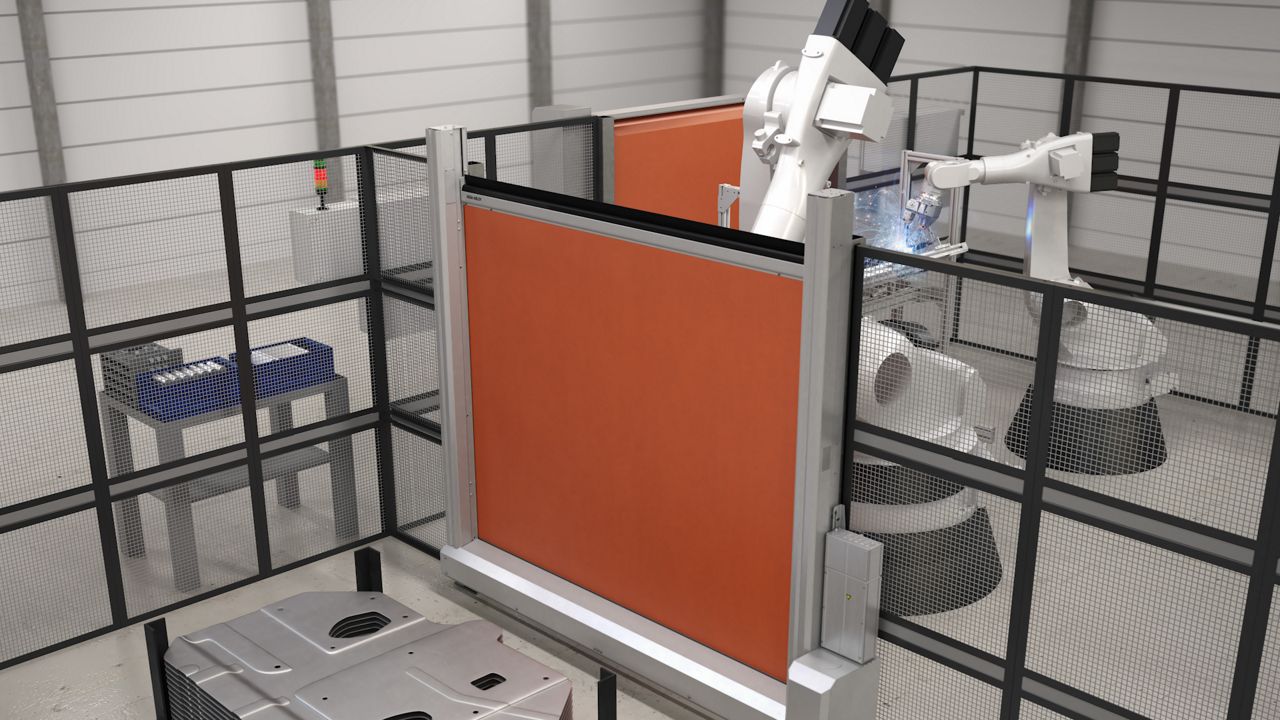

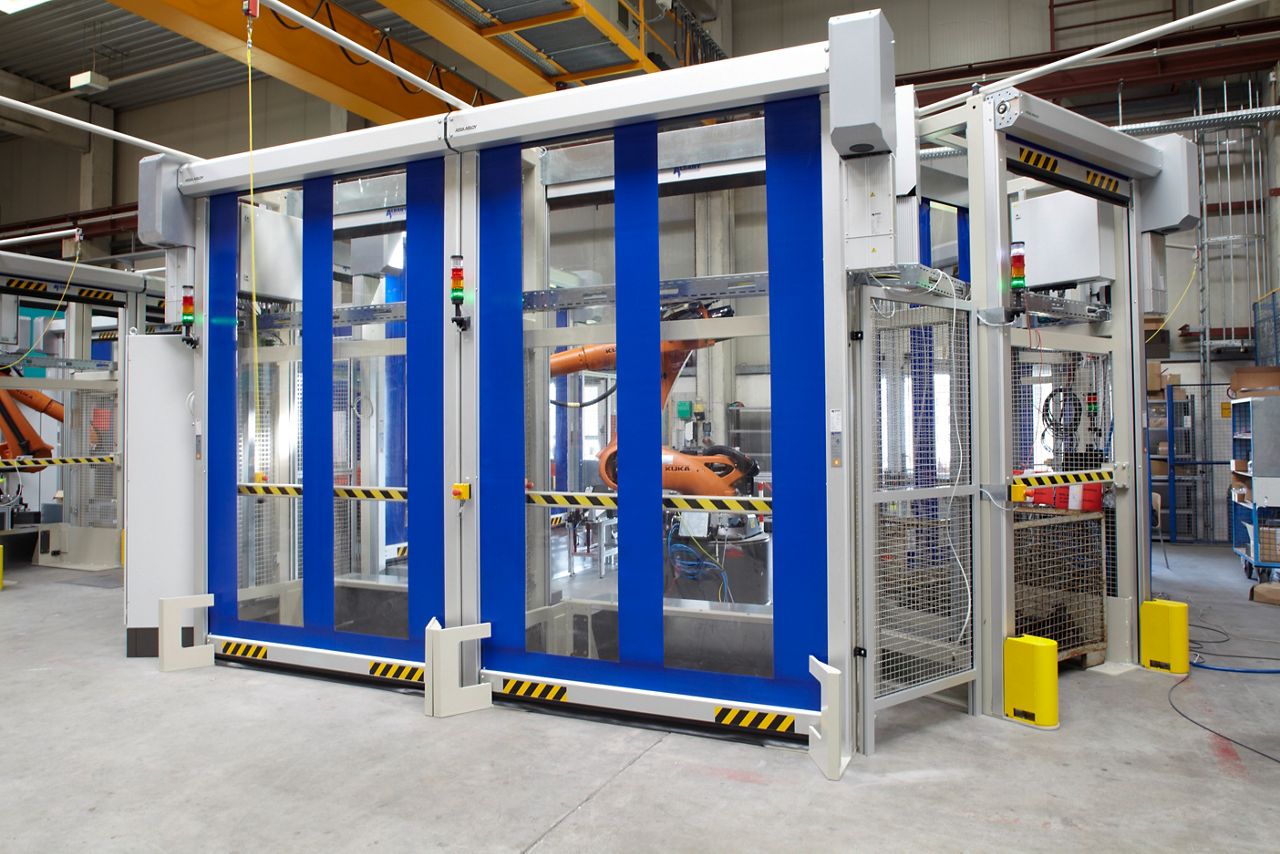

Curtain Types: From partially transparent PVC curtains (with reinforced stripes) to high-strength, spark-resistant materials
Optional Feature: UV-protection welding window compliant with EN ISO 25980
Construction: Two aluminum profiles Integrated Safety Limit Switch: Connects door and machine

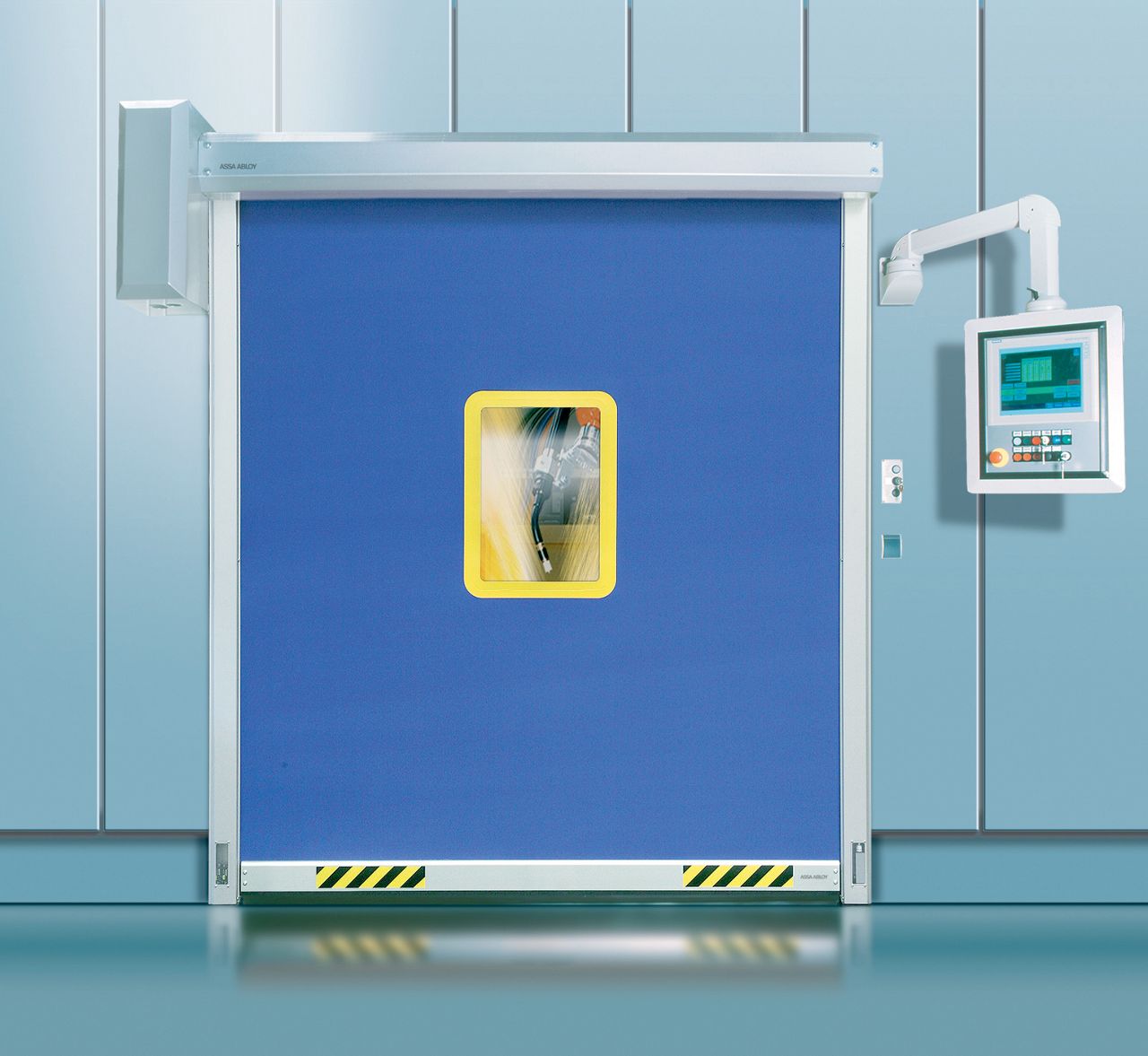

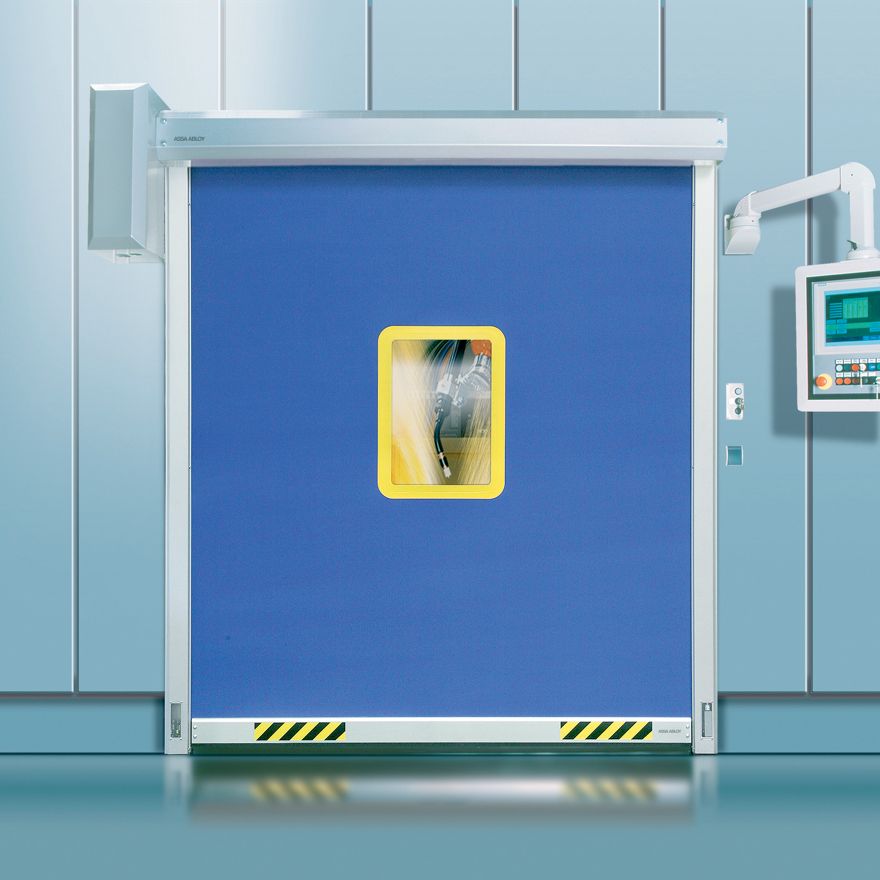

Monitoring: Transparent acrylic window for easy status check
Safety Compliance: Limit switch meets EN ISO 13849-1 and EN 62061; Door complies with EN ISO 12100 and EN ISO 14119
Control Systems: Two options available based on application
Supports: Various speed, power supply, and safety device options
Installation: Door can be installed without control system Optional UL version available
Space-saving extension box for interface cards or safety monitoring modules
Machine Connection: Dry contact or fieldbus system
Motor Output: 0.75 kW
Protection Class: IP 55
Power Supply: Separate from control system (see technical data sheet for details)
Safety Features: Electrical safety contact edge, door-line photocell
Optional: Pre-running photocell
Compliance: Meets UVV workplace safety regulations and harmonized CE guidelines, including EN 13241-1 and 98/37/EG
