DS6160C (Dock Shelter)

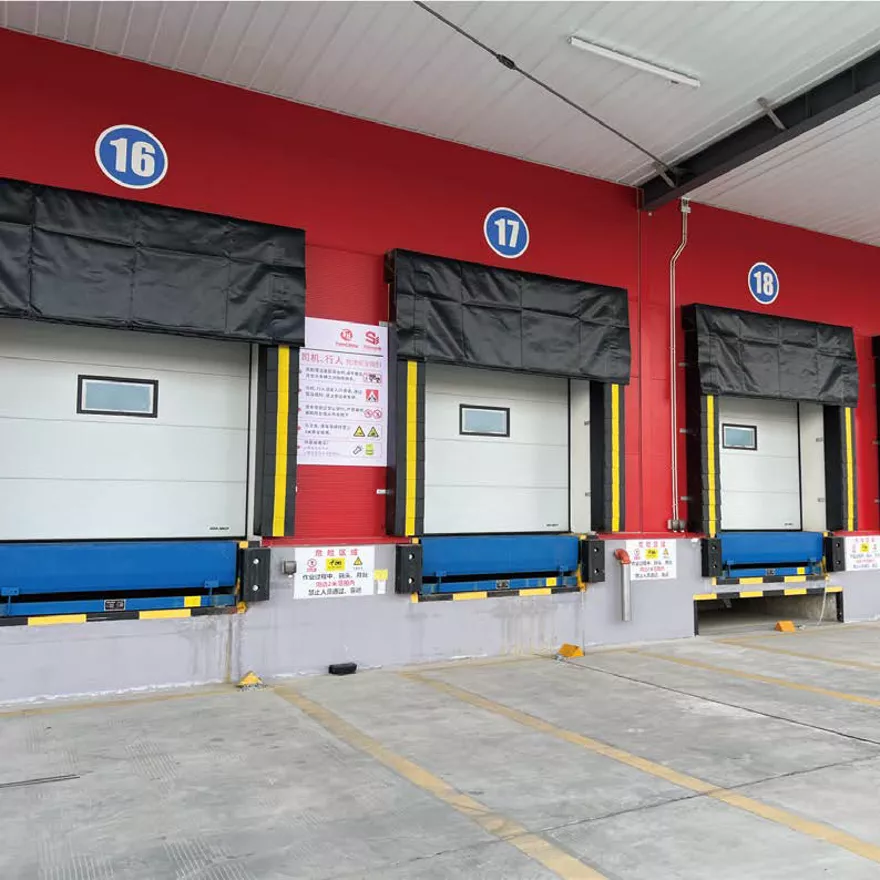

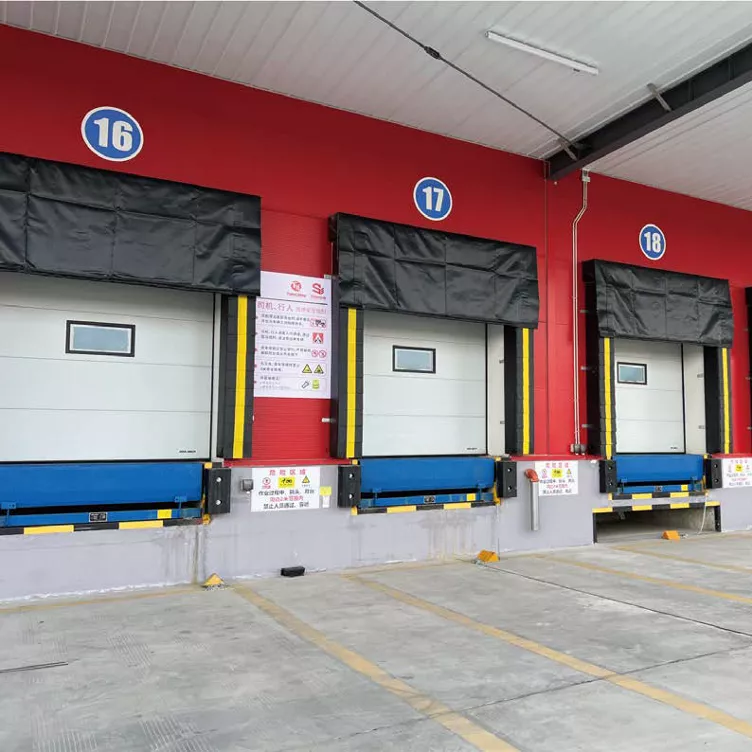

The KAD-ASSA ABLOY DS6160C Dock Cushion Shelter features a three-sided cushion design made of high-strength single-layer polyester fabric and filled with premium high-density foam, providing excellent sealing performance and outstanding durability. Wear-resistant pads are installed in high-contact areas to extend product lifespan, while the yellow parking guides integrated into the side cushions assist drivers in achieving accurate and safe vehicle docking.

Optimized for transport fleets with similar vehicle dimensions, the DS6160C is widely used in standard warehouses, cold chain logistics facilities, and various industrial environments. Combining cost-effectiveness, superior sealing performance, and excellent thermal insulation, it helps improve loading dock efficiency while reducing energy consumption, making it an ideal docking solution for modern logistics operations.

The DS6160C Dock Cushion Shelter offers a wide range of configuration options, providing exceptional application flexibility. It is designed to accommodate various vehicle types and adapt seamlessly to diverse logistics facility environments, ensuring optimal performance across a broad range of loading dock applications.

Technical Data
Standard Height DH*	2,000 / 2,400 / 2,800 / 3,000 mm
Standard Width DH*	1,800 / 2,000 / 2,200 / 2,400 / 2,500 mm
Cushion Width*	300 mm
Cushion Depth*	250 mm
Parking Guide Marking	Yellow
Applicable Wall Structures	Steel Structure, Concrete, Lightweight Block, Insulated Panel
Side Trapezoidal Cushion	Optional
Top Curtain	Optional (600 / 900 / 1,200 mm)
Wear Protection Plate	Standard
Foam Compression Ratio	50%

* For heights, widths, or additional specifications not listed above, please contact our technical sales representative.
