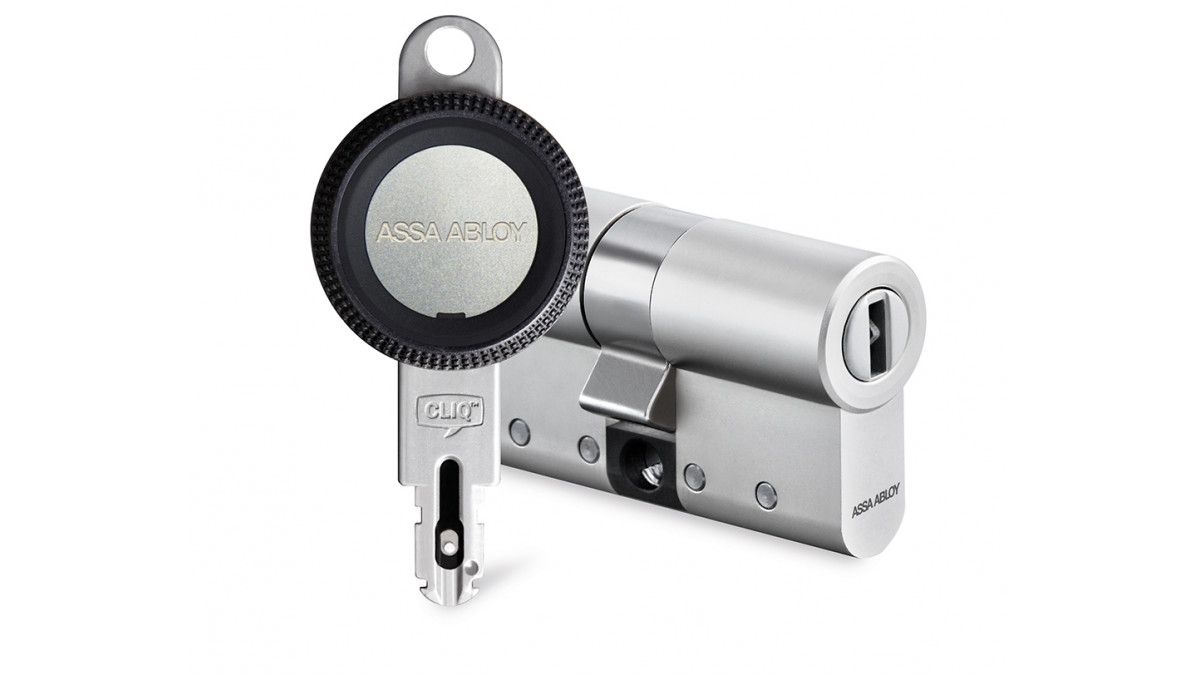

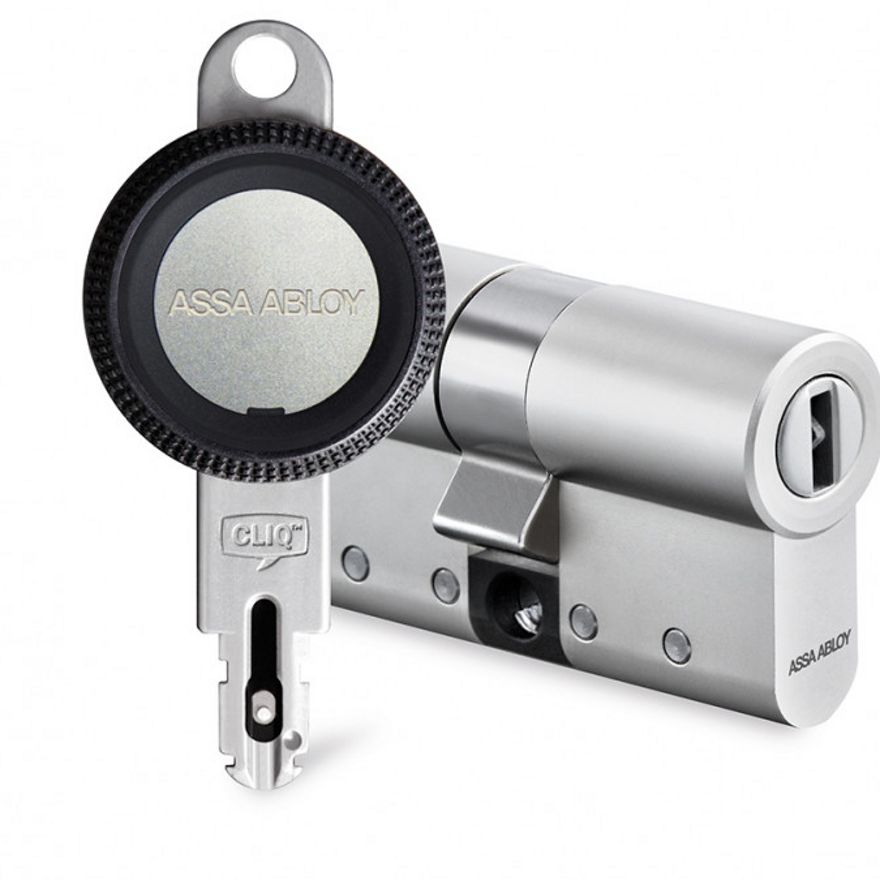

eCliq Solution

CLIQ® technology

Unique and locking system coding
Combination of electronic and rotationally-secured cylinder halves possible
Adaptable housing kit
Optional enhanced drilling protection
Optional comfort function for bilateral opening
Free rotation angles (optional)
Integrated chip to store access authorisations and events log
Memory locations for 1,000 individual keys or groups (up to 65,000 keys per group)
Locking function for 1,500 keys
Event memory for the last 750 locking actions (with CLIQ® Go for the last 50 locking actions)
Operational temperature range: between -25°C and +85°C
Maintenance-free for up to 200,000 cycles
DIN EN 15684:2021-05 (optional)
VdS approval, class BZ+ according to VdS 2156-2 (optional)
Splash-proof IP54
Optionally with dust and rain protection cap IP55
Optionally available for use in potentially-explosive atmospheres in Zone 1

Reversible key: always fits, no matter which way it is inserted into the cylinder
Optical and acoustic signalling for access entitlements, time zone and battery status
Optional different colouring of the battery cover
Optionally with RFID chip integrated in the battery cover
Optional user keys with BLE functionality
Temperature range 0° C to +70° C
Protected against temporary immersion in water (IP67)
Power supply via commercially-available lithium battery (CR2450)
For 100,000 locking operations (service life of about 10 years)
Optionally without battery with generator in the key
Optionally available for use in potentially-explosive atmospheres in Zone 1
