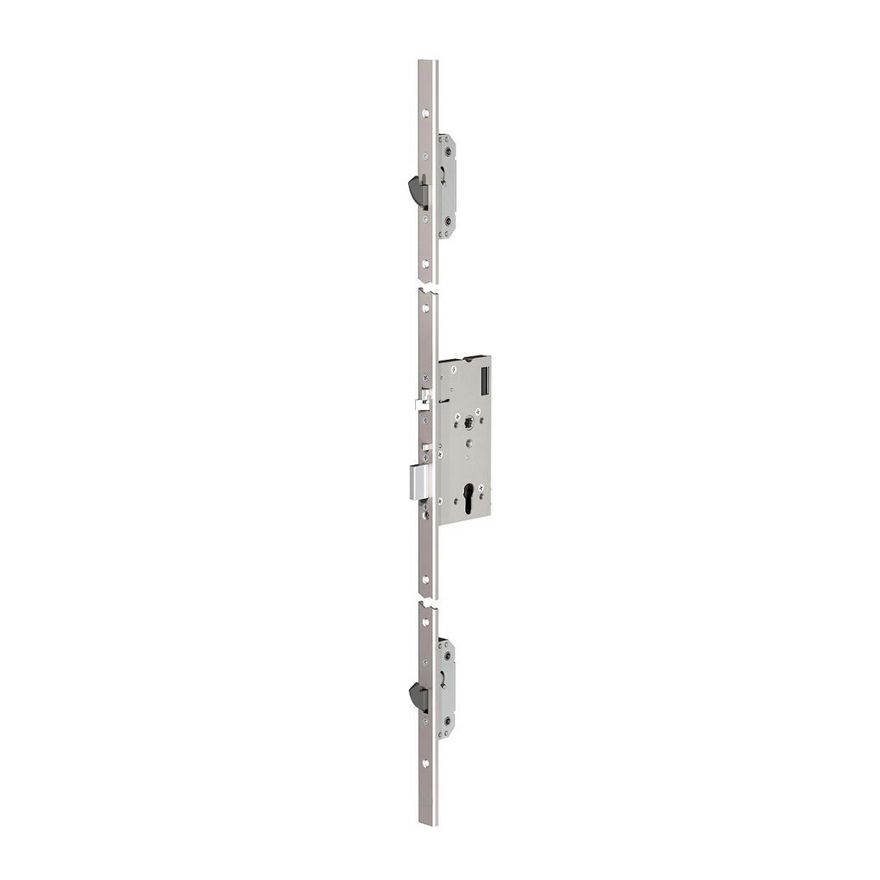

MP520 - Motorised multipoint locks

The MP520 high-security multipoint motorised mortise locks are designed for installation on externalsolid wooden door. They work with access control systems or devices such as timers, keypads or buttons and can also be used on automatic doors.

All locking points (central, lower and upper) are connected by a single forend, which can be flat or U-shaped.

The central mechanism is equipped with a symmetrical latch and an automatic re-arming deadbolt, which always ensures that the lock is locked at two points. The additional locking points are equipped with hook bolts and work in combination with the central mechanism.

The door is unlocked automatically and does not require the handle to be operated. They are recommended for doors subject to high user traffic, specifically for public buildings.

They have a daytime mode (in which the lock remains unlocked at all times) and a night-time security mode (in which the lock locks automatically when the door is closed). Mechanical opening via a handle and cylinder on the inside is always possible, making this lock suitable for emergency exits.

They enable advanced monitoring functions and have security features such as back-up in the event of a power failure and anti-tampering.

The double-action symmetrical latch allows use on right and left-hand doors. They are available with a 55 to 100 mm backset.
