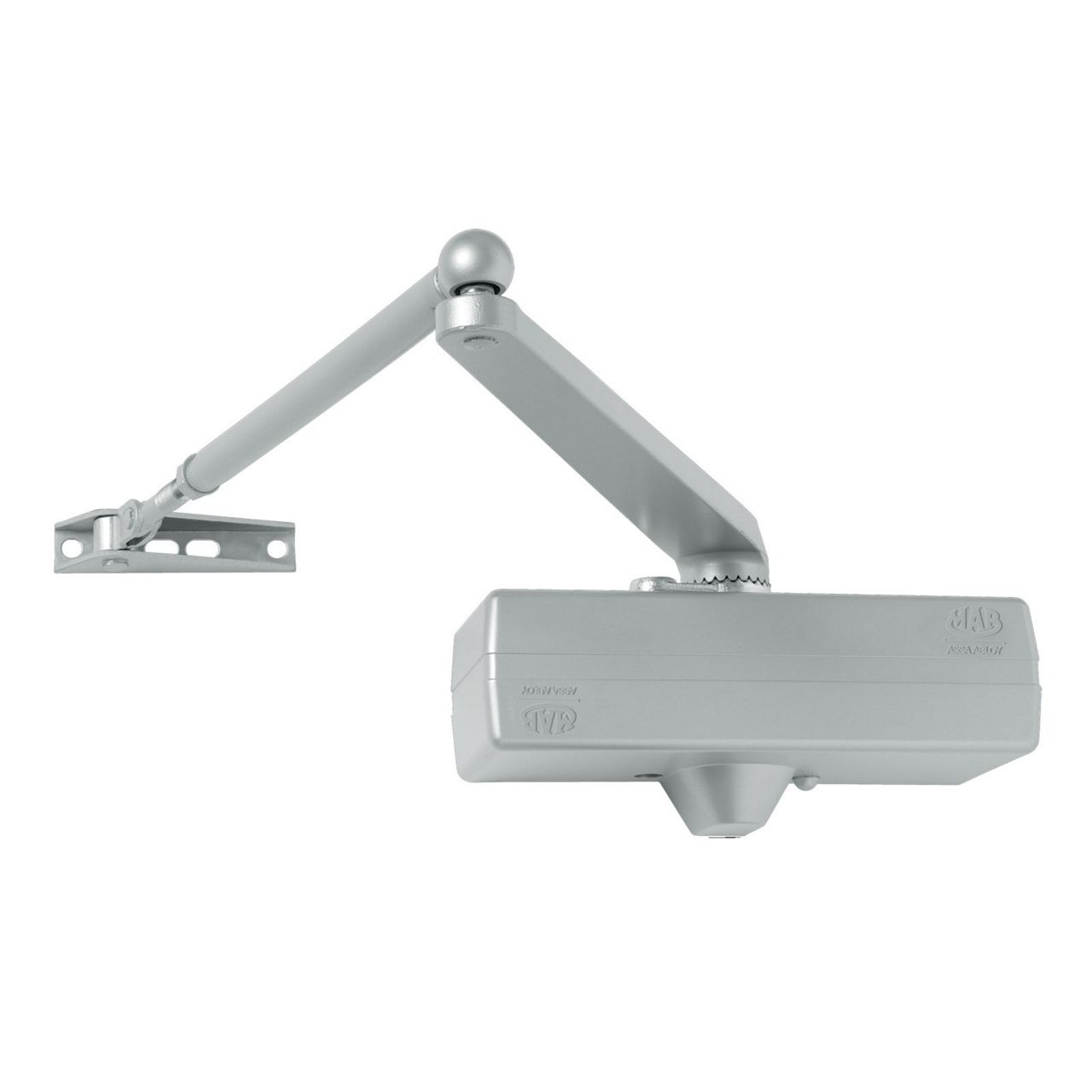

564 Series

The 564 Series is a unique overhead door closer with rack-and-pinion technology and integrated hold open device.

It has a universal design for regular mounting (pull side) or reversed mounting (push side) and variable closing force sizes 2/3/4/5 accoding to EN 1154 standards.

It is suitable for 850-1250 mm wide door leafs.

The integrated hold open device is easily adjustable precisely to the desired angle. It is not suitable for fire-rated doors.

Equipped with thermostatic valve for indipendent hydraulic control of closing speed. The final latch angle is easily reduced by turning the forearm, up to its elimination (soft closing). The possibility to ensure a powerful latch also from an arc of just a few degrees guarantees reduced noisy action in case of hard-to-latch locks.

Finishes: White RAL 9016 - Brown RAL 8019 - Silver RAL 9006 - Black RAL 9004 - Beige RAL 1015. Other finishes may be available on request.
