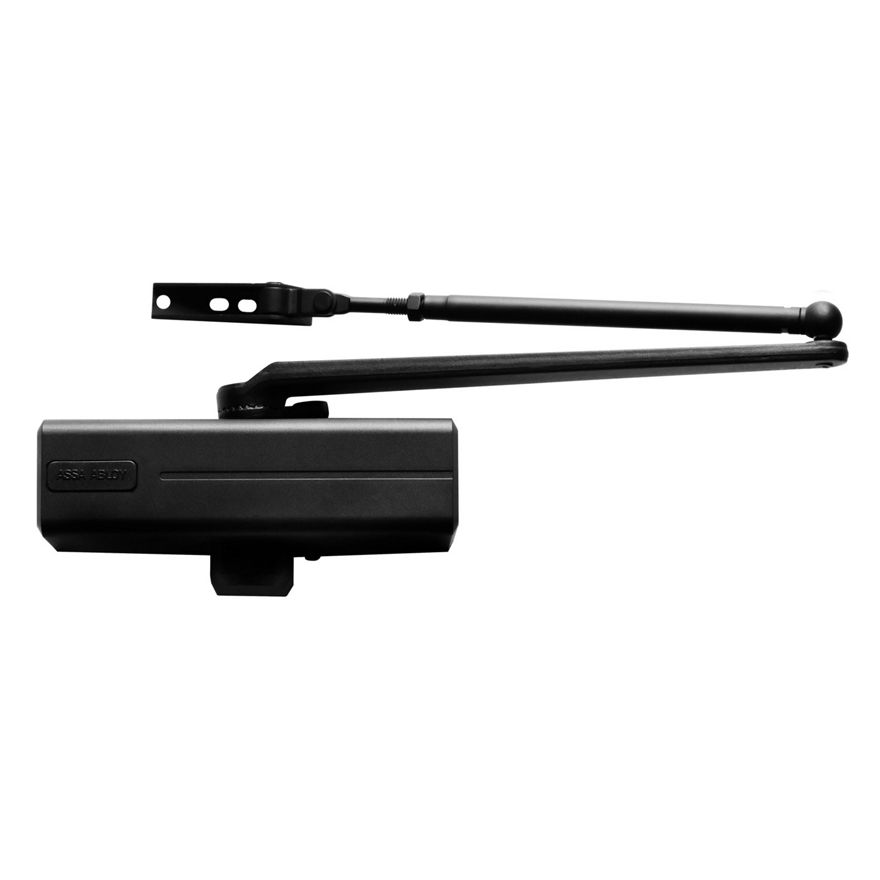

DC564 Plus

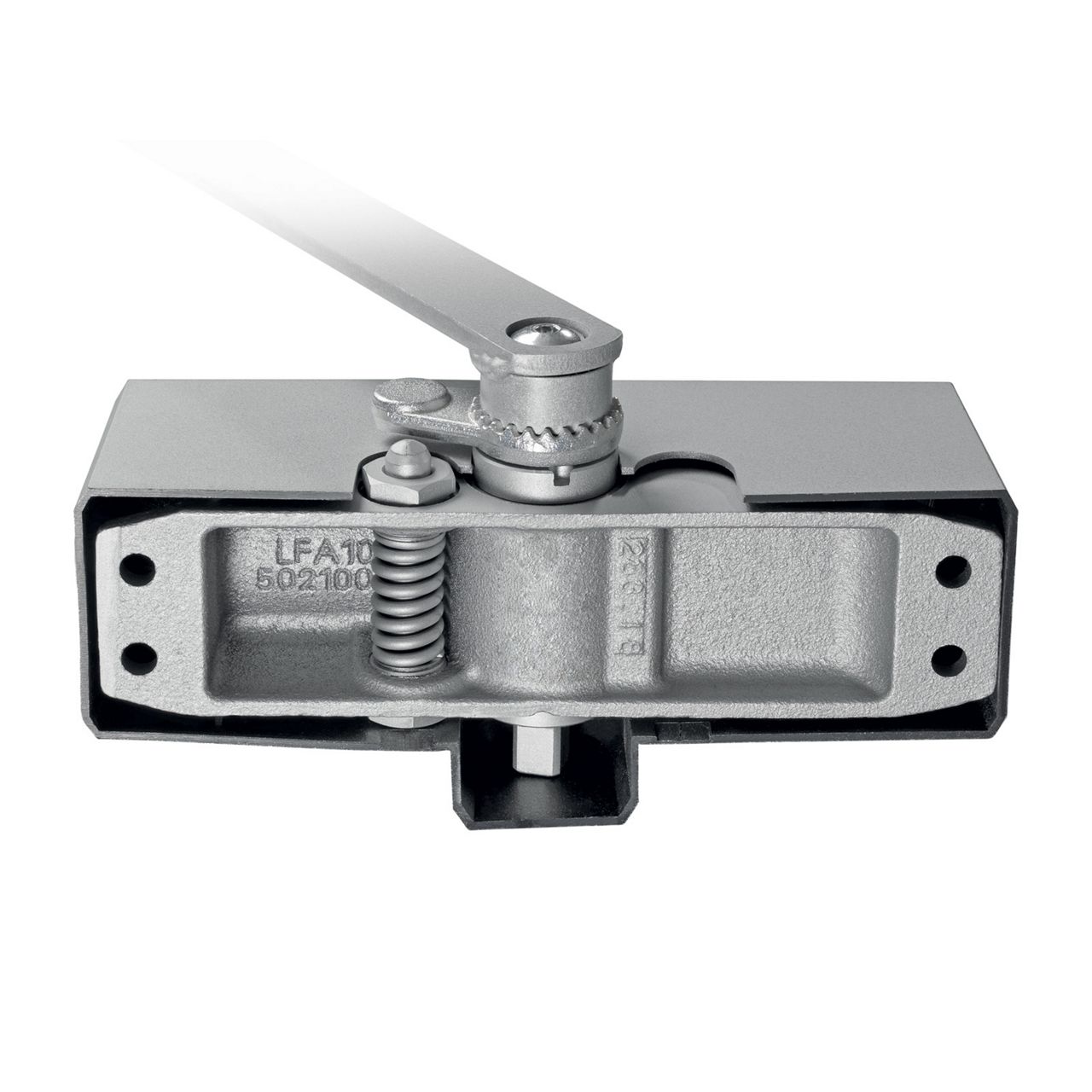

The DC564 Plus is a unique overhead door closer with rack-and-pinion technology and integrated hold open device. It is designed to be fitted to a standard link arm and is suitable for hinged doors measuring between 850 and 1250 mm.

It has a variable closing force sizes 2/3/4/5 accoding to EN 1154 standards.

The integrated hold open device is easily adjustable precisely to the desired angle. It is not suitable for fire-rated doors.

Equipped with thermostatic valves for indipendent hydraulic control of closing speed and final latch.

Finishes: Silver EV1 - White RAL 9016 - Bronze RAL 7008 - Black RAL 9004 - Gold RAL 1004. Other finishes may be available on request.

Finishes

  • Silver EV1

  • White (RAL 9016)

  • Bronze (RAL 7008)

  • Black (RAL 9004)

  • Gold (RAL 1004)
