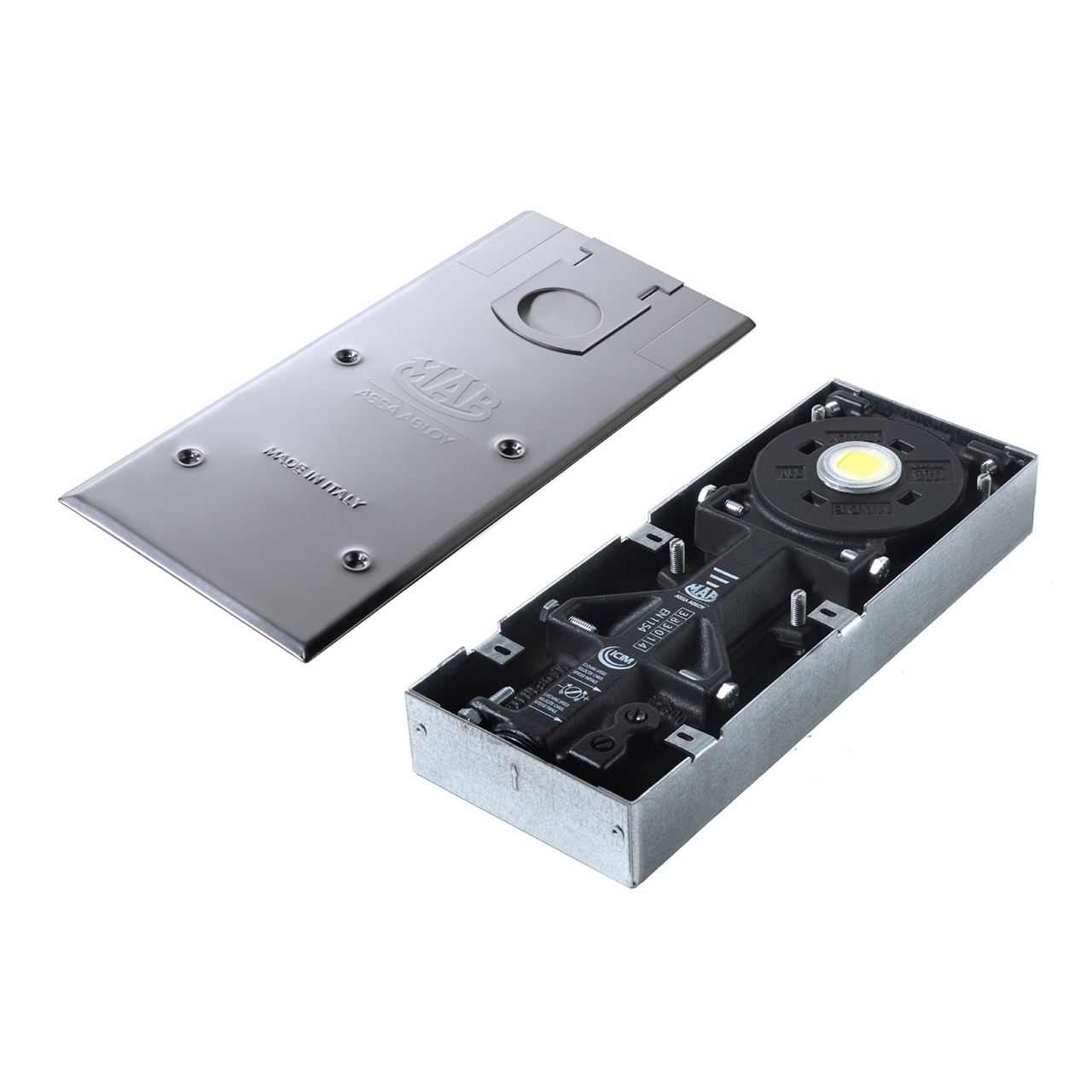

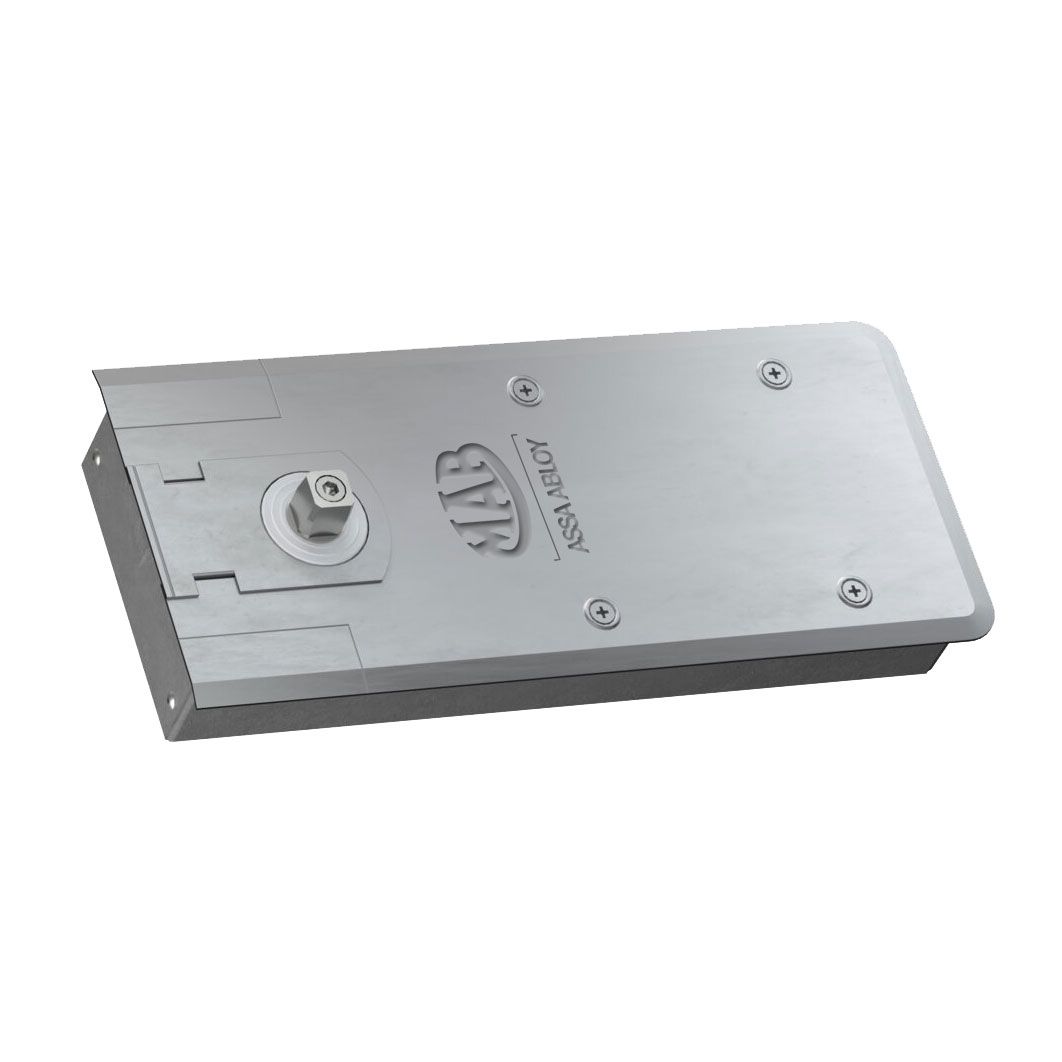

7600 Series

The 7600 Series is a floor spring with Cam-Motion® technology certified for fire-rated doors up to 120 Kg and CE marked.

Fixed closing force 3/4 accoding to EN 1154 standards. It has a universal design for left and right doors and for single and double leaf doors. It is suitable for internal and external doors.

The cement box is only 40 mm height, to suit thin slabs. It could be easily adjusted in all directions within the cement box thanks to a single template.

Soft closing or powerful latching action to ensure proper closing also in case of hard-to-latch locks. Closing speed and final latch are controlled by two easily adjustable independent non critical valves. Pivot point can be adjusted too without re-locating the cement box.

It is also equipped with an overpressure valve relief and it has two different interchangeable spindles (Italian and German).

Coverplates finishes: Polished stainless steel, Satin stainless steel, Polished brass
