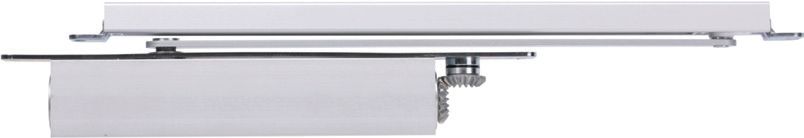

Concealed door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator for double leaf doors

Product Description

• Concealed door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator for double leaf doors
• Guide rail is certified in compliance with EN 1158, size
• 3-6 Closer is certified in compliance with EN1154, size 1-5
• Fulfils barrier-free building requirements (EA / CEN TR 15894)

Overview of Advantage:

• Concealed guide rail with integrated mechanical door coordinator based on wedge system Closing speed and latching speed adjustable from top facing regulating valves
• Built-in backcheck
• Thermodynamic valves for consistent performance Versions with 4 mm and 8 mm spindle extensions Large range of applications
• Standard colours: silver EV1
• Customised finishes available on request

Note

• Concealed guide rail G881
• Facts for door closer see DC860
• Additional verification of suitability required for the respective fire or smoke protection door

Accessories/Individual parts

• Carry bar A101 DCA101---------
• Carry bar A102 DCA102---------
• Hold-open device A114for double doors (NOT applicable with fire doors) DCA114---------
• Smoke detector A177Silver EV1 DCA177---------
• Opening damper A191 DCA191---------
• Mounting plate A162For Door Closer Models DC840/DC860, galvanised DCA162-40
